Inflatable Restraint Passenger Presence System (PPS) Sensor (X88 with HP2 or Z88 with HP2)

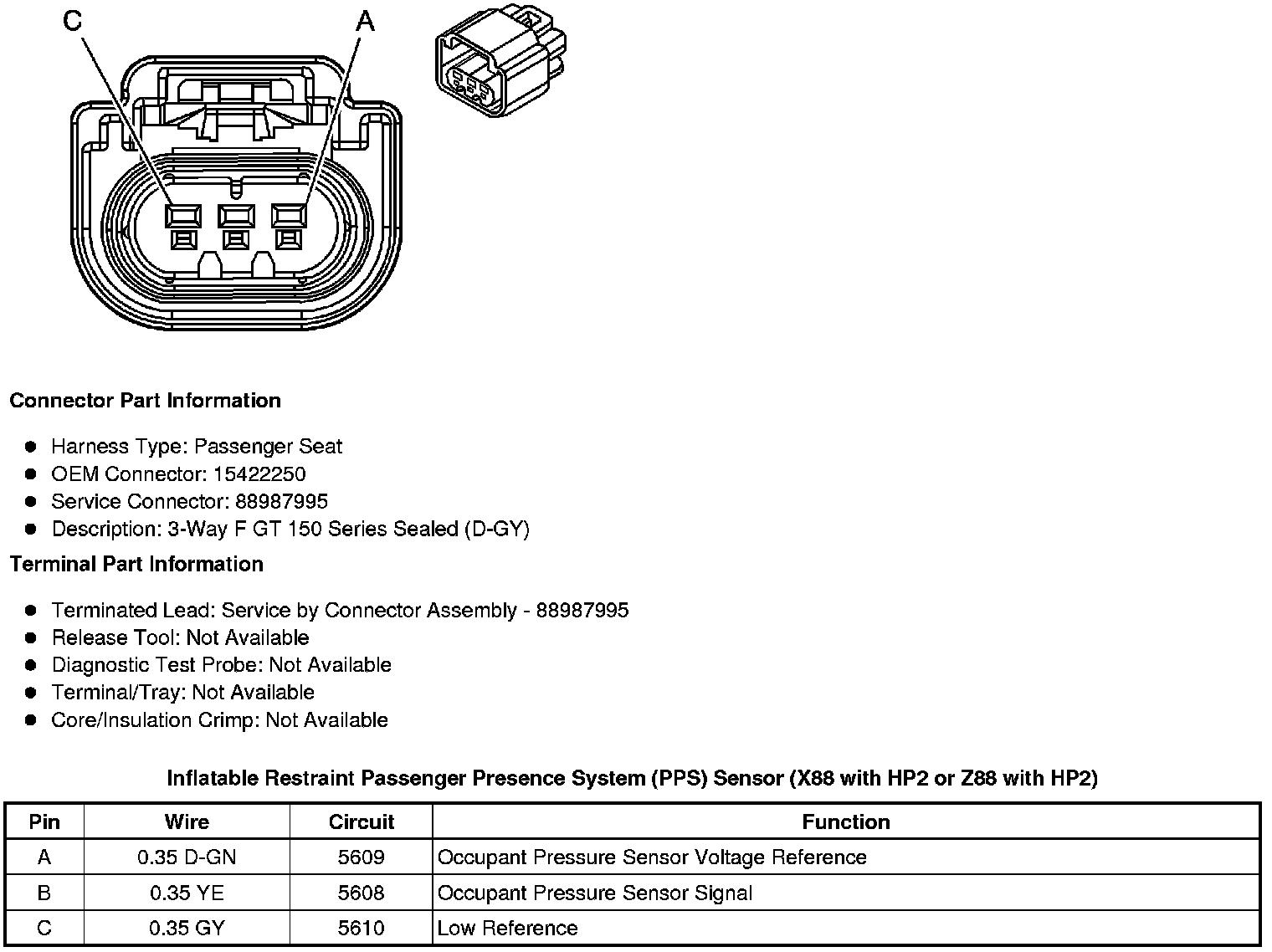

Component Connector End Views

Inflatable Restraint Passenger Presence System (PPS) Sensor (X88 with HP2 or Z88 with HP2)
