Side Marker Lamp - Left Front

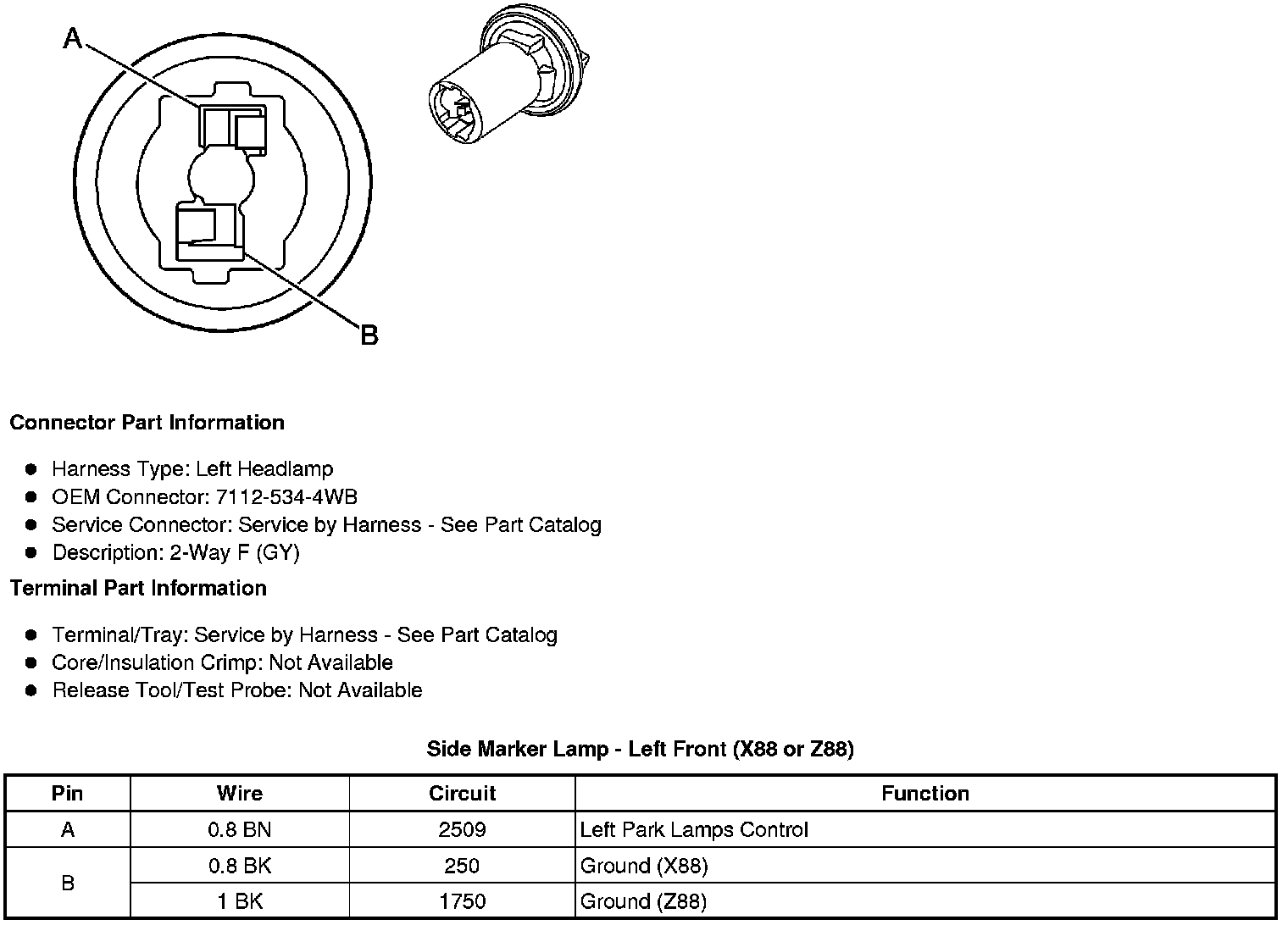

Component Connector End Views

Side Marker Lamp - Left Front (X88 or Z88)
