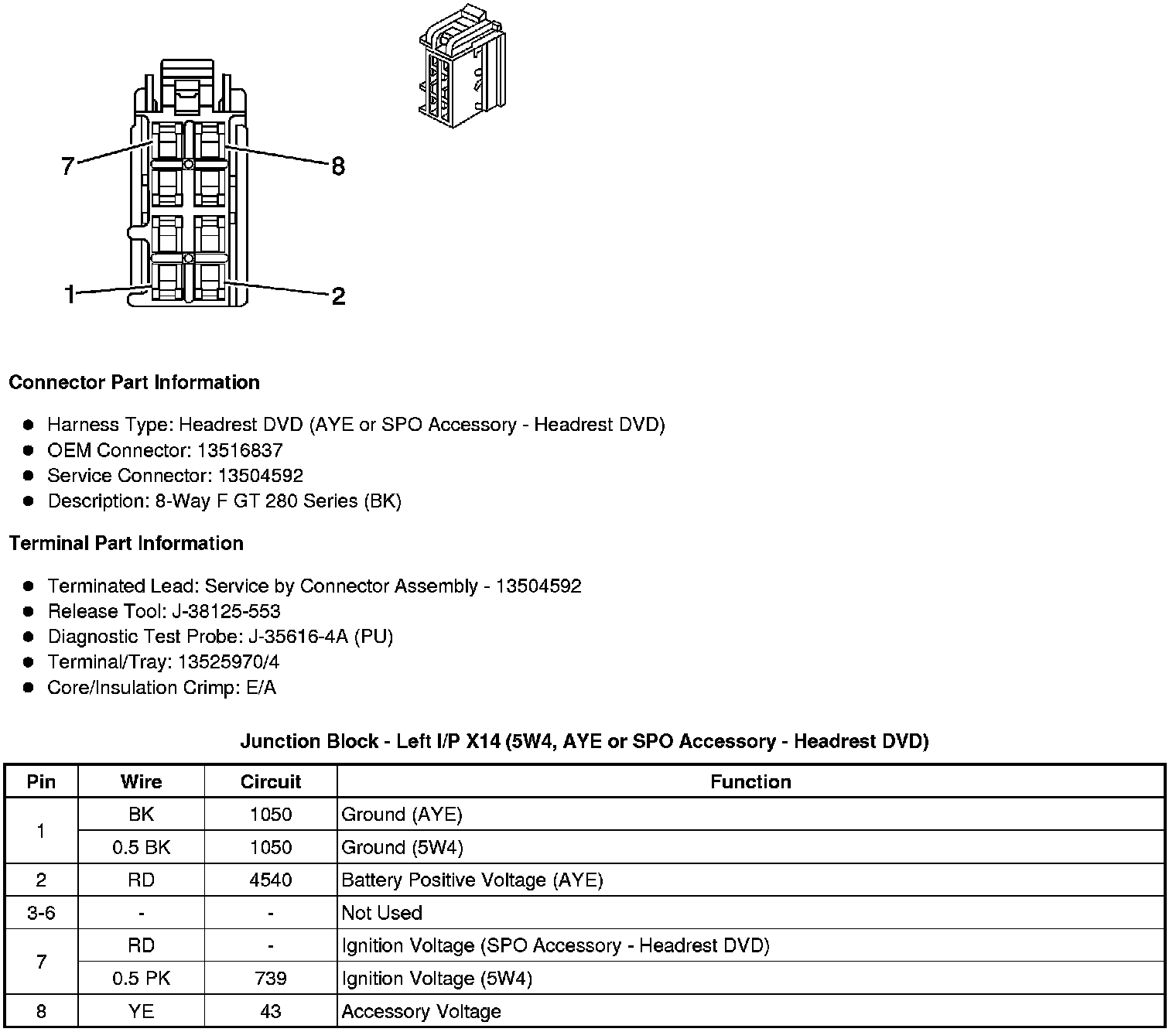

Junction Block - Left I/P X14 (5W4, AYE or SPO Accessory - Headrest DVD)

Electrical Center Identification Views

Junction Block - Left I/P X14 (5W4, AYE or SPO Accessory - Headrest DVD)
