X412 Right Rear Lamp Harness to Chassis Harness (Z75 with E52)

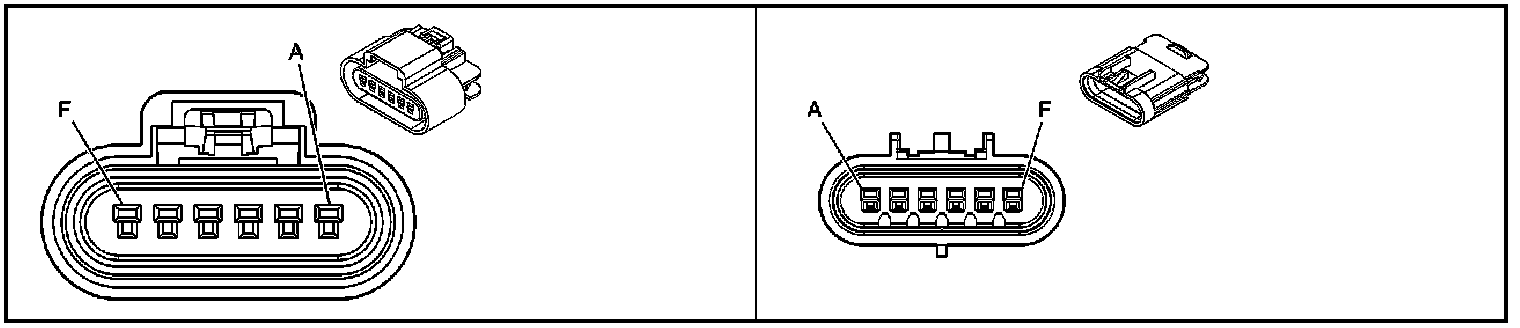

Inline Harness Connector End Views

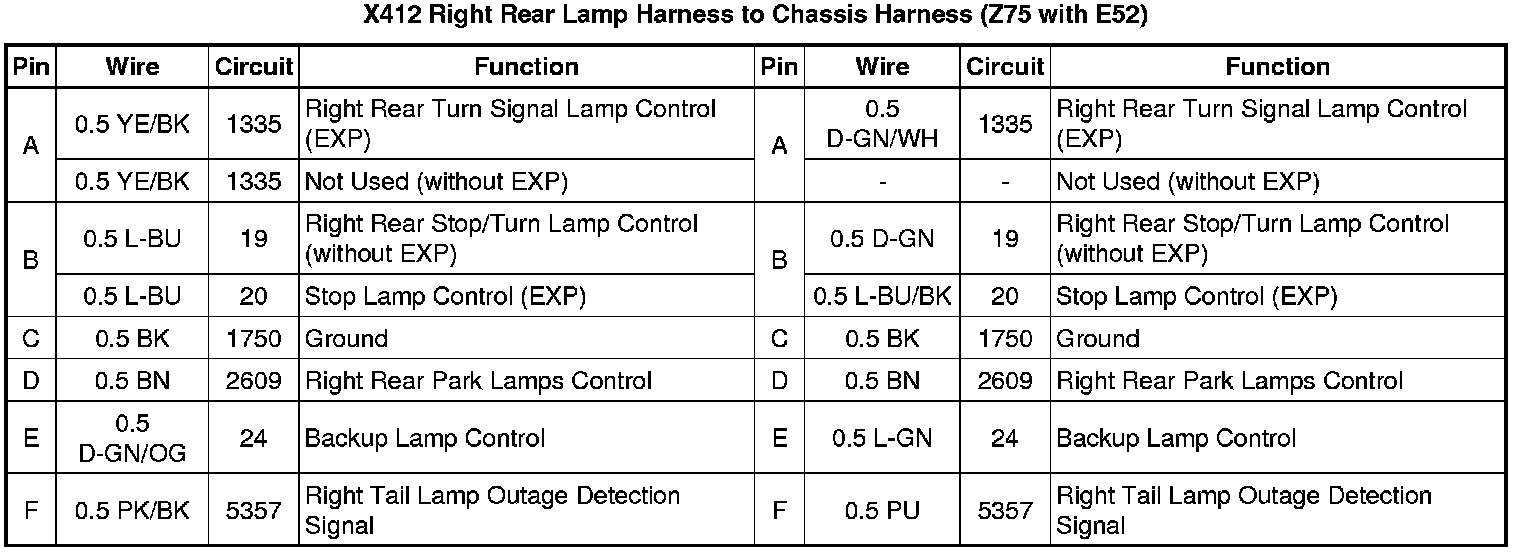

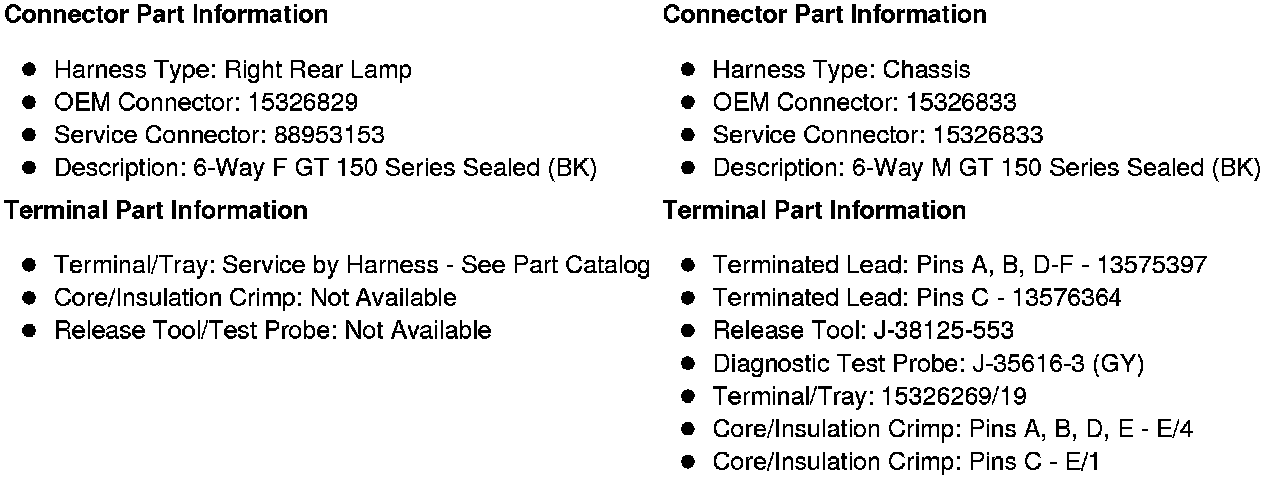

X412 Right Rear Lamp Harness to Chassis Harness (Z75 with E52)
