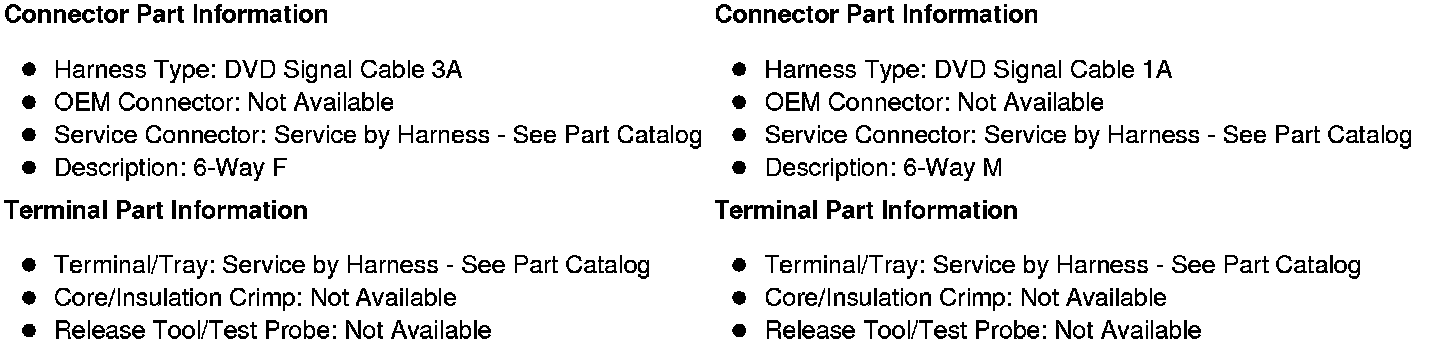

X371 DVD Signal Cable 3A to DVD Signal Cable 1A (SPO Accessory)

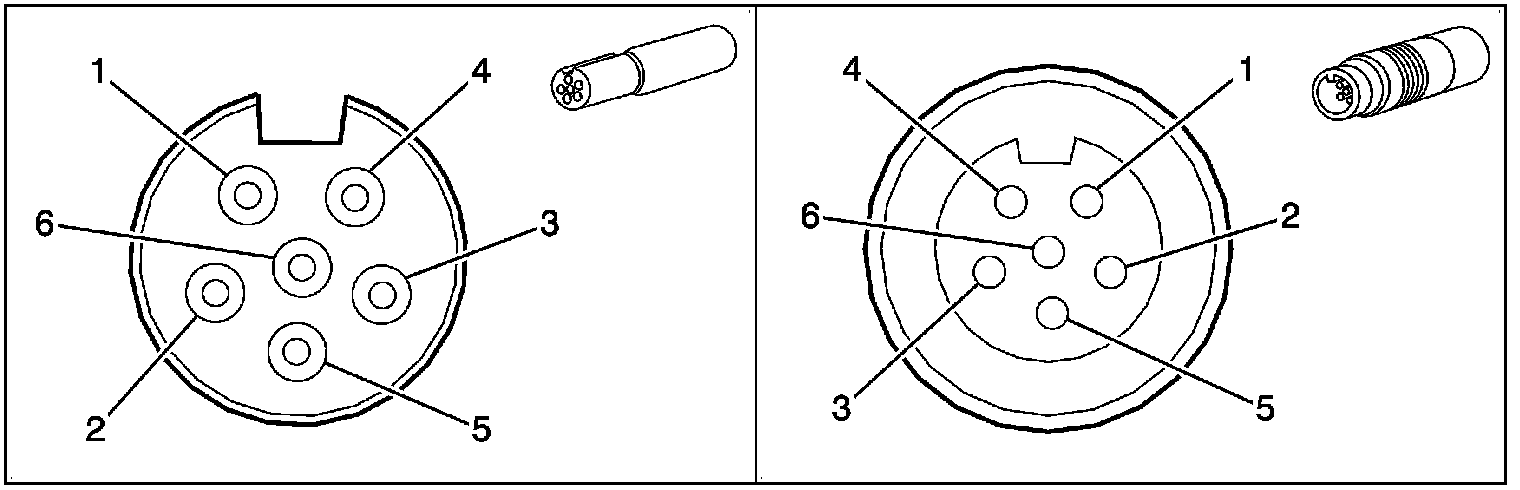

Inline Harness Connector End Views

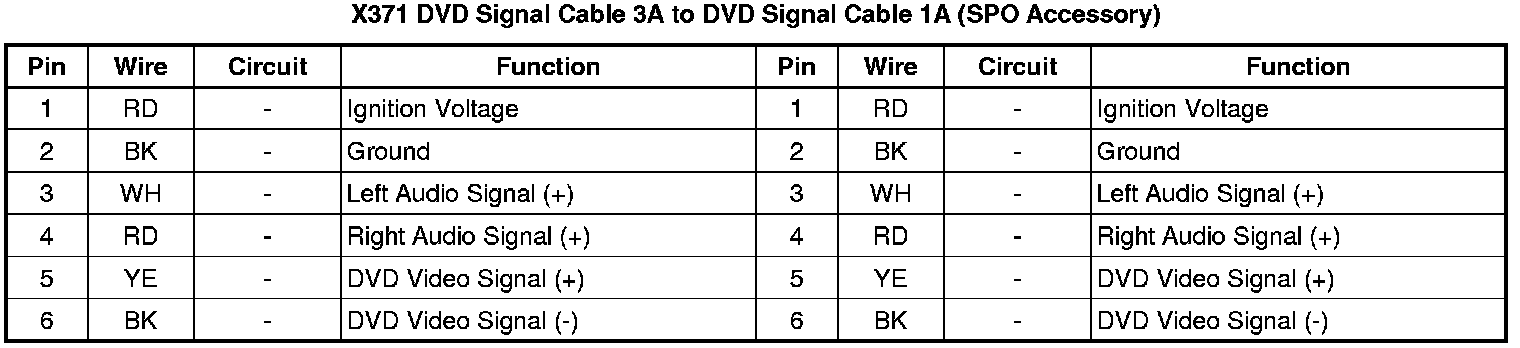

X371 DVD Signal Cable 3A to DVD Signal Cable 1A (SPO Accessory)
