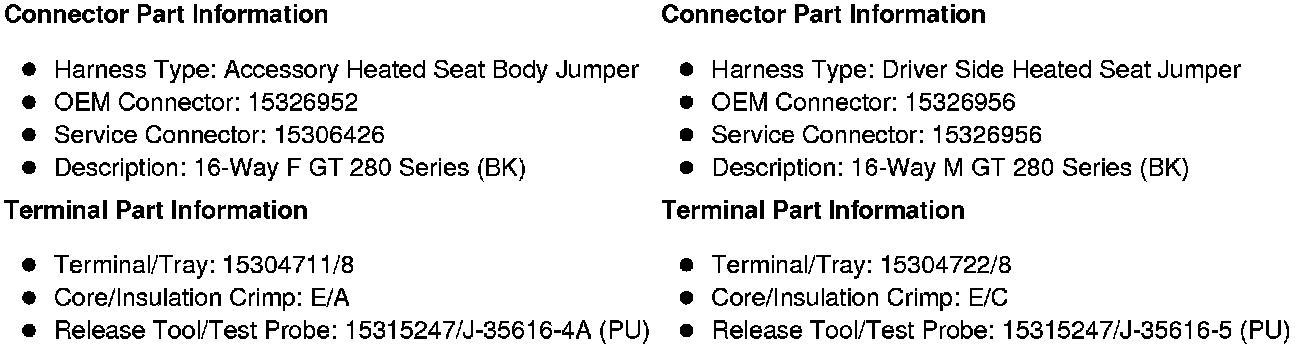

X330 Accessory Heated Seat Body Jumper to Driver Side Heated Seat Jumper (SPO Accessory - Heated Seats)

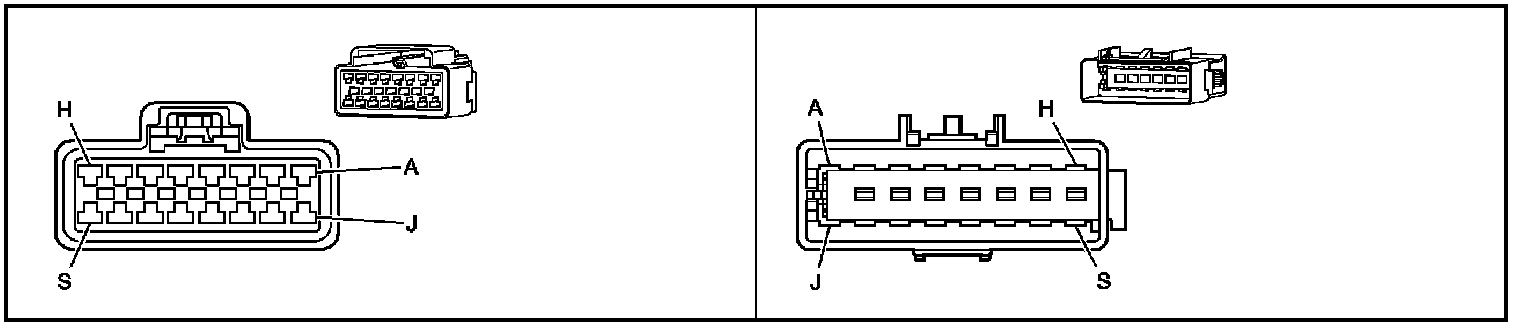

Inline Harness Connector End Views

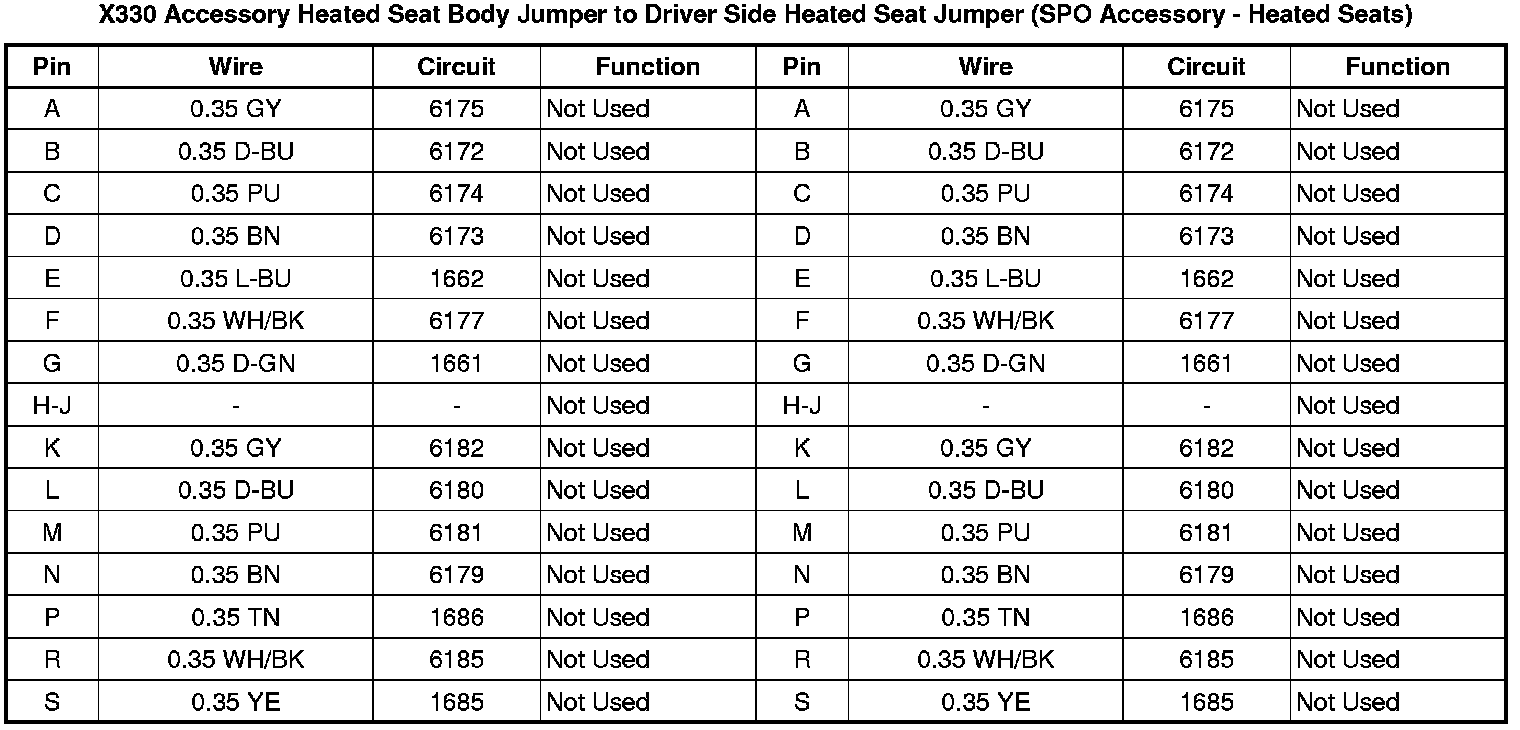

X330 Accessory Heated Seat Body Jumper to Driver Side Heated Seat Jumper (SPO Accessory - Heated Seats)
