X209 Body Harness to Instrument Panel Harness (STZ or Y91) or Instrument Panel Extension Harness (without STZ or Y91) (UVC)

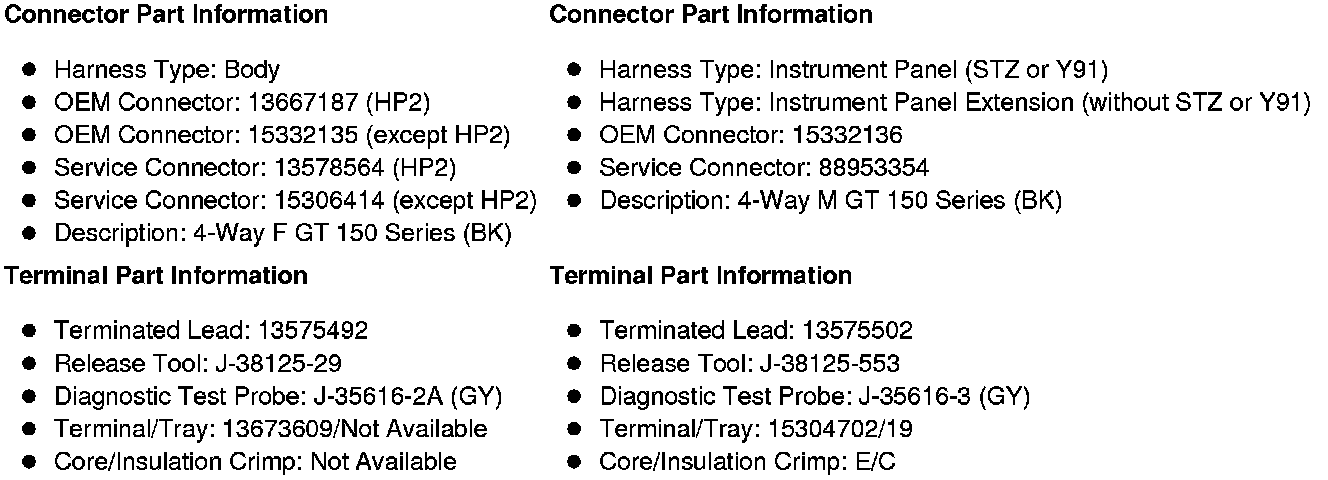

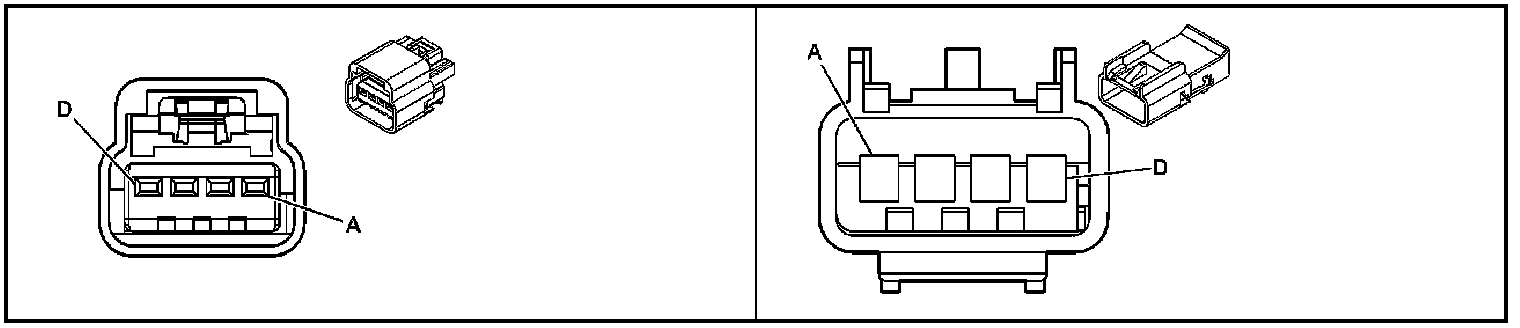

Inline Harness Connector End Views

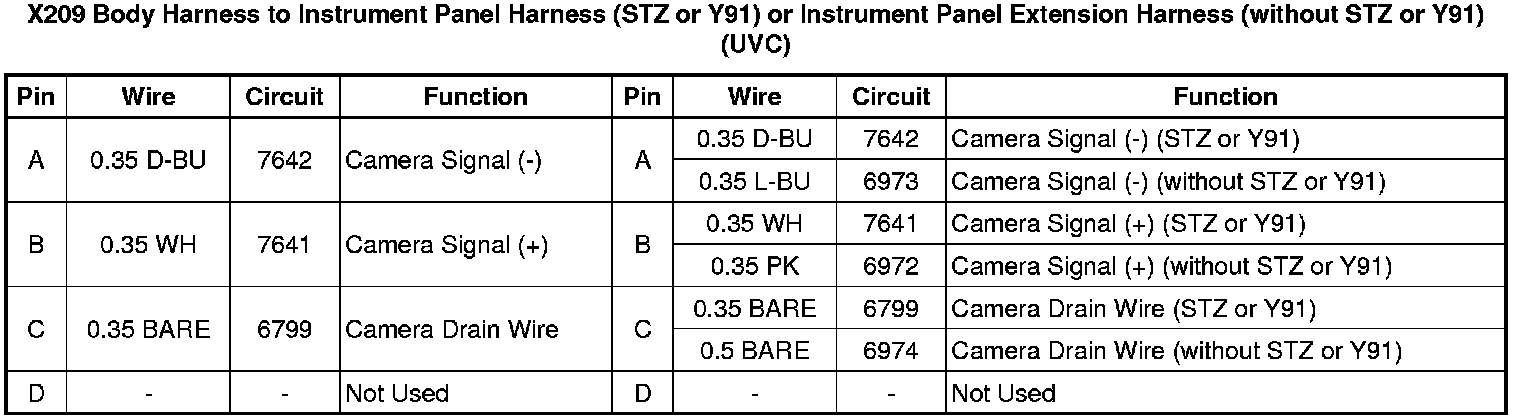

X209 Body Harness to Instrument Panel Harness (STZ or Y91) or Instrument Panel Extension Harness (without STZ or Y91) (UVC)
