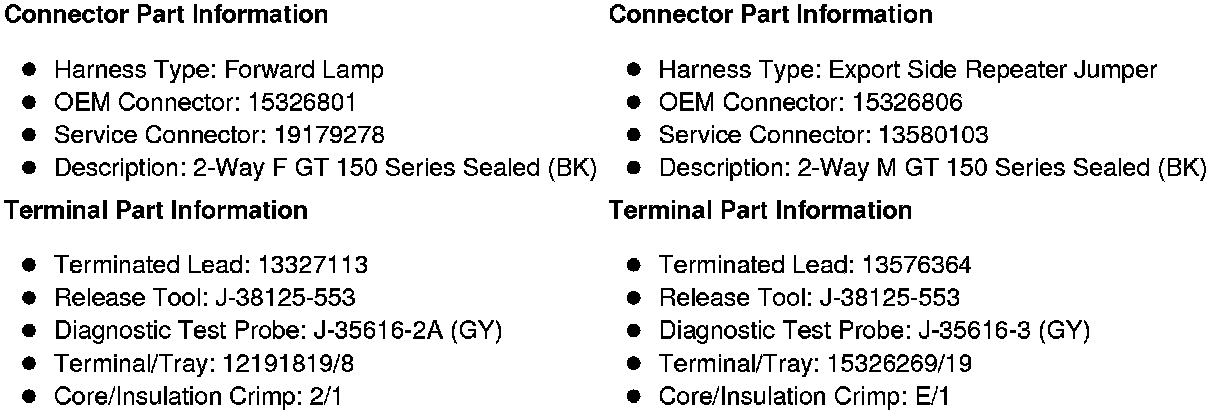

X118 Forward Lamp Harness to Export Side Repeater Jumper Harness (EXP)

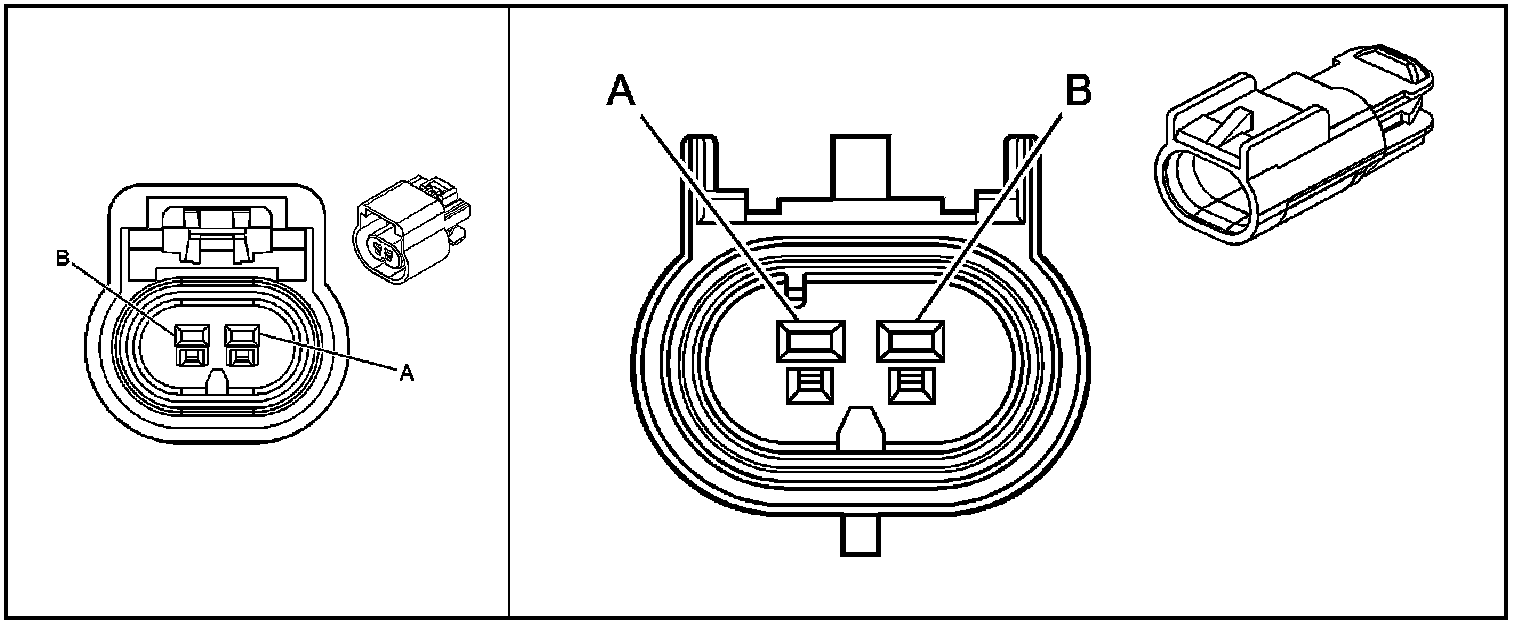

Inline Harness Connector End Views

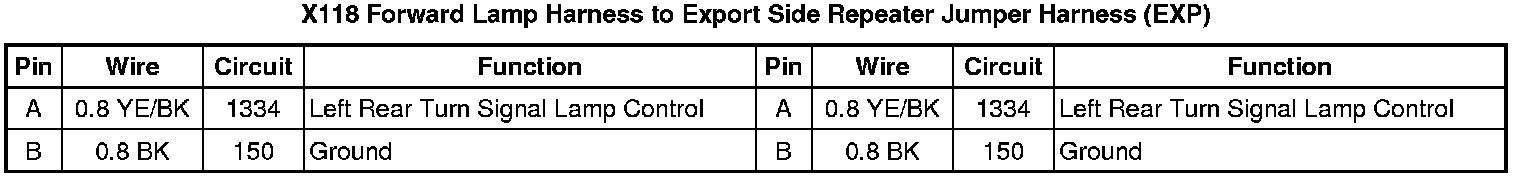

X118 Forward Lamp Harness to Export Side Repeater Jumper Harness (EXP)
