X108 Forward Lamp Harness to Forward Lamp Harness (VYU)

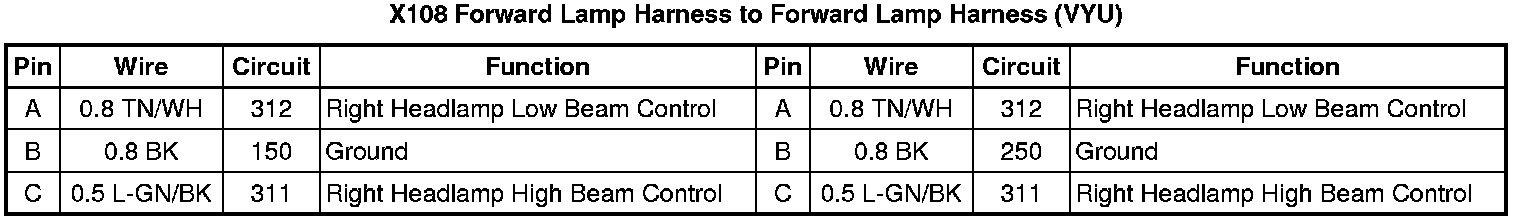

X108 Forward Lamp Harness to Forward Lamp Harness (VYU)

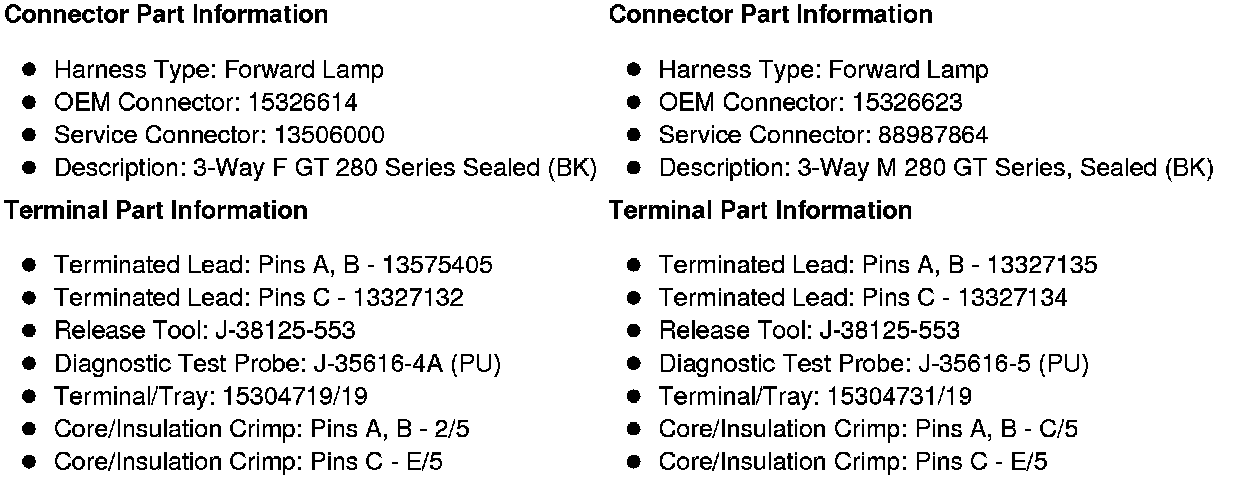

Inline Harness Connector End Views
X108 Forward Lamp Harness to Forward Lamp Harness (VYU)
