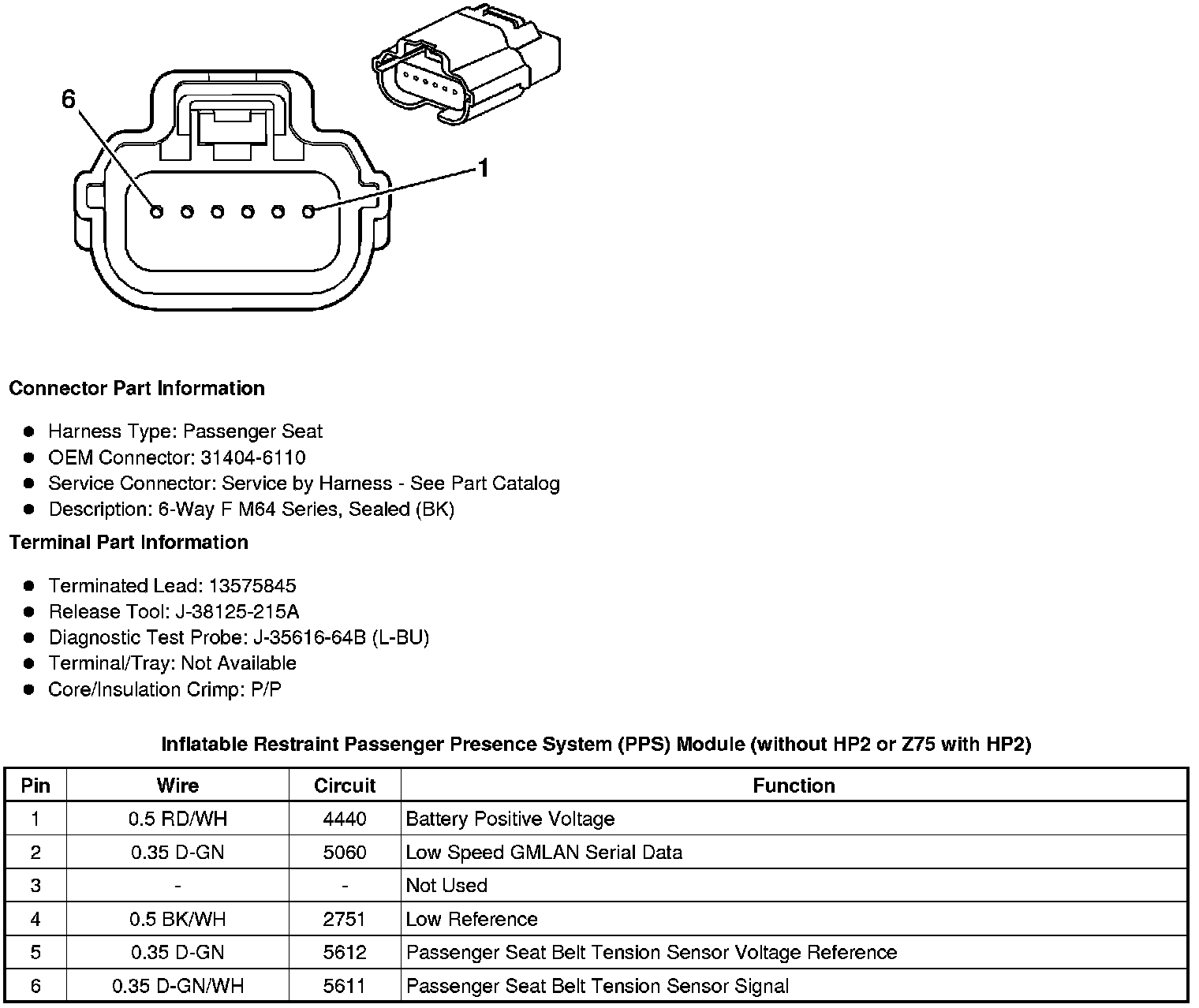

Inflatable Restraint Passenger Presence System (PPS) Module (without HP2 or Z75 with HP2)




Component Connector End Views

Inflatable Restraint Passenger Presence System (PPS) Module (without HP2 or Z75 with HP2)
