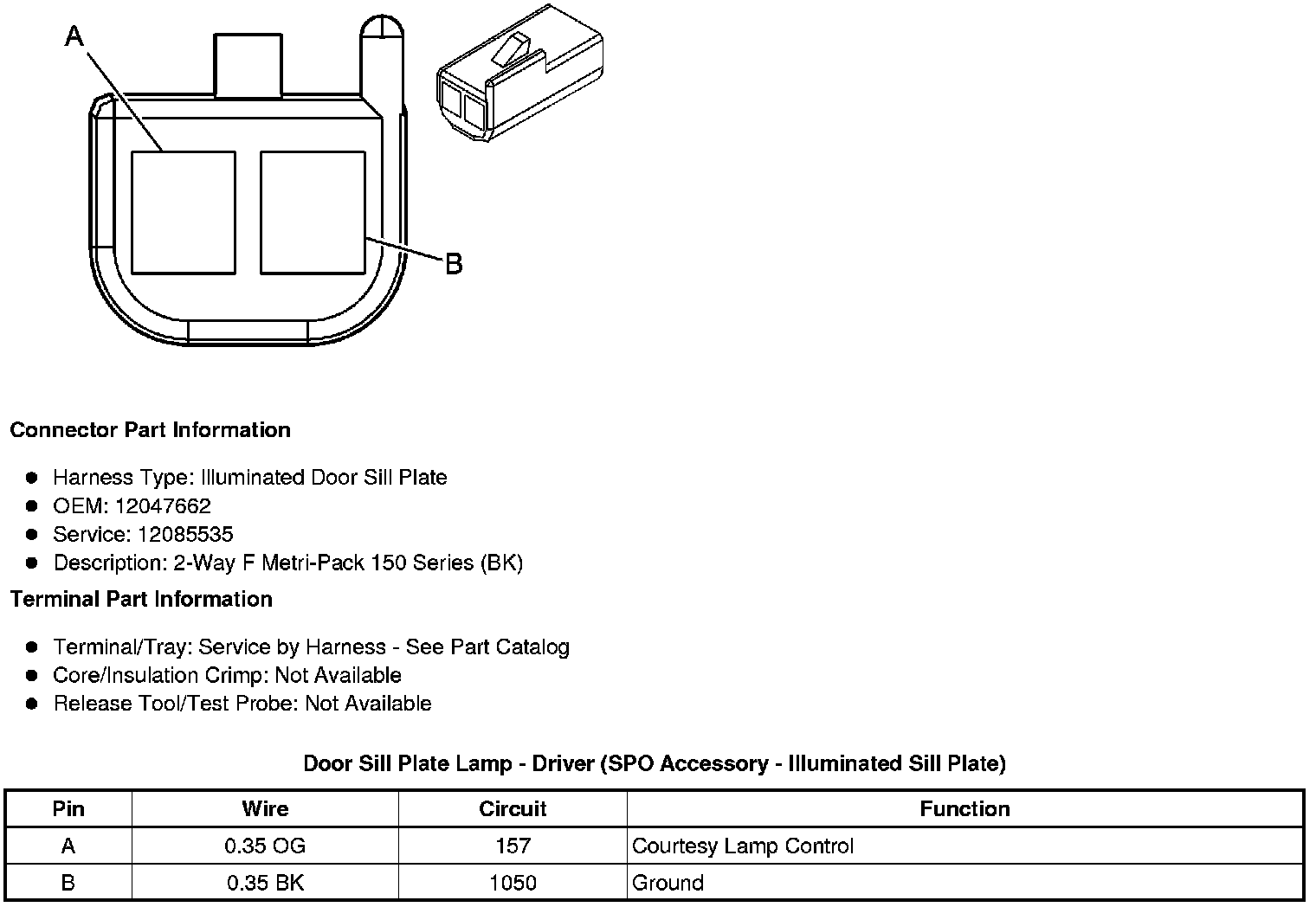

Door Sill Plate Lamp - Driver (SPO Accessory - Illuminated Sill Plate)




Component Connector End Views

Door Sill Plate Lamp - Driver (SPO Accessory - Illuminated Sill Plate)
