Cabin Temperature Sensor / Switch
>>
Air Temperature Sensor - Upper Auxiliary (C69 with CJ2)
Air Temperature Sensor - Upper Auxiliary (C69 with CJ2)

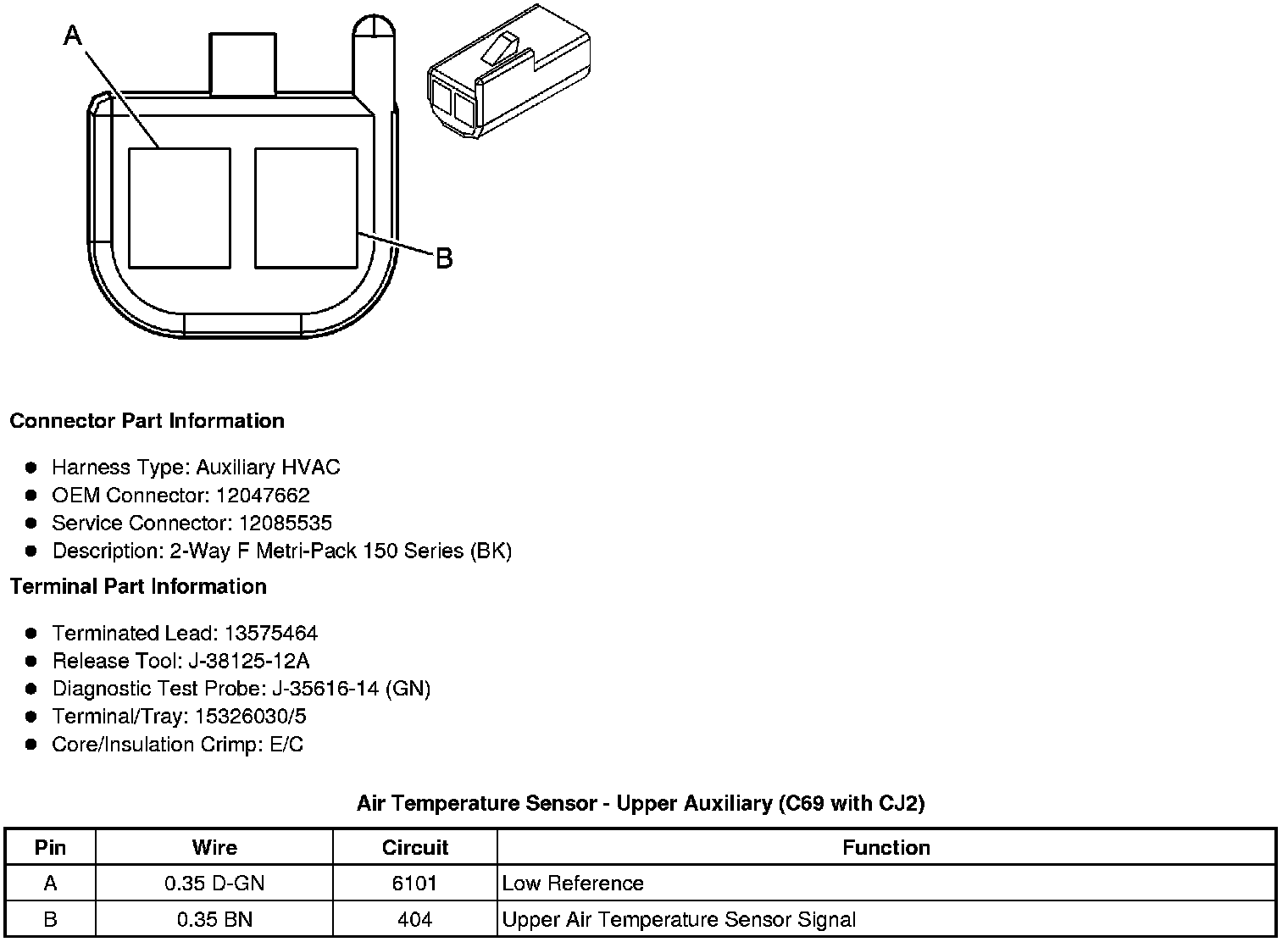

Component Connector End Views
Air Temperature Sensor - Upper Auxiliary (C69 with CJ2)
