Home >> GMC Truck >> 2011 >> Yukon XL 4WD V8-5.3L >> Repair and Diagnosis >> Body and Frame >> Seats >> Service and Repair >> Rear Seat 3rd Row Load Floor Latch Replacement

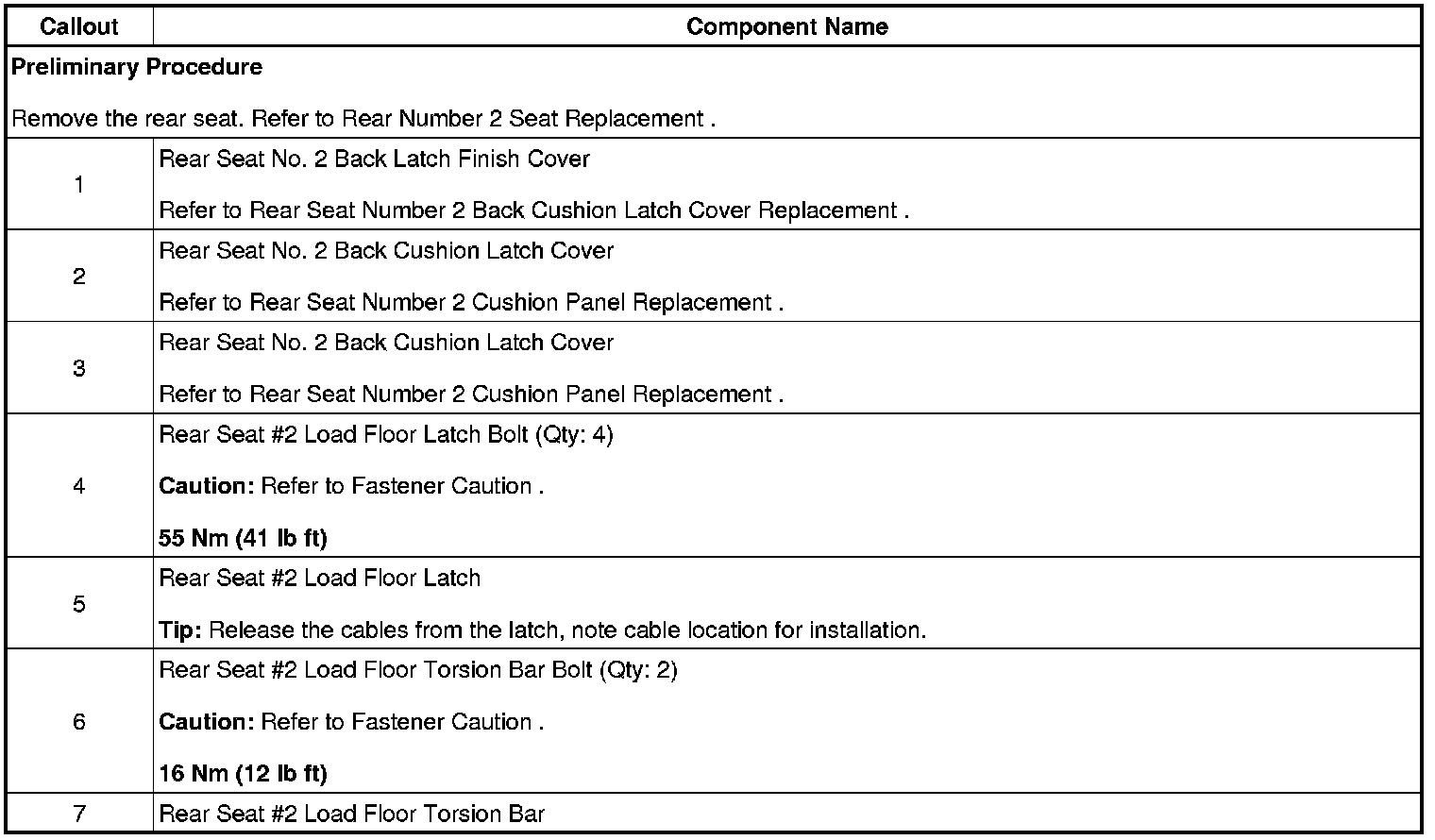

Rear Seat 3rd Row Load Floor Latch Replacement




Rear Seat 3rd Row Load Floor Latch Replacement
