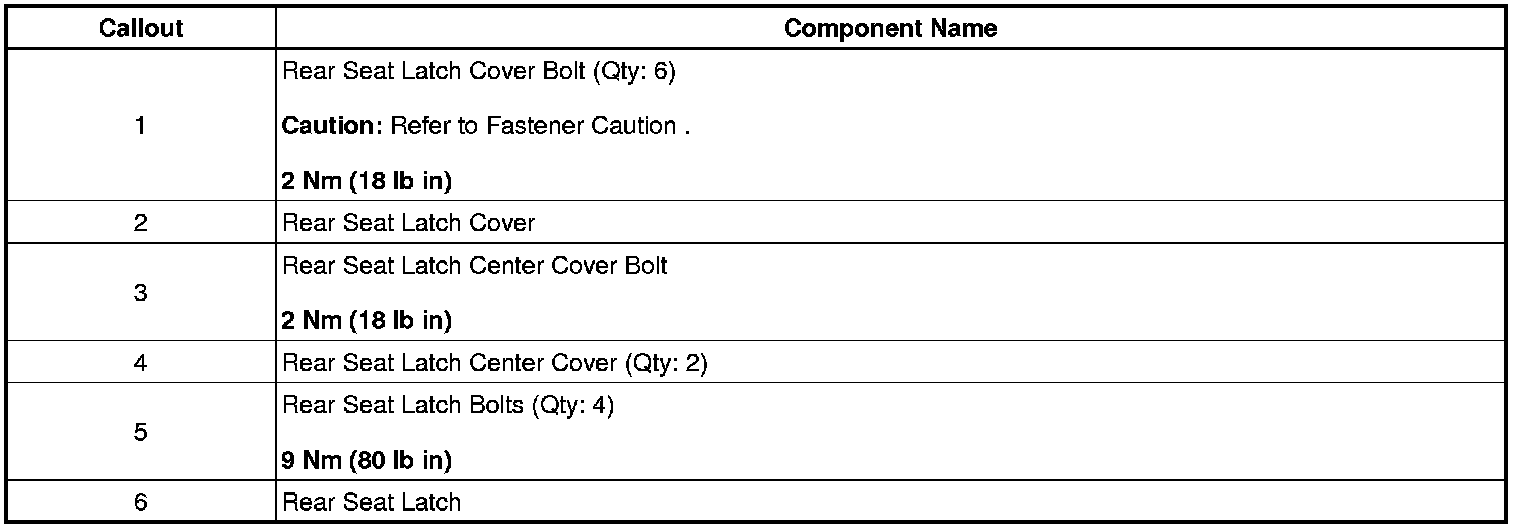

Rear Seat Cushion Latch Release Assembly Replacement
Rear Seat Cushion Latch Release Assembly Replacement
Rear Seat Cushion Latch Release Assembly Replacement
