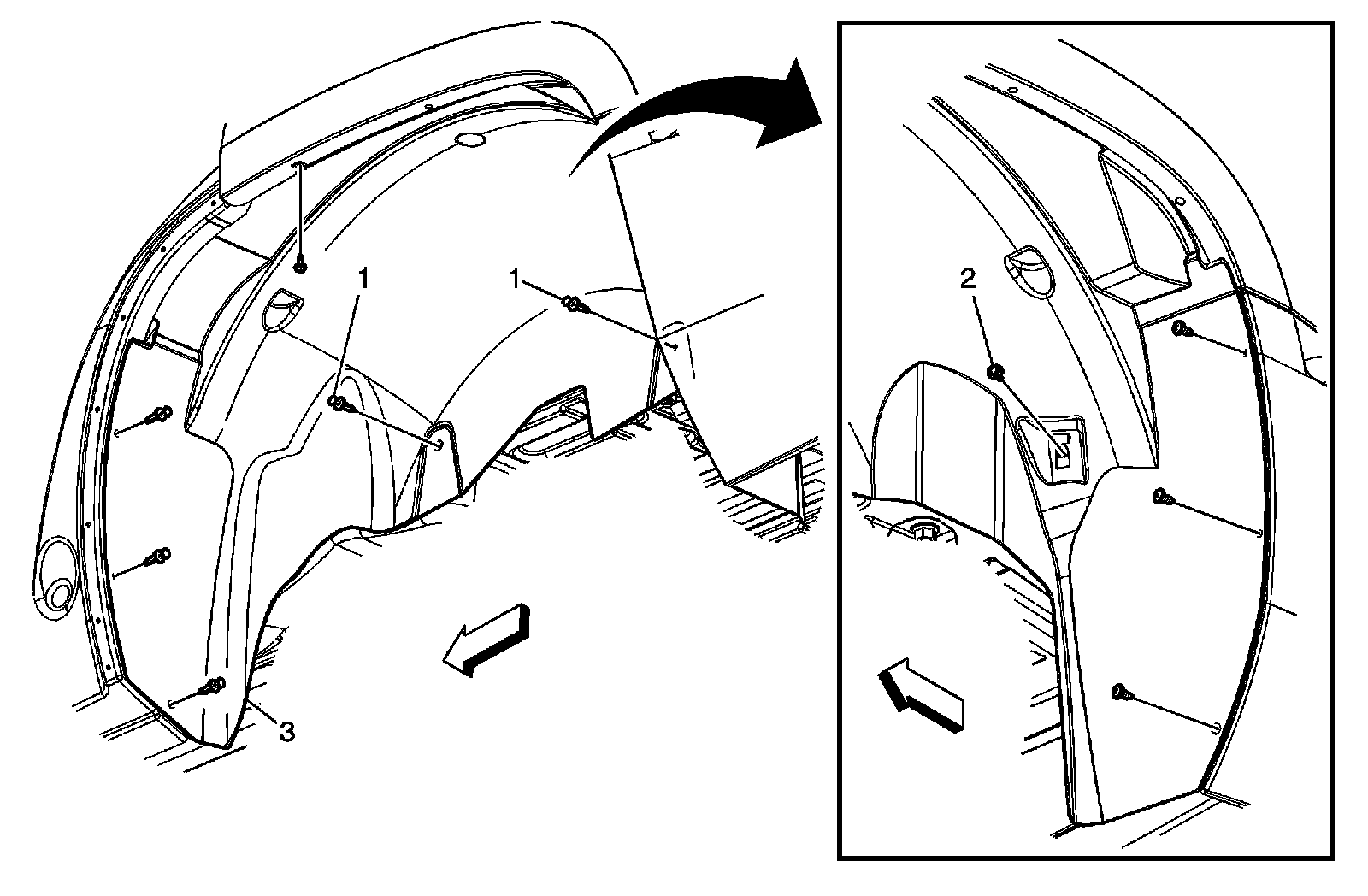

Rear Wheelhouse Panel Liner Replacement (RPO X88 Chevrolet, RPO O88 GMC)


Rear Wheelhouse Panel Liner Replacement (RPO X88 Chevrolet, RPO O88 GMC)

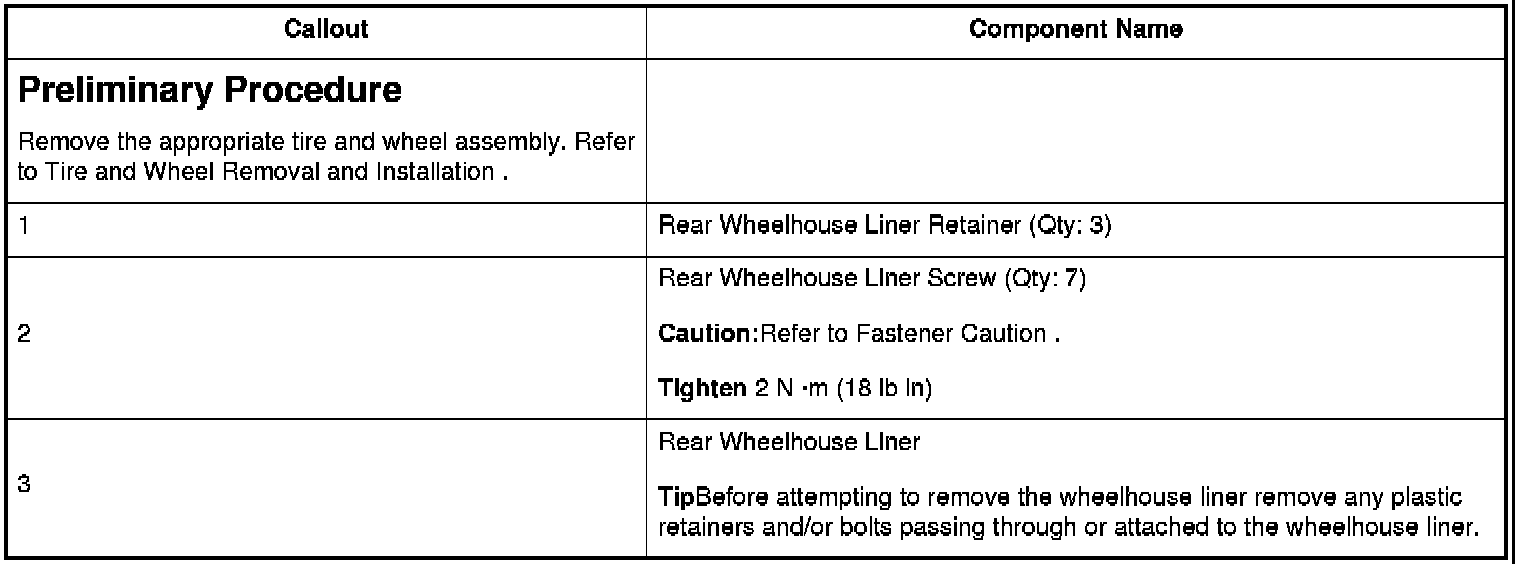

Preliminary Procedure

Caution:Refer to Fastener Caution.
Tighten
TipBefore attempting to remove the wheelhouse liner remove any plastic retainers and/or bolts passing through or attached to the wheelhouse liner.
