Home >> GMC Truck >> 2011 >> Yukon XL 4WD V8-5.3L >> Repair and Diagnosis >> Body and Frame >> Fender >> Rear Fender >> Rear Fender Liner >> Service and Repair >> Rear Wheelhouse Panel Liner Replacement

Rear Wheelhouse Panel Liner Replacement

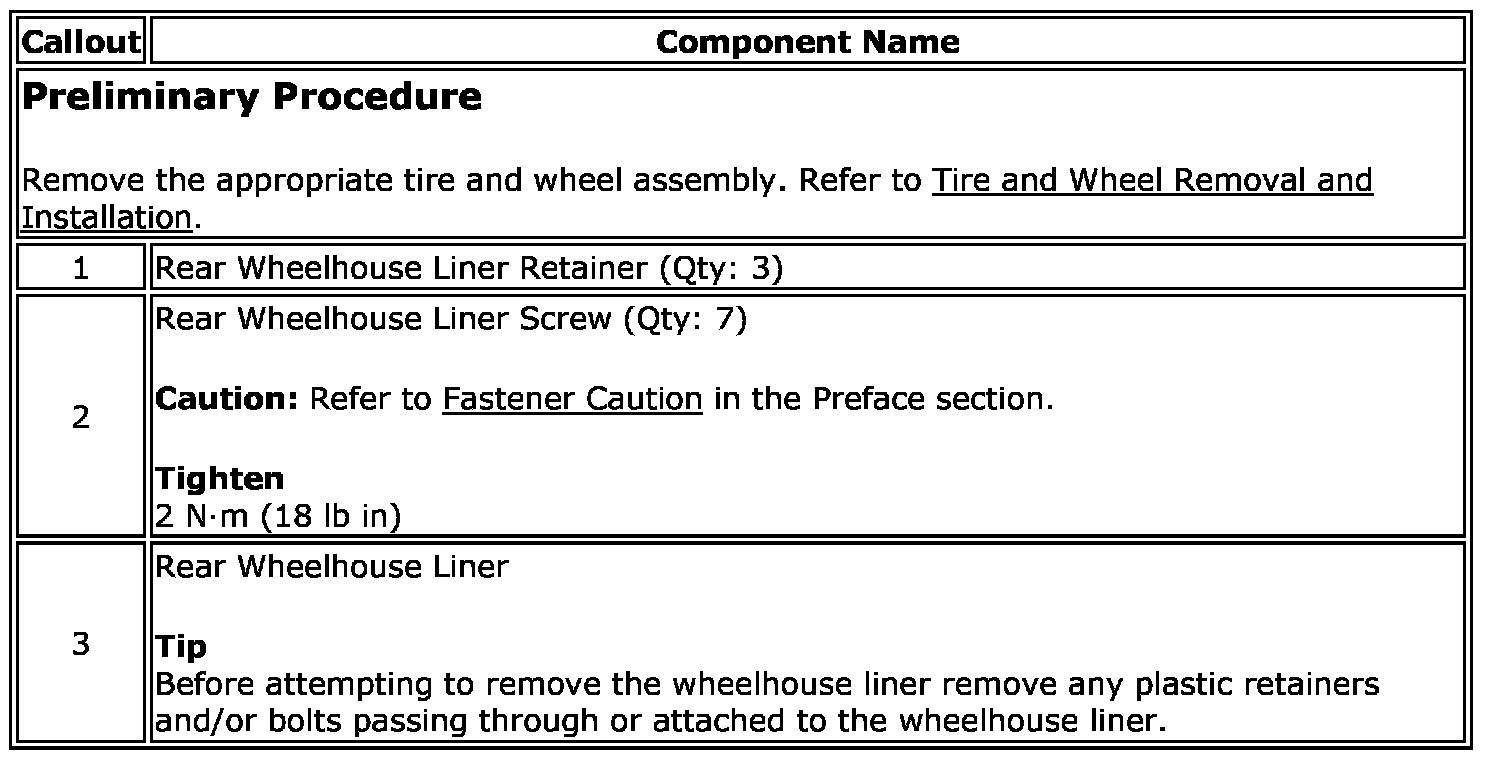

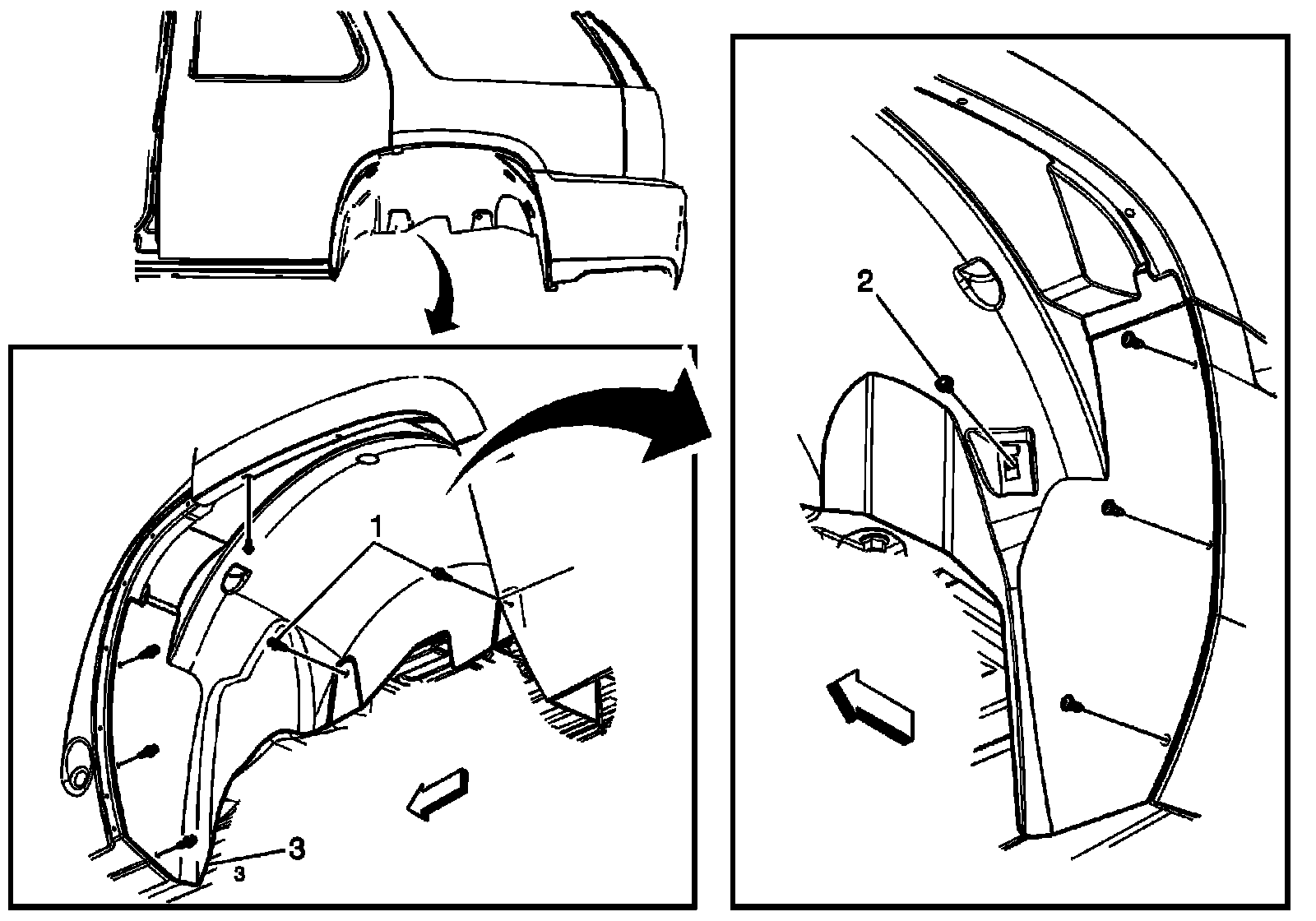

Rear Wheelhouse Panel Liner Replacement (RPO X88 Chevrolet, RPO O88 GMC)

RPO X88 "Market Brand Chevrolet"

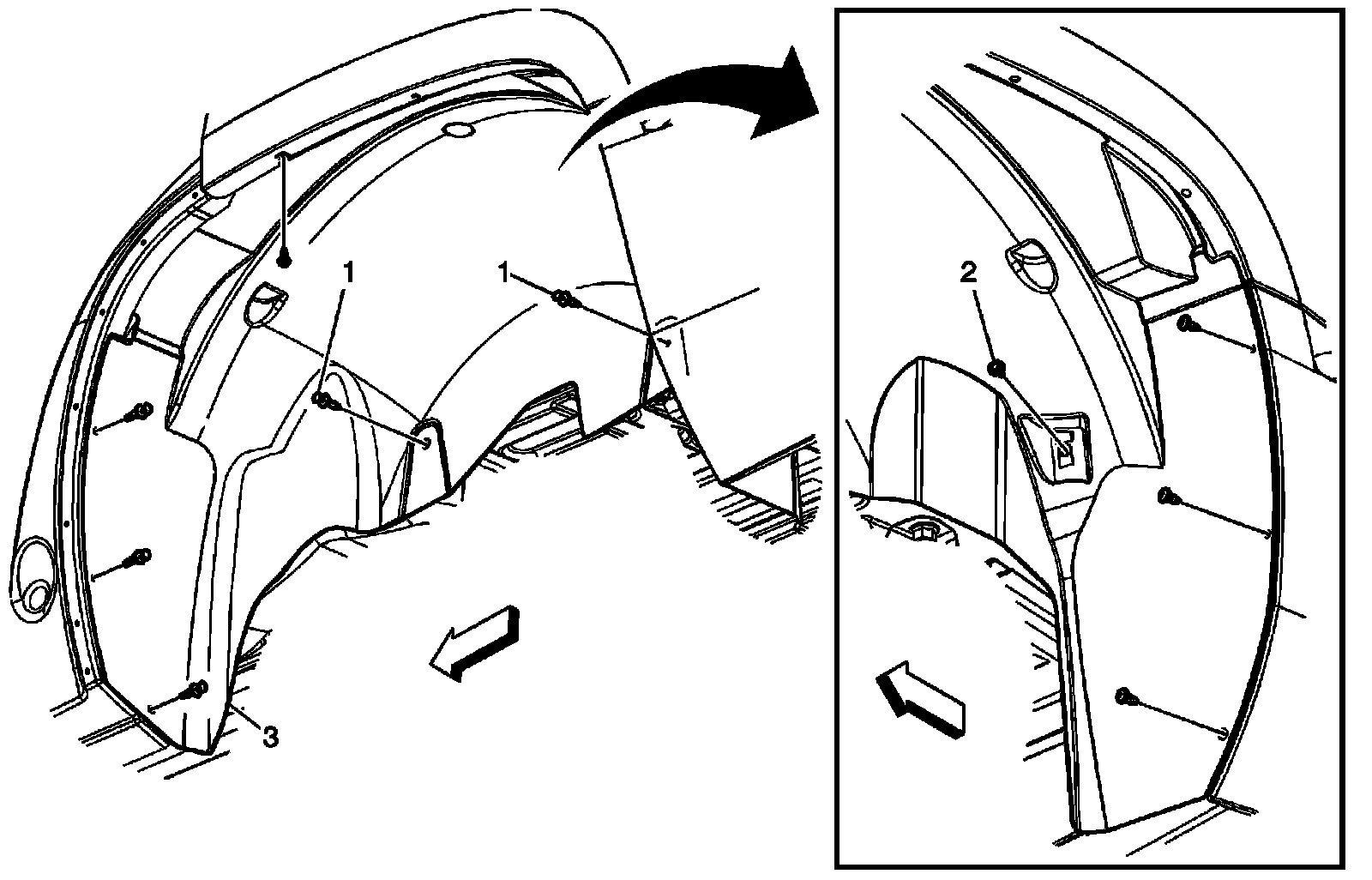

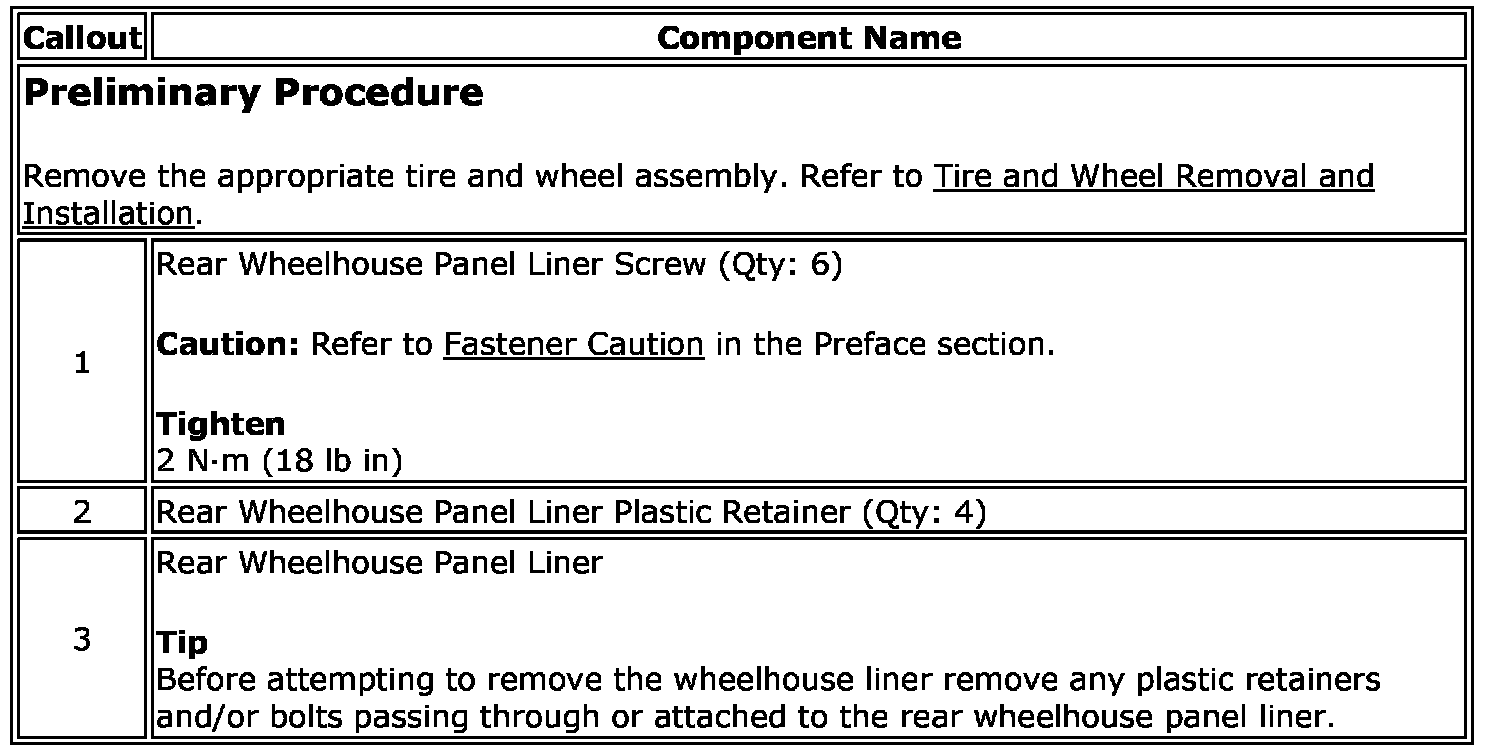

Rear Wheelhouse Panel Liner Replacement (RPO HP2)
