Home >> GMC Truck >> 2011 >> Yukon XL 4WD V8-5.3L >> Repair and Diagnosis >> Body and Frame >> Doors, Hood and Trunk >> Trunk / Liftgate >> Trunk / Liftgate Closer Module >> Service and Repair

Trunk / Liftgate Closer Module: Service and Repair

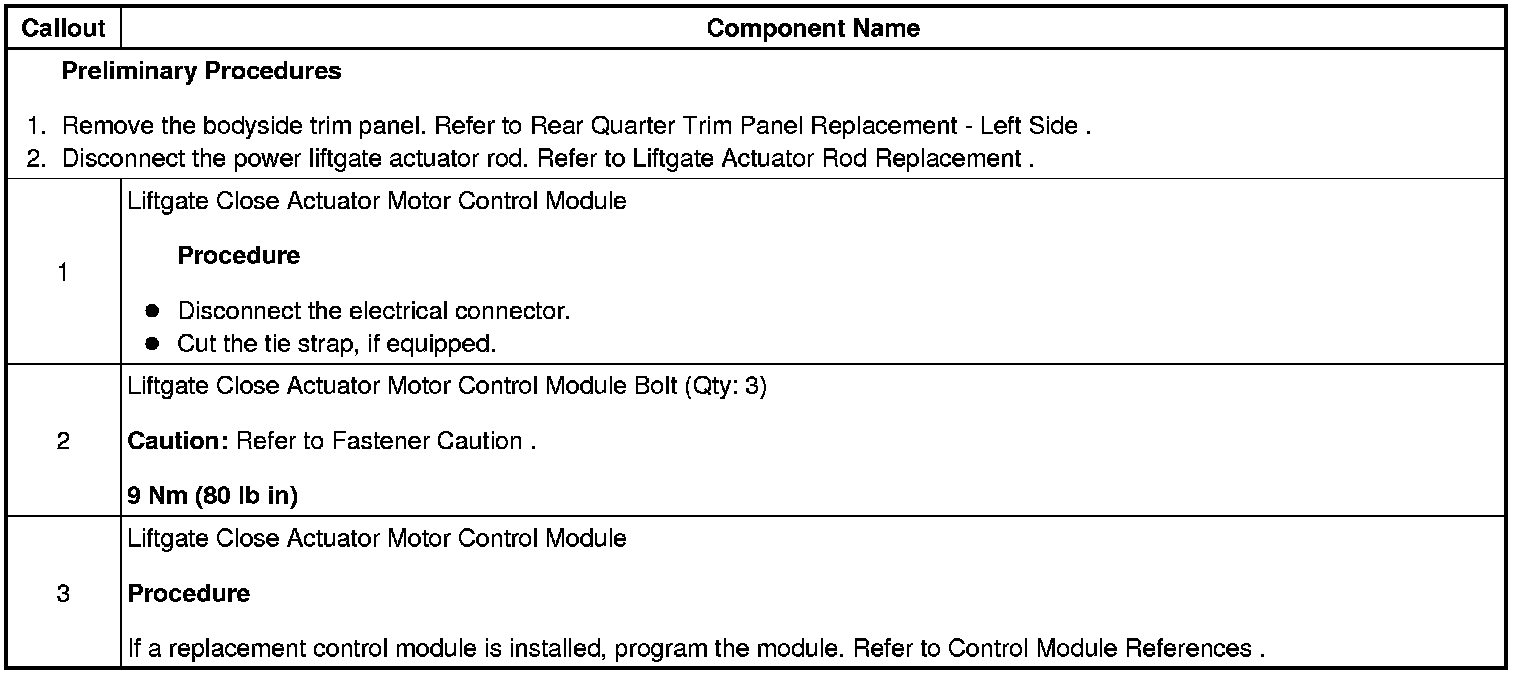

Liftgate Close Actuator Motor Control Module Replacement
