Front Bumper Fascia Replacement (Escalade)

Front Bumper Fascia Replacement (Escalade)

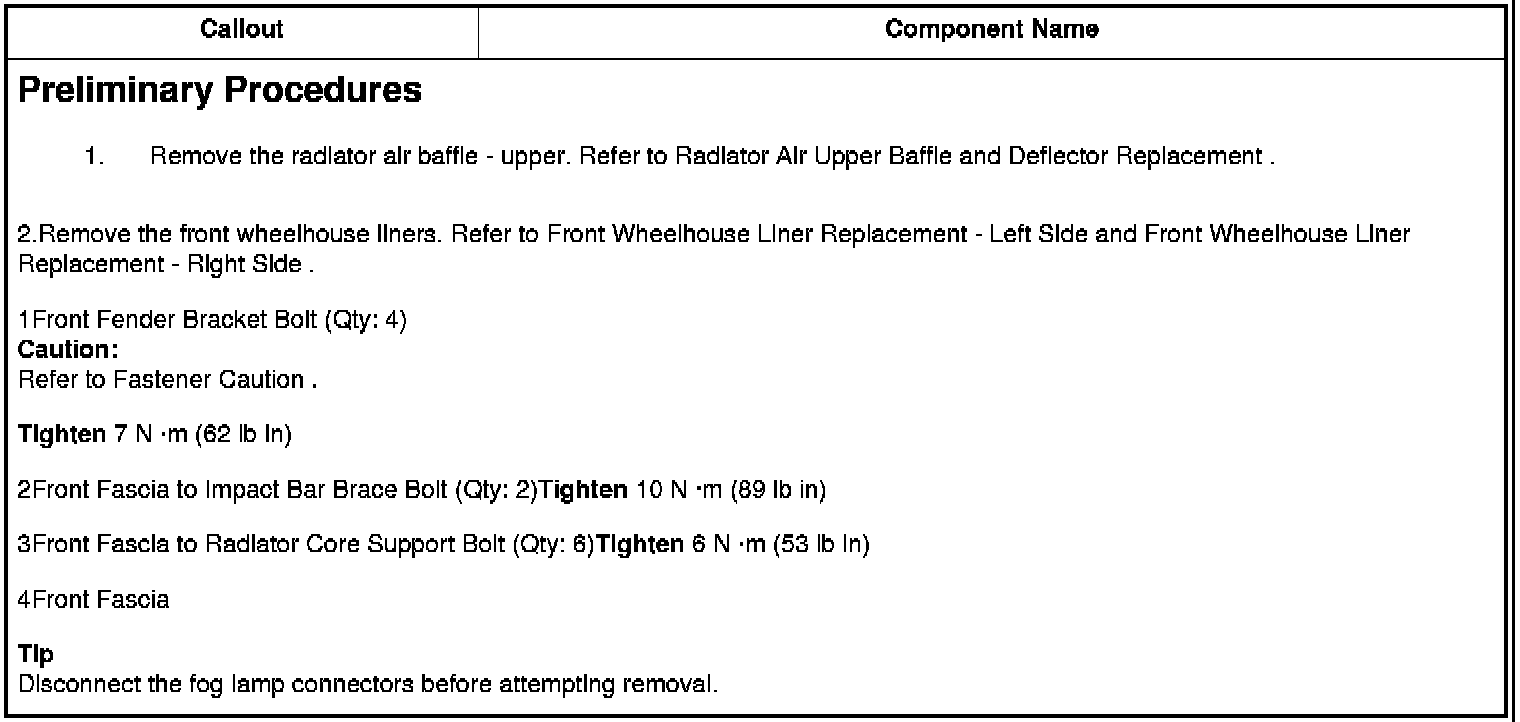

2.Remove the front wheelhouse liners. Refer to Front Wheelhouse Liner Replacement - Left Side and Front Wheelhouse Liner Replacement - Right Side .

1Front Fender Bracket Bolt (Qty: 4)
Caution:Refer to Fastener Caution .
Tighten 7 N �m (62 lb in)

2Front Fascia to Impact Bar Brace Bolt (Qty: 2)Tighten 10 N �m (89 lb in)

3Front Fascia to Radiator Core Support Bolt (Qty: 6)Tighten 6 N �m (53 lb in)

4Front Fascia
Tip Disconnect the fog lamp connectors before attempting removal.
