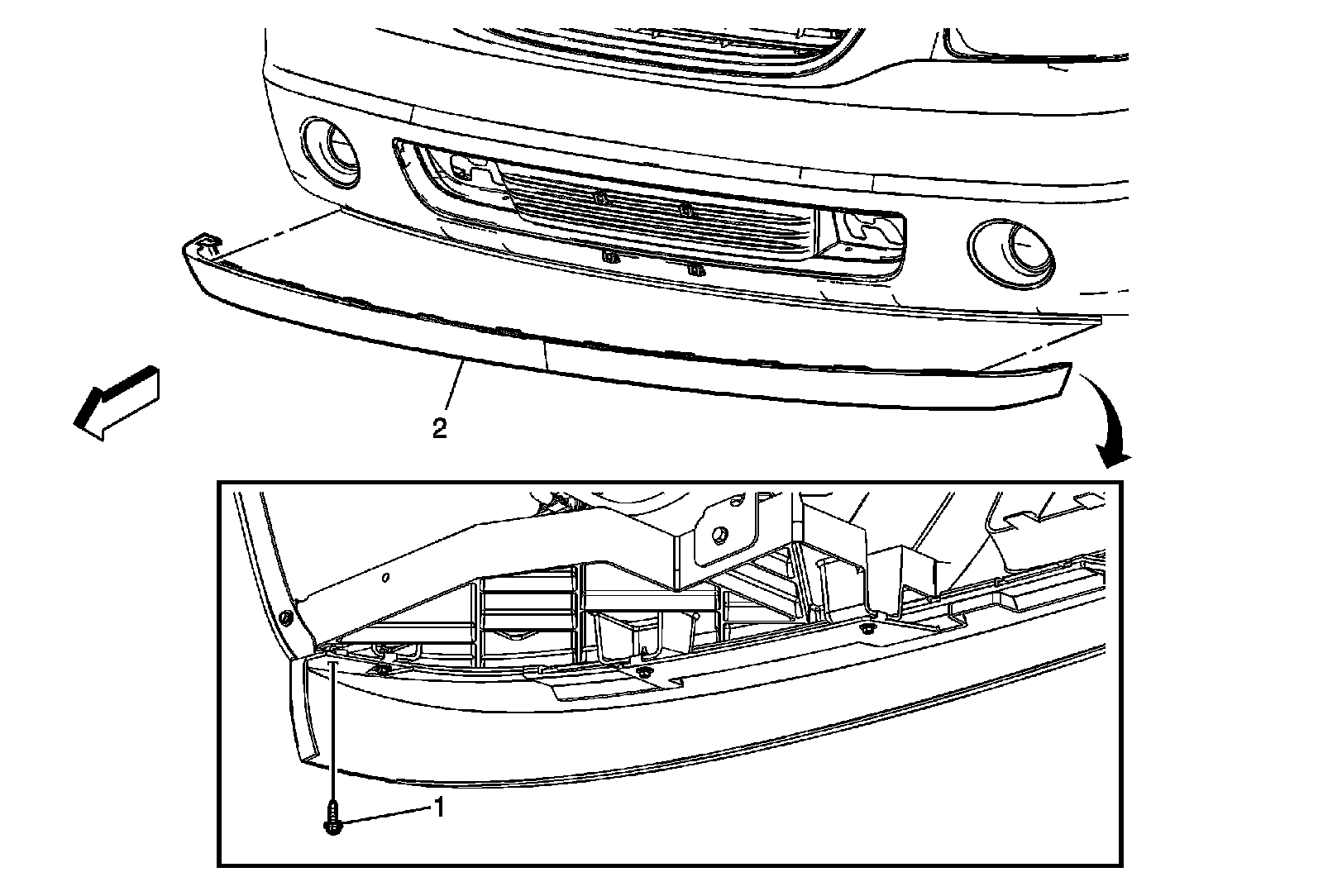

Front Bumper Fascia Air Deflector Replacement (Avalanche, Cadillac EXT)


Front Bumper Fascia Air Deflector Replacement (Avalanche, Cadillac EXT)

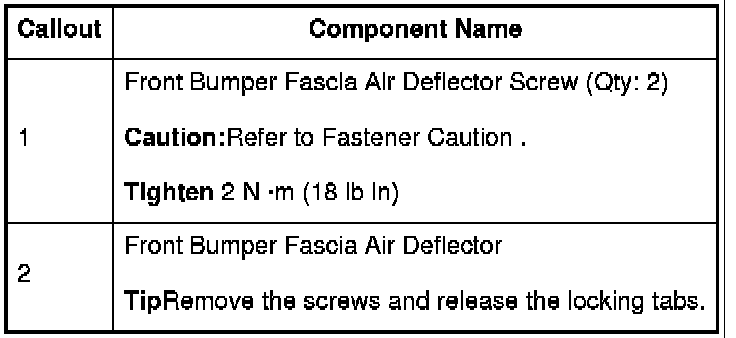

Caution:Refer to Fastener Caution.
Tighten
TipRemove the screws and release the locking tabs.
