Home >> GMC Truck >> 1998 >> Yukon 4WD V8-5.7L VIN R >> Repair and Diagnosis >> Transmission and Drivetrain >> Transfer Case >> Control Module >> Locations >> Automatic Transfer Case Control Module

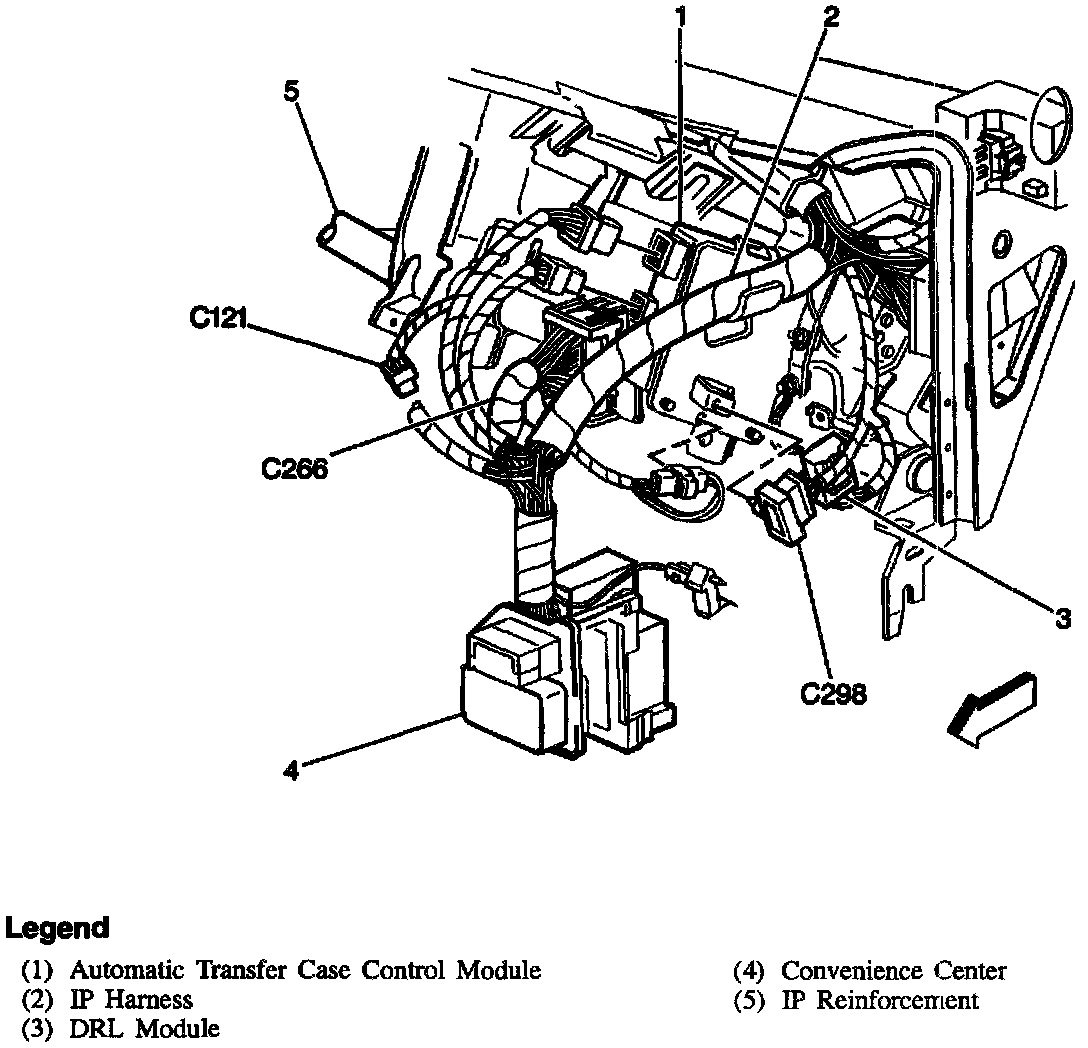

Automatic Transfer Case Control Module

Instrument Panel Wiring, LH (Rearview):
