Home >> GMC Truck >> 1992 >> Syclone V6-262 4.3L Turbo >> Repair and Diagnosis >> Power and Ground Distribution >> Diode >> Locations

Diode: Locations

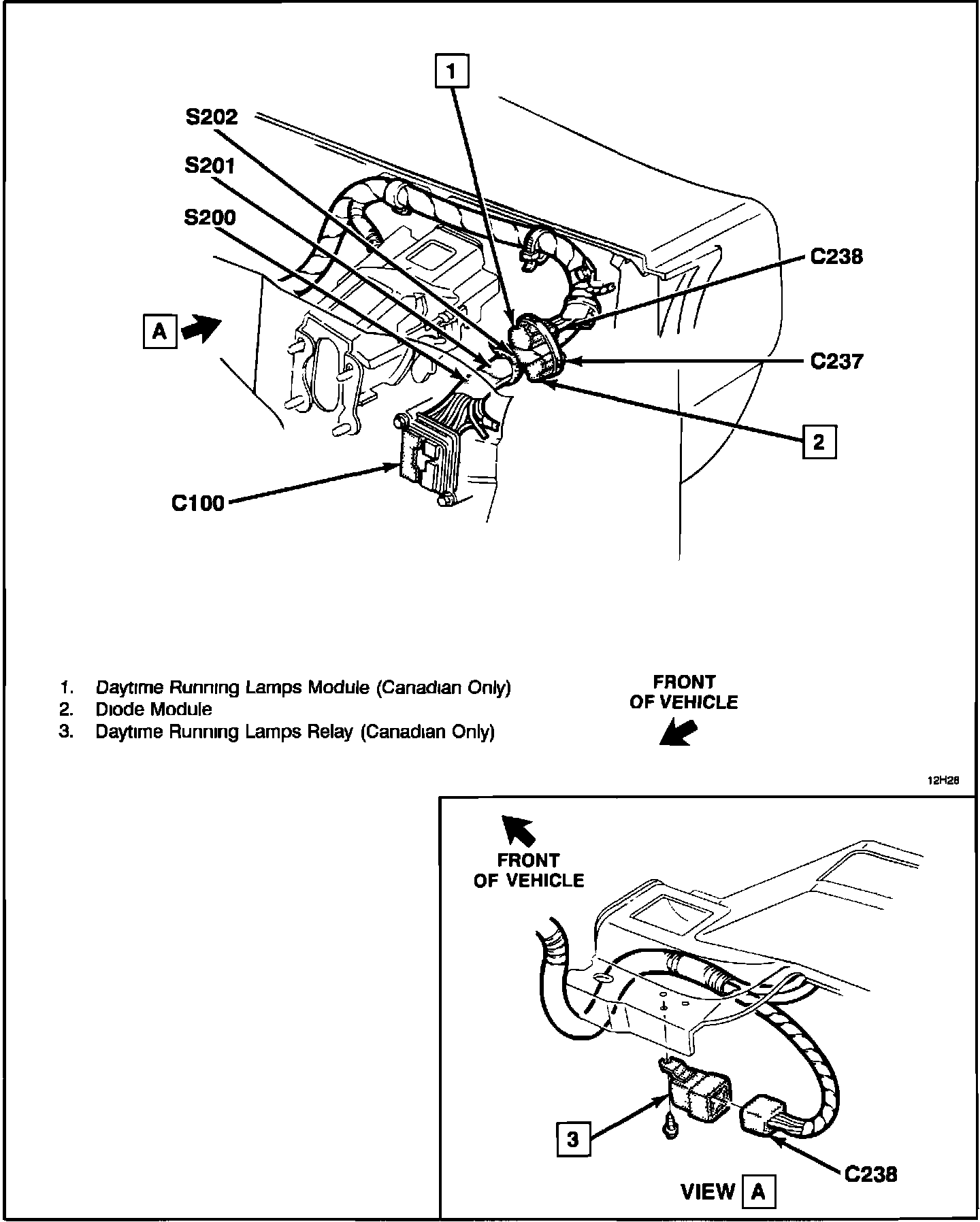

Daytime Running Lamps, I/P Wiring:
