Home >> GMC Truck >> 1992 >> Syclone V6-262 4.3L Turbo >> Repair and Diagnosis >> Brakes and Traction Control >> Antilock Brakes / Traction Control Systems >> Electronic Brake Control Module >> Locations >> Rear Wheel Antilock (RWAL) Module

Rear Wheel Antilock (RWAL) Module

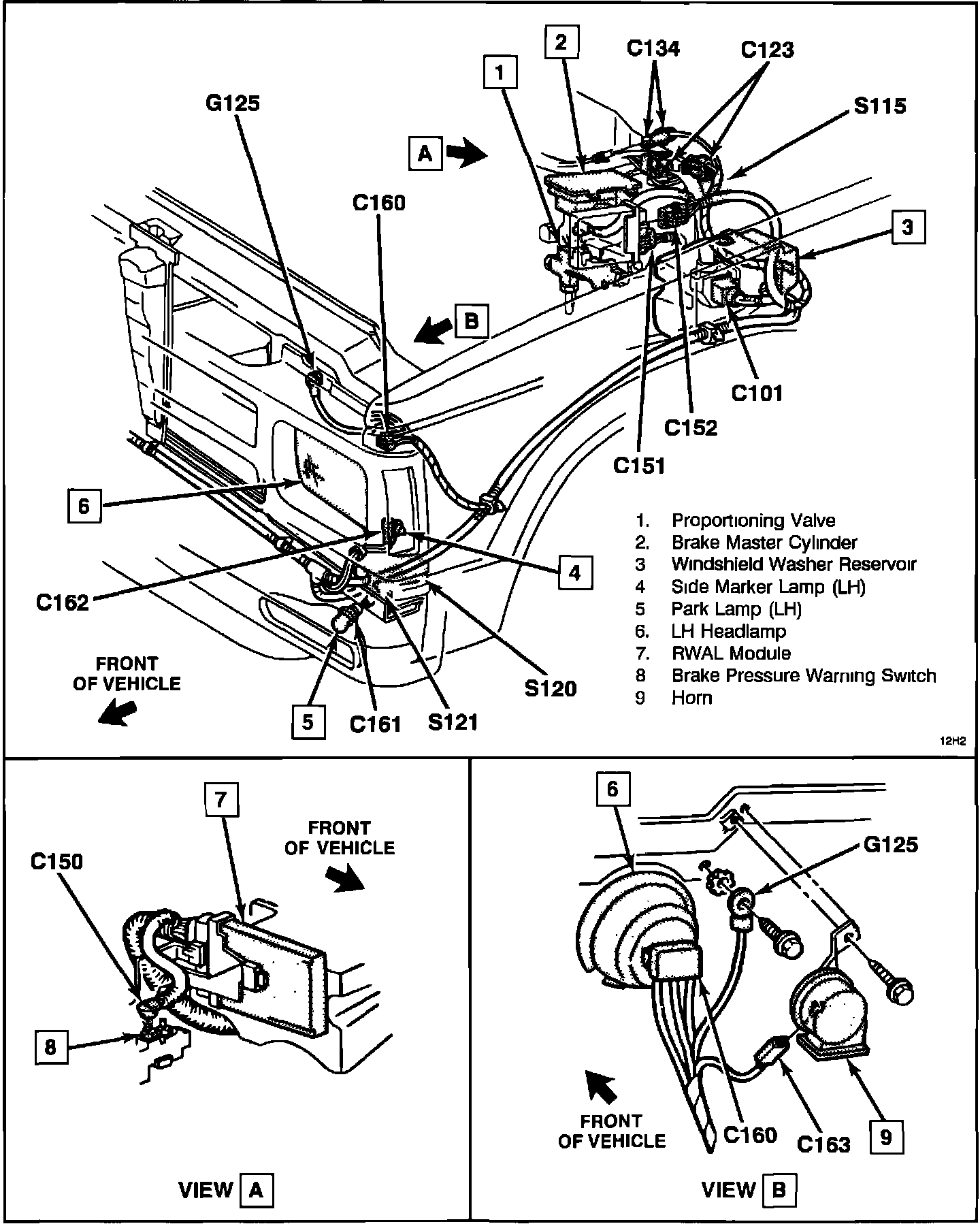

Forward Lights Harness, LH Side (W/Rear Wheel Antilock Brakes):
