GMC Truck
>>
1991
>>
Jimmy Full Size V8-379 6.2L DSL
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Differential Assembly
>>

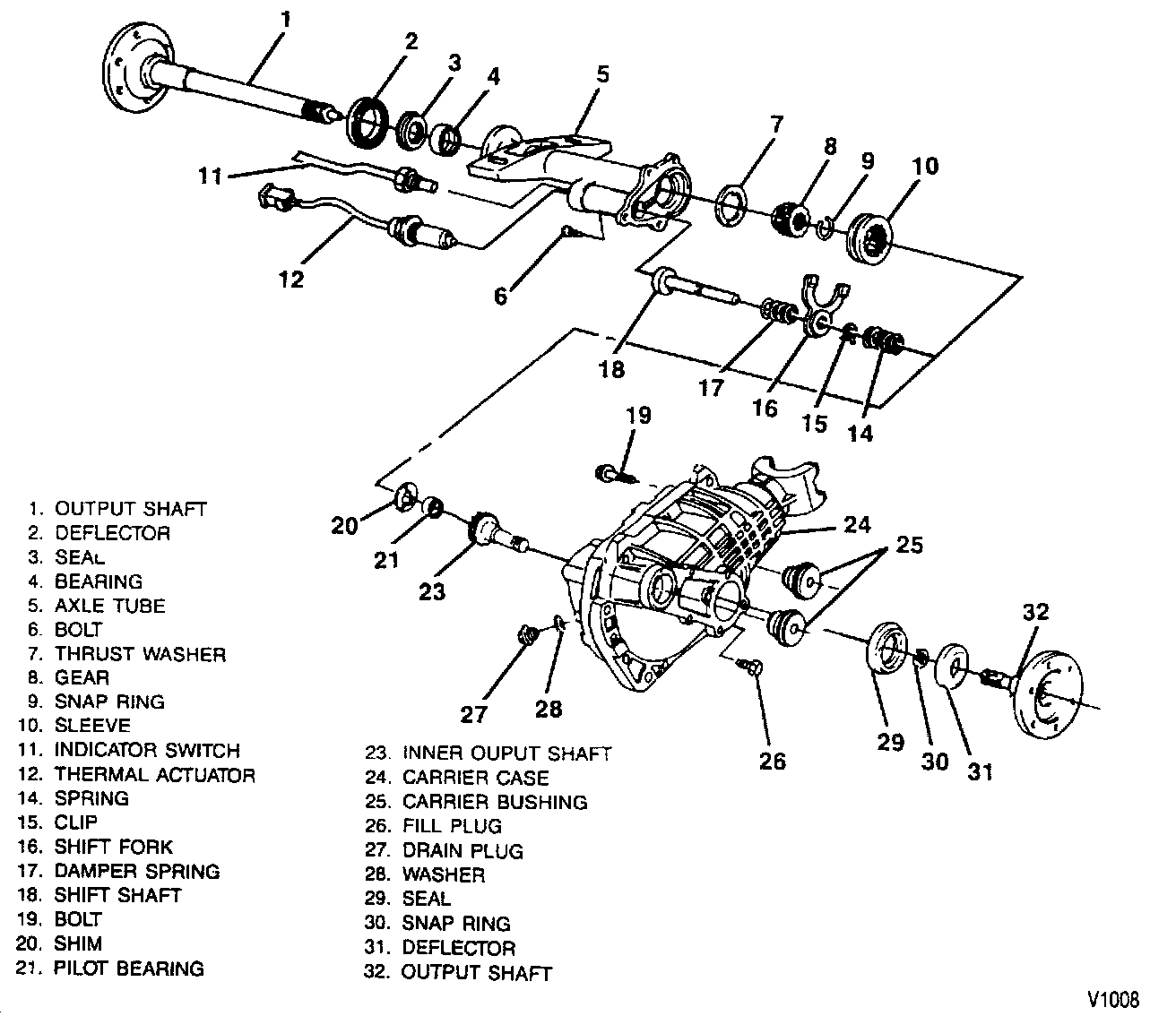

Front Axle Components
Front Axle Components
