AR35.30-D-0620H Remove/Install Rear Axle Shaft

AR35.30-D-0620H Remove/Install Rear Axle Shaft

REAR AXLE 741.412 /415 in MODEL 906.11 /13 /21 /23 /61 /63 /71 /73
REAR AXLE 741.415 in MODEL 900.63
REAR AXLE 741.428 in MODEL 8AC906.133 /631 /633 /635
- with CODE (ZL3) National version for Latin America

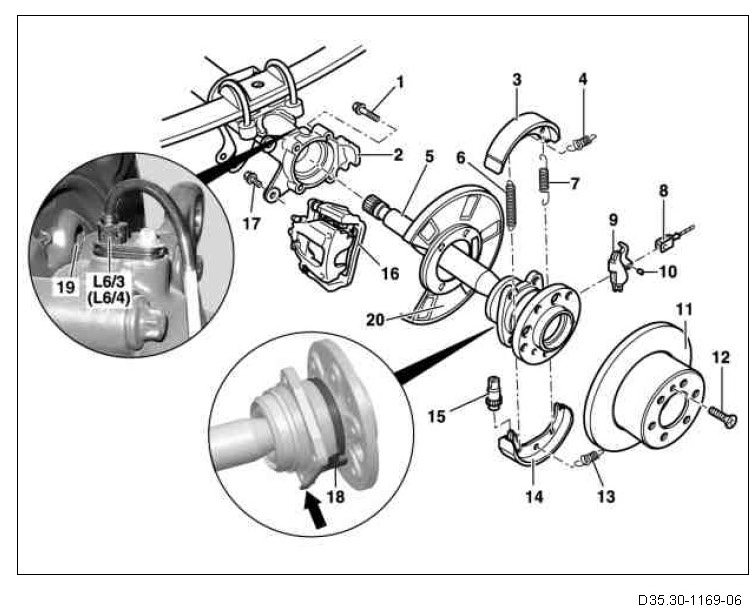

1 Screw
2 Rear axle tube
3 Brake shoe
4 Pressure spring
5 Rear axle shaft
6 Retracting spring (front)
7 Retracting spring (rear)
8 Brake cable
9 Brake cable lock
10 Pin
11 Brake disk
12 Screw
13 Pressure spring
14 Brake shoe
15 Brake shoe adjuster
16 Brake caliper
17 Screw
18 Oil baffle
19 Bore
20 Anchor plate

L6/3 Left rear rpm sensor
L6/4 Right rear rpm sensor
