AR35.30-D-4300-05A Install Tapered Roller Bearings on Differential Housing

AR35.30-D-4300-05A Install Tapered Roller Bearings On Differential Housing
REAR AXLE 741.130 /131 /40 /412 /413 /414 /415 /416 /420 /43 /52 /53 /54 /55
REAR AXLE 741.408 /409 in MODEL 690.6
REAR AXLE 741.428 in MODEL 8AC906.133 /631 /633 /635
- with CODE (ZL3) National version for Latin America










1 Heat up both tapered roller bearings to approx. 80 °C

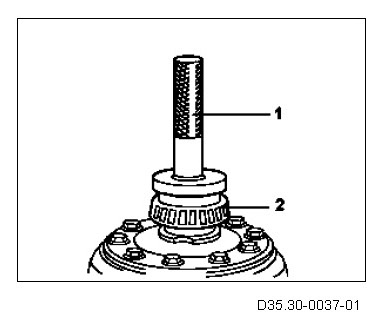

2 Drive on tapered roller bearing (2) as far as the end stop using a suitable drift (1).

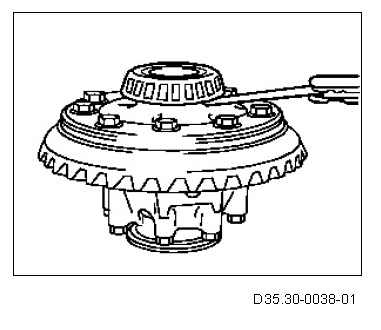

3 Check contact of tapered roller bearings on differential case using a feeler gauge (thickness 0.05).

The tapered roller bearings must be flush.
