AR35.30-D-4300-01A Pull Tapered Roller Bearing Off Drive Pinion, Press on

AR35.30-D-4300-01A Pull Tapered Roller Bearing Off Drive Pinion, Press On
REAR AXLE 741.130 /131 /40 /412 /413 /414 /415 /416 /420 /43 /52 /53 /54 /55
REAR AXLE 741.130 in MODEL 690.6
REAR AXLE 741.408 /409 in MODEL 690.6
REAR AXLE 741.428 in MODEL 8AC906.133 /631 /633 /635
- with CODE (ZL3) National version


001 589 19 33 00, Puller














A Detach

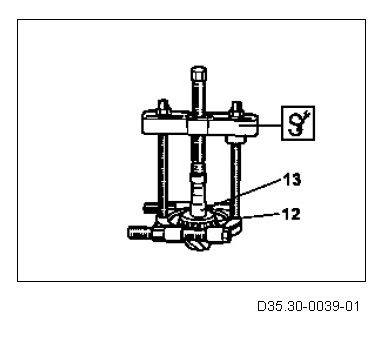

1 Pull tapered roller bearing (12) off drive pinion (13) using puller .

B Pressing on

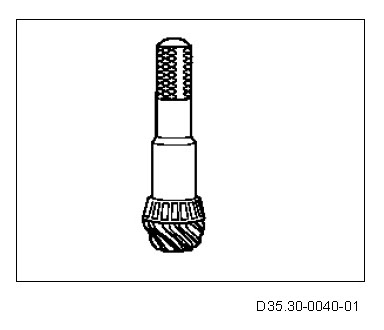

2 Heat up tapered roller bearing (12) to approx. 80 °C and drive on as far as the end stop on drive pinion (13) using a suitable drift.
