Removal and Replacement

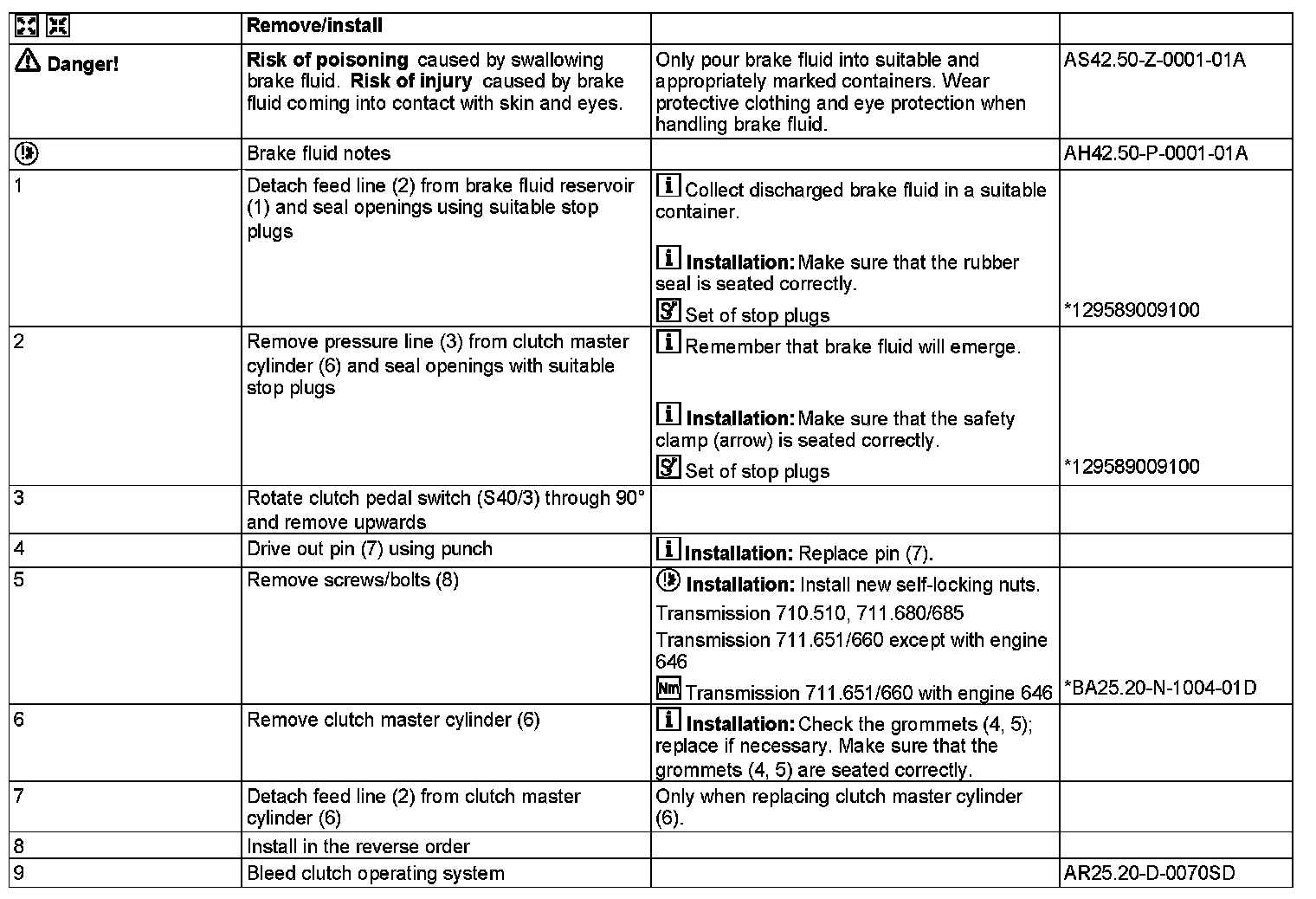

AR25.20-D-0100SD Remove/Install Master Cylinder

MODEL 906
- with TRANSMISSION 711.6

MODEL 8AC906.133 /153 /155 /631 /633 /635 /655 /657
- with TRANSMISSION 710.510
- with CODE (ZL3) National version for Latin America

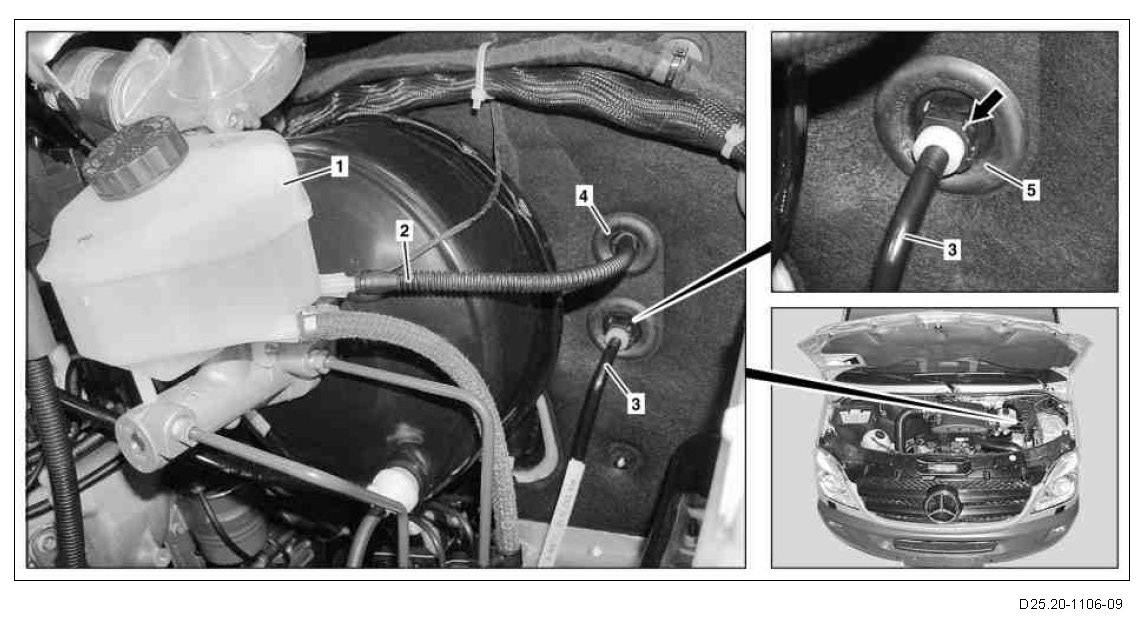

1 Brake fluid reservoir
2 Feed line
3 Pressure line
4 Grommet
5 Grommet

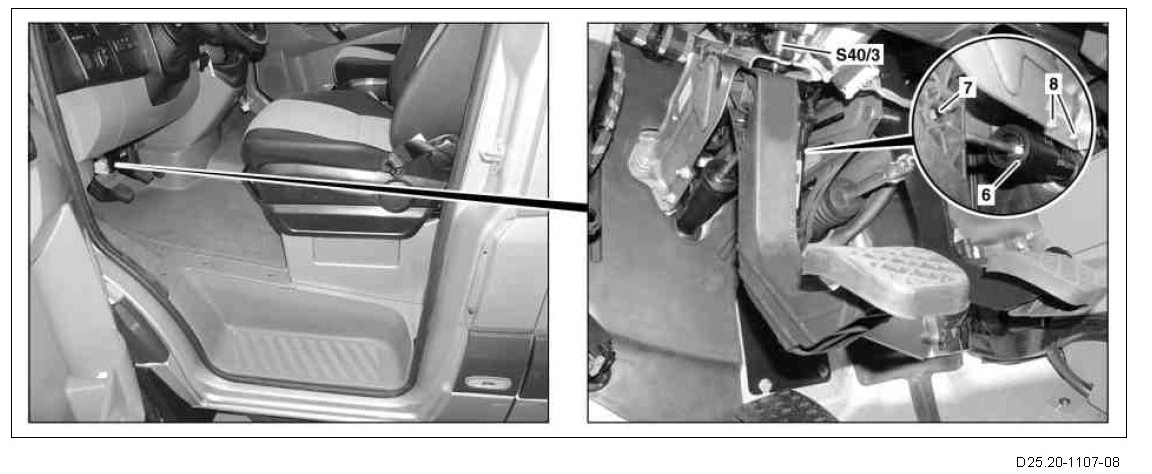

6 Clutch master cylinder
7 Pin
8 Bolts

S40/3 Clutch pedal switch










129 589 00 91 00, Set of stop plugs
