Suspension Strut / Shock Absorber: Service and Repair

AR32.25-D-0110HB Remove/Install Rear Shock Absorber

MODEL 906.13 /23 /63 /73
- with REAR AXLE 741.412 /415
- with CODE (PL9) Air suspension, company VB-Air suspension

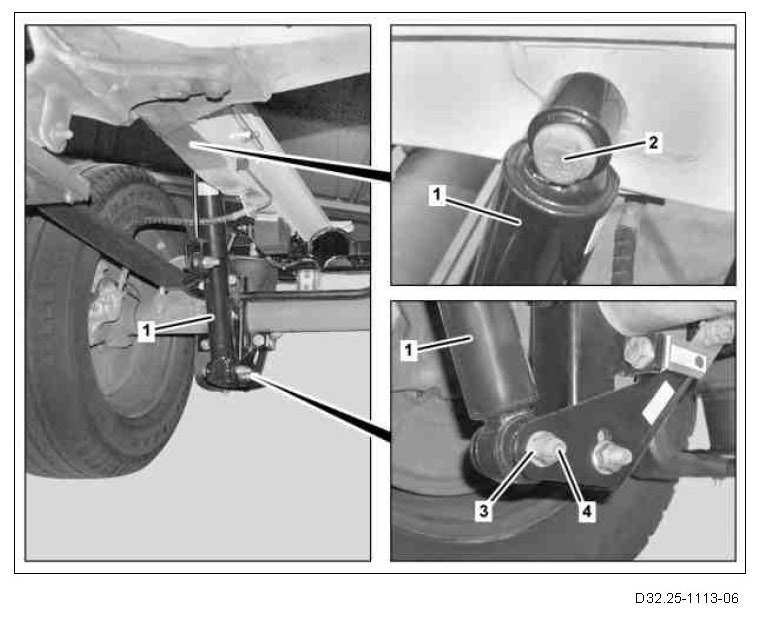

1 Shock absorber
2 Screw
3 Nut
4 Screw
