Courtesy Lamp: Service and Repair

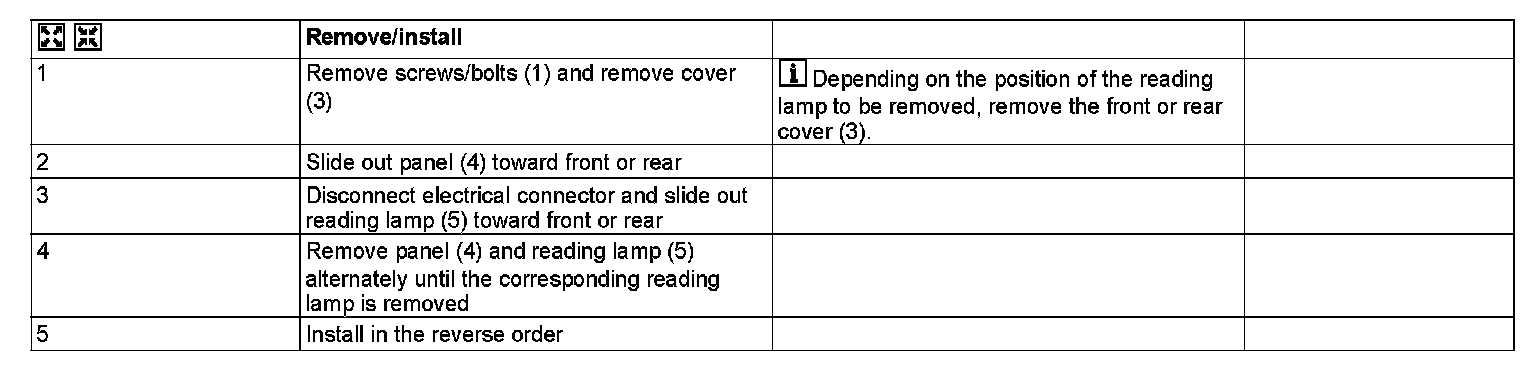

AR82.20-A-1120A Remove/Install Reading Lamp In Rear

MODEL 8AC906.633 /655 /657
- with CODE (ZL3) National version for Latin America
- with CODE (D46) Overhead storage at left with LED reading spotlights and curtain preinstallation

MODEL 8AC906.633 /655 /657
- with CODE (ZL3) National version for Latin America
- with CODE (D46) Overhead storage at right with LED reading spotlights and curtain preinstallation

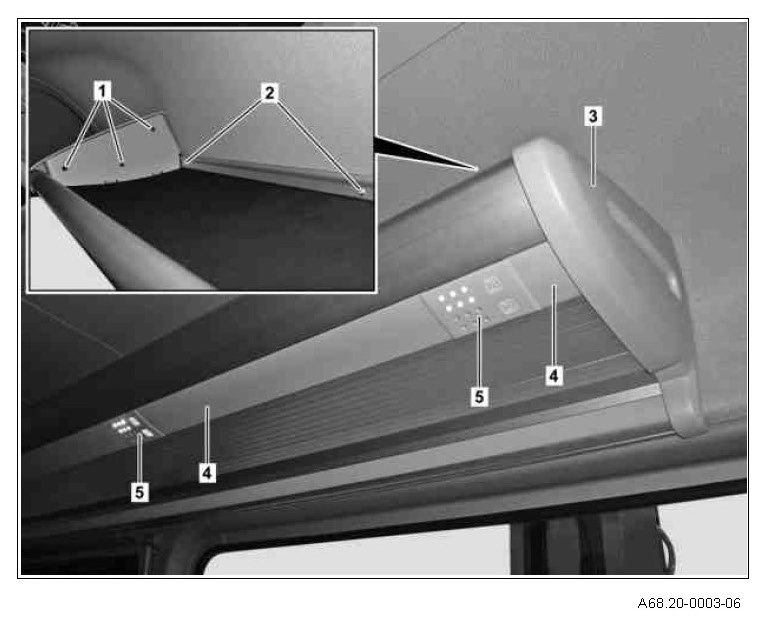

1 Screw
2 Screw
3 Cover
4 Cover
5 Reading lamp
