Removal and Replacement

AR83.50-A-5020A Remove/Install The Air Conditioning (Roof Equipment)

MODEL 8AC906.633 /655 /657
- with CODE (ZL3) National version for Latin America
- with CODE (HK4) Rear air conditioning, reinforced

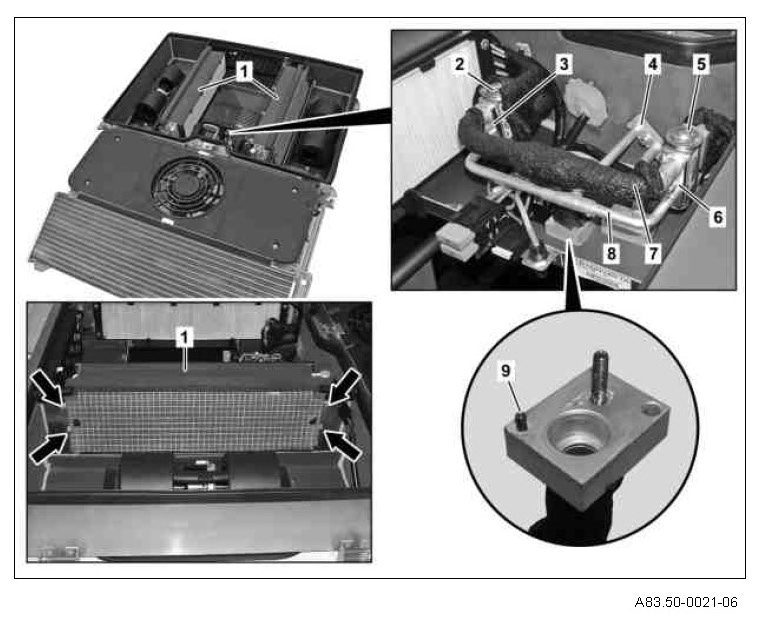

1 Evaporator
2 Expansion valve
3 Bracket
4 Bracket
5 Expansion valve
6 Bracket
7 Refrigerant line
8 Refrigerant line
9 Locking bolt










129 589 00 91 00, Set of stop plugs
