Home >> Freightliner Truck >> 2012 >> Sprinter 3500 V6-3.0L DSL Turbo (642.898) >> Repair and Diagnosis >> Heating and Air Conditioning >> Housing Assembly HVAC >> Service and Repair >> AR83.30-A-1300A Detach/Attach Cover of Roof Air Conditioning

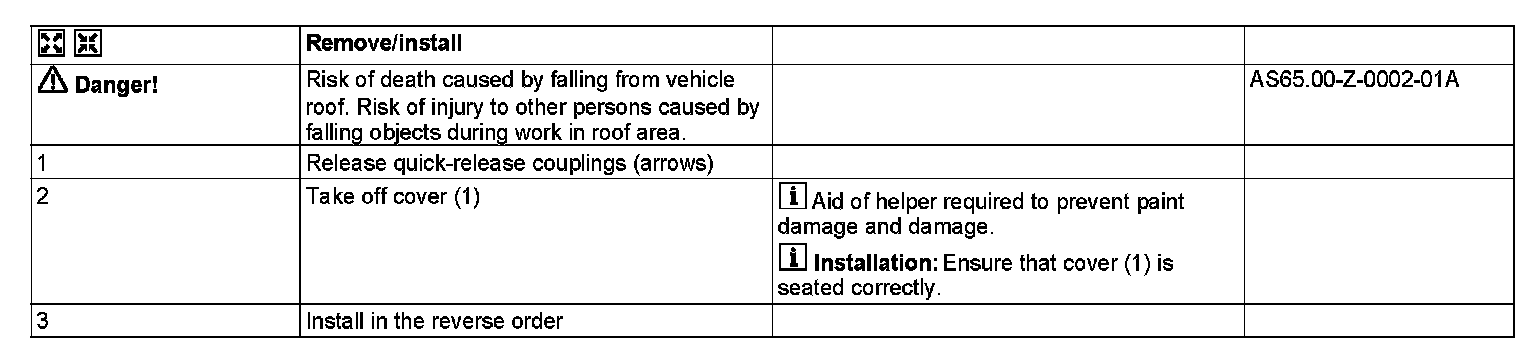

AR83.30-A-1300A Detach/Attach Cover of Roof Air Conditioning




AR83.30-A-1300A Detach/Attach Cover Of Roof Air Conditioning

MODEL 8AC906.633 /655 /657
- with CODE (ZL3) National version for Latin America
- with CODE (HK4) Rear air conditioning, reinforced

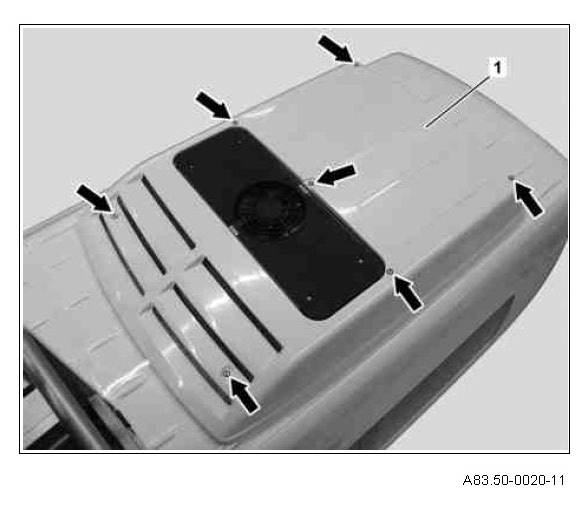

1 Cover
