AR83.30-A-1000A Detach/Attach Roof Air Conditioning on Vehicle Roof

AR83.30-A-1000A Detach/Attach Roof Air Conditioning On Vehicle Roof

MODEL 8AC906.633 /655 /657
- with CODE (ZL3) National version for Latin America
- with CODE (HK4) Rear air conditioning, reinforced

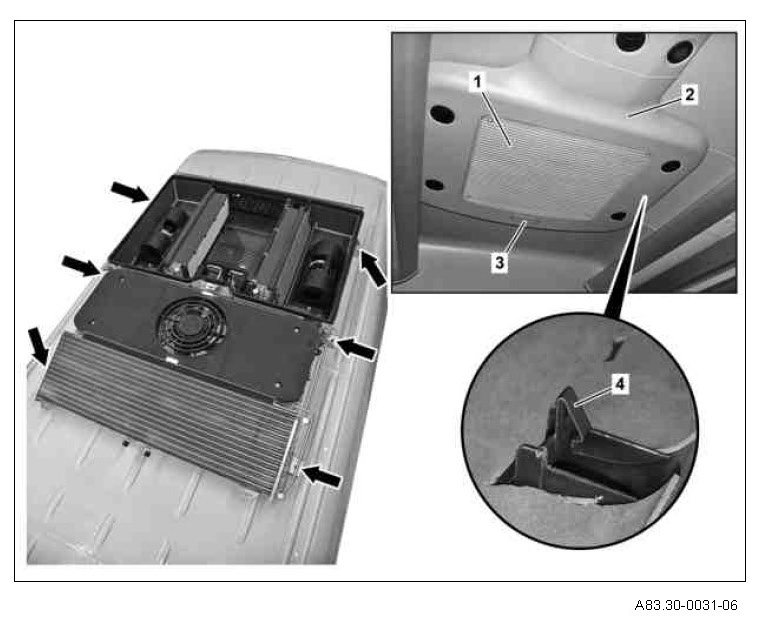

1 Vent grille
2 Air duct cover
3 Interior lamp
4 Retaining clip

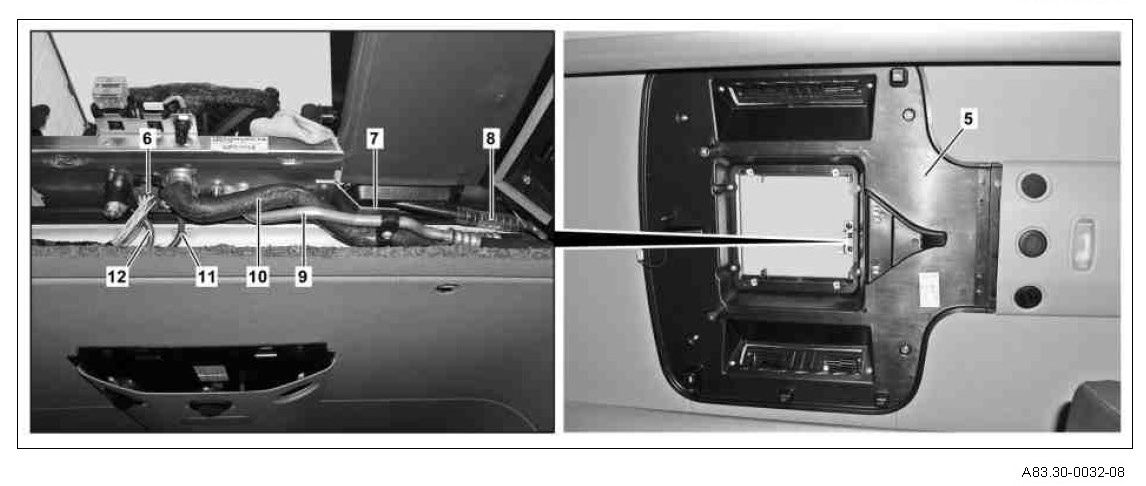

5 Air duct upper section
6 Electrical connector
7 Bracket
8 Water drain hose
9 Refrigerant line
10 Refrigerant line
11 Ground cable
12 Positive line










129 589 00 91 00, Set of stop plugs
