Compressor HVAC: Service and Repair

AR83.55-D-5301WE Remove/Install Refrigerant Compressor Bracket

MODEL 906.6
- with ENGINE 272, 642, 651
- with CODE (H08) High-performance air conditioning

MODEL 906.7
- with ENGINE 272, 642
- with CODE (H08) High-performance air conditioning

MODEL 8AC906.633 /655 /657
- with ENGINE 651.955
- with CODE (ZL3) National version for Latin America
- with CODE (HK4) Rear air conditioning, reinforced

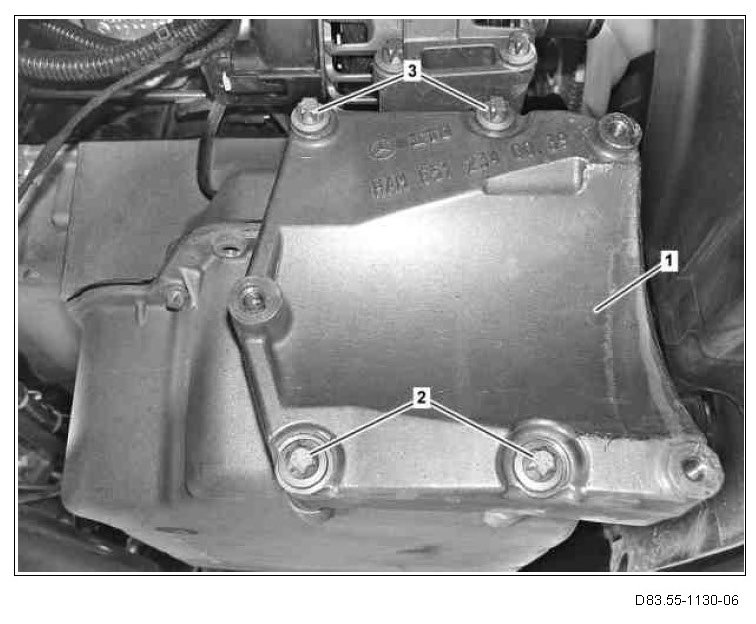

Shown on engine 651






1 Carrier
2 Bolts
3 Bolts
