Accumulator HVAC: Service and Repair

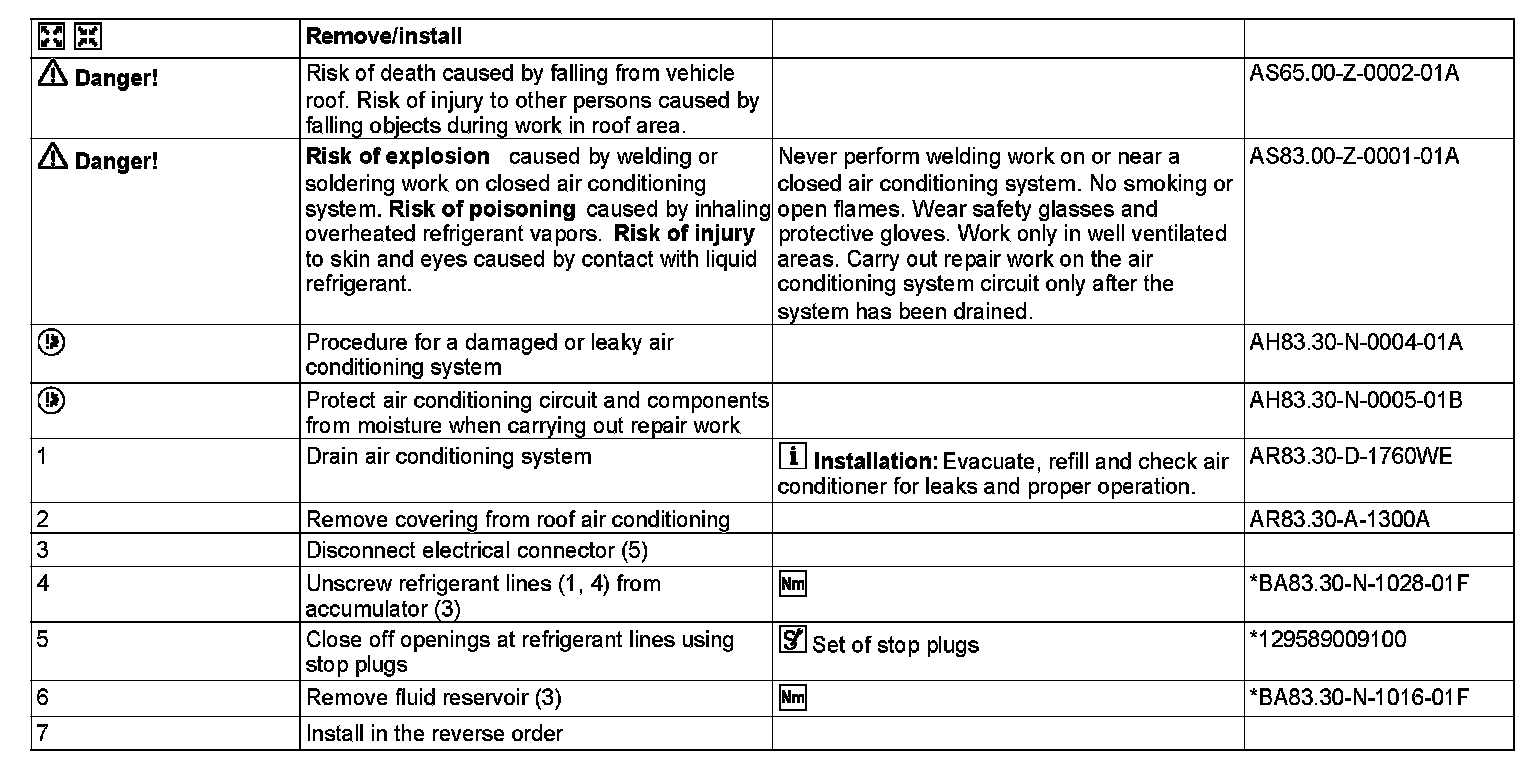

AR83.50-A-5080A Remove/Install The Air Conditioning's Fluid Reservoir (Roof Equipment)

MODEL 8AC906.633 /655 /657
- with CODE (ZL3) National version for Latin America
- with CODE (HK4) Rear air conditioning, reinforced

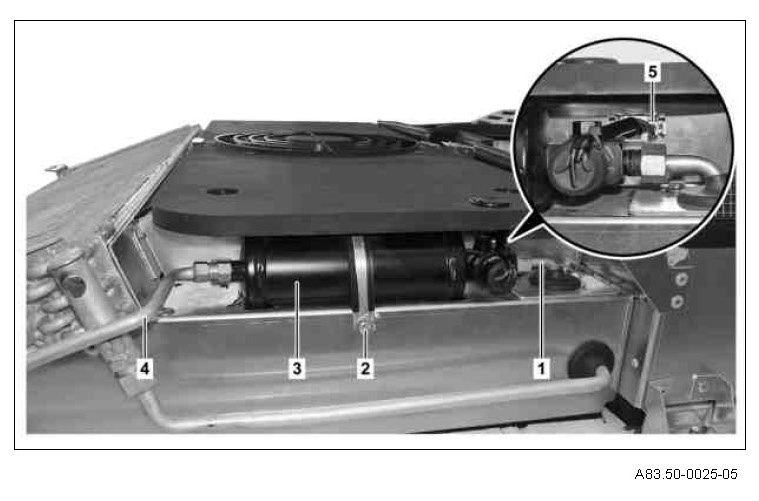

1 Refrigerant line
2 Screw
3 Fluid reservoir
4 Refrigerant line
5 Electrical connector










129 589 00 91 00, Set of stop plugs
