Home >> Freightliner Truck >> 2012 >> Sprinter 3500 V6-3.0L DSL Turbo (642.898) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Heated Glass Element >> PE67.29-D-2000AA Heated Rear Window

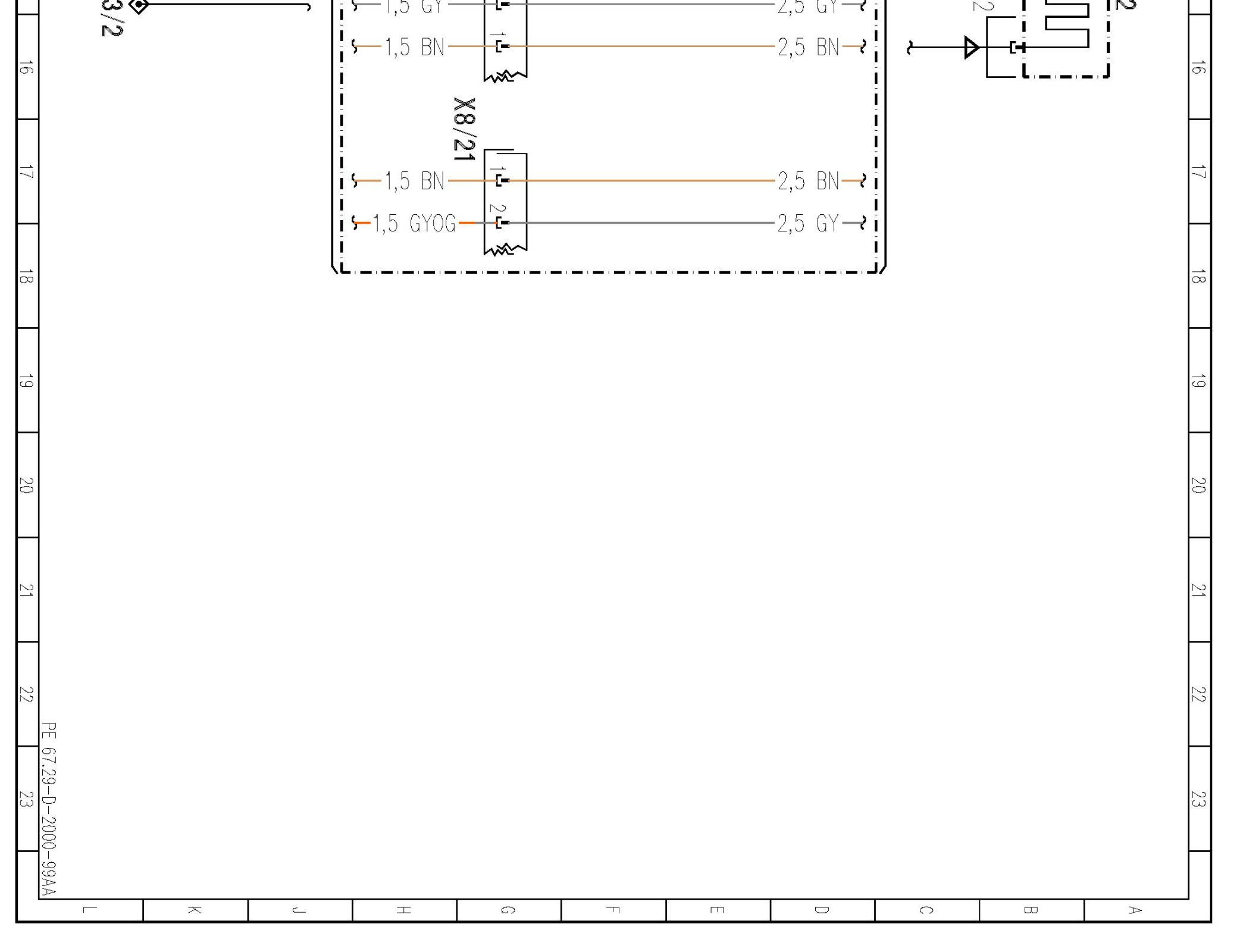

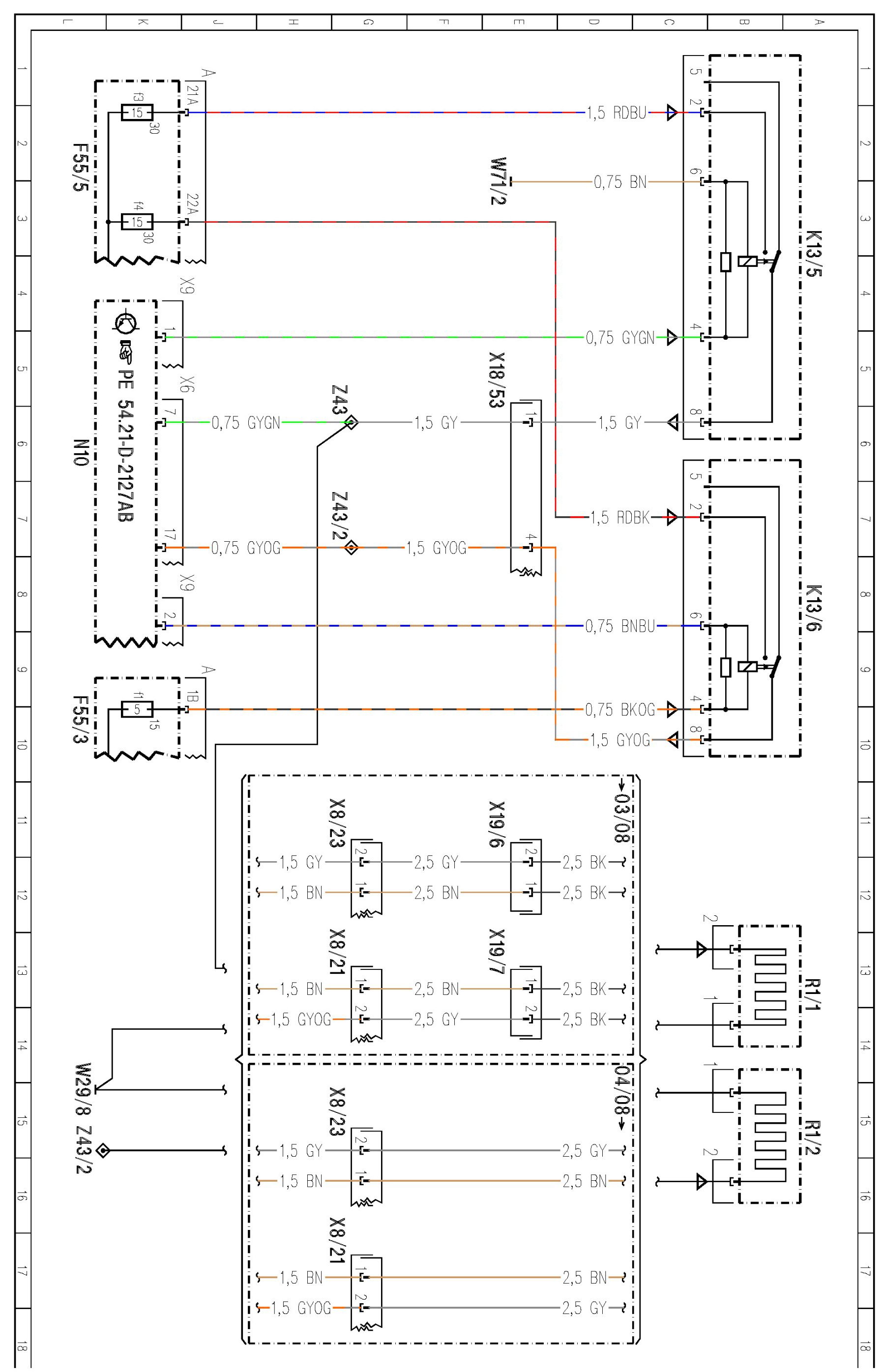

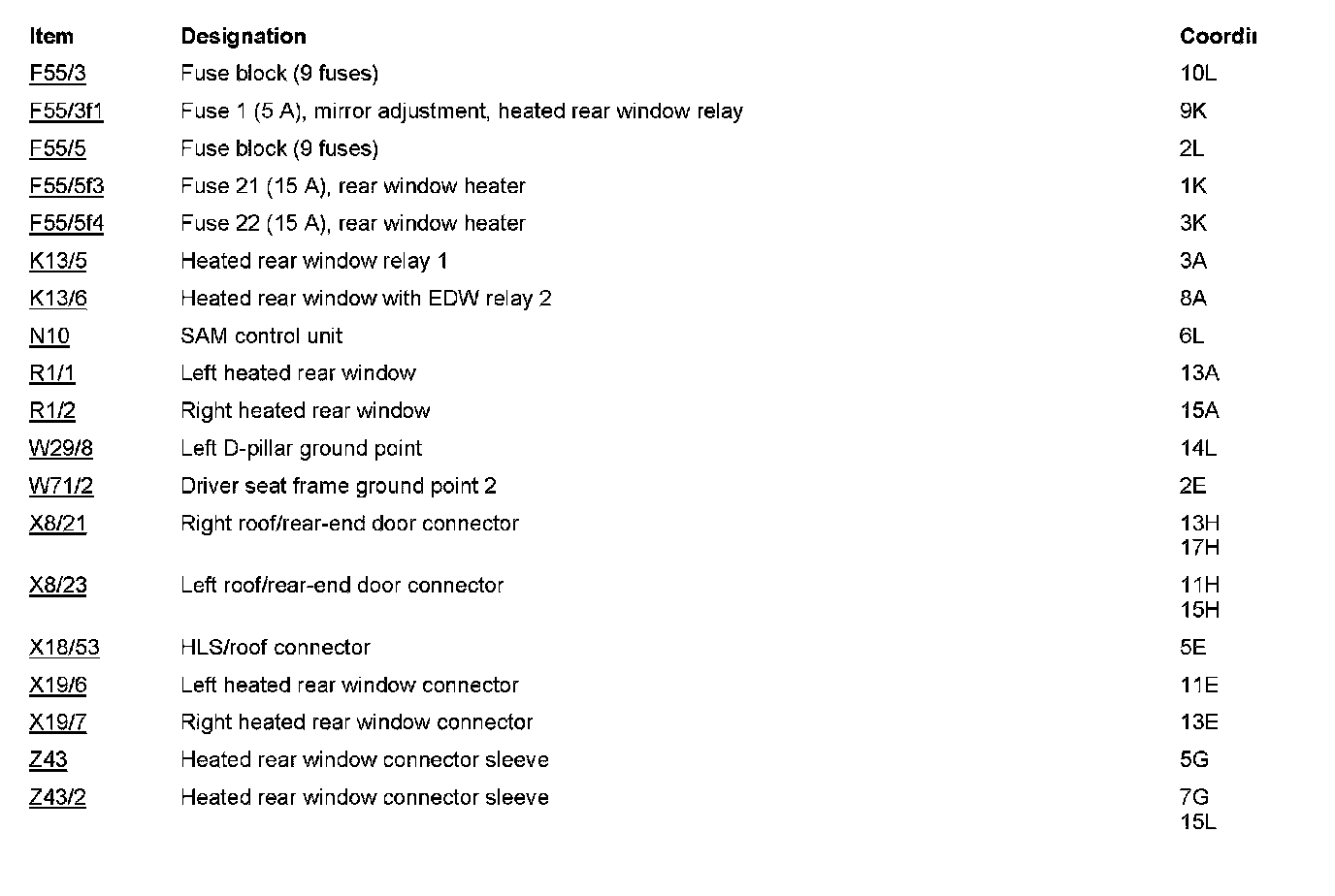

PE67.29-D-2000AA Heated Rear Window



PE67.29-D-2000AA Heated Rear Window

906 67 Windows
MODEL 906.7
- with CODE (H22) Heated windshield with anti-theft alarm system (ATA)
