AR42.20-D-0530H Remove/Install Brake Shoes of Parking Brake

AR42.20-D-0530H Remove/Install Brake Shoes Of Parking Brake

MODEL 906.11 /13 /21 /23 /61 /63 /71 /73
- with REAR AXLE 741.412 /415

MODEL 906.13
- with REAR AXLE 741.417

MODEL 900.63
- with REAR AXLE 741.415

MODEL 8AC906.133 /631 /633 /635
- with REAR AXLE 741.428
- with CODE (ZL3) National version for Latin America

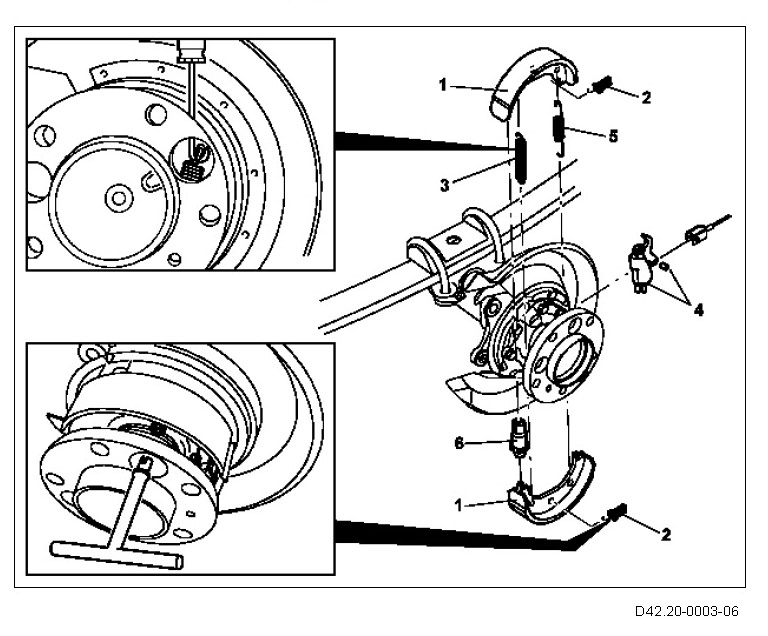

Shown: Model 906.11 with rear axle 741.412






1 Brake shoes
2 Pressure spring
3 Front retracting spring
4 Cable lock
5 Rear retracting spring
6 Brake shoe adjuster











112 589 09 61 00, Installation tool






116 589 01 62 00, Removal and installation tool
