Sliding Door: Service and Repair

AR72.16-D-2210G Disassemble/Assemble Sliding Door

MODEL 900.633
- with CODE (T16) Right load compartment sliding door

MODEL 906.6 /7
- except CODE (T50) Electrical closing assist for right sliding door
- except CODE (T51) Electrical closing assist for left sliding door

MODEL 906.6 /7
- except CODE (T55) Electrical actuation for right sliding door
- except CODE (T56) Electrical actuation for left sliding door

Shown on model 906 with code (D03) Roof and rear-end doors, high version






1 Sliding door
2 End stop
3 Door lock/additional door lock cable (with code (D03) Roof and rear-end doors, high version or code (D05) Super high roof or code (D06) Super high roof to match color of car)
4 Window frame seal
5 Window(s)
6 Middle carriage
7 Screw
8 Cable set
9 Door lock
10 Cable for inside door opener/door lock
11 Cable for inner door lock/door lock
12 Cable for outer door handle/door lock
13 Ram strip
14 Screw
15 End stop
16 Screw
17 Cable for outside door opener/coupling
18 Screw
19 Guide wedge
20 Cable for inside door opener/coupling
21 Screw
22 Door handle bearing
23 Clutch
24 Cap
25 Gasket
26 Screw
27 Screw
28 Gasket

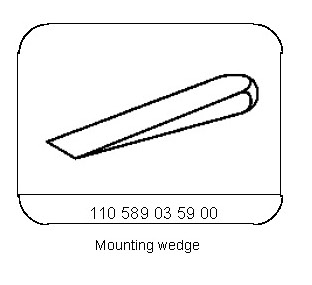

110 589 03 59 00, Mounting wedge
