Left Rear Door Wiper Motor (HDT Left) 3 Way
Left Rear Door Wiper Motor (HDT Left) 3 Way

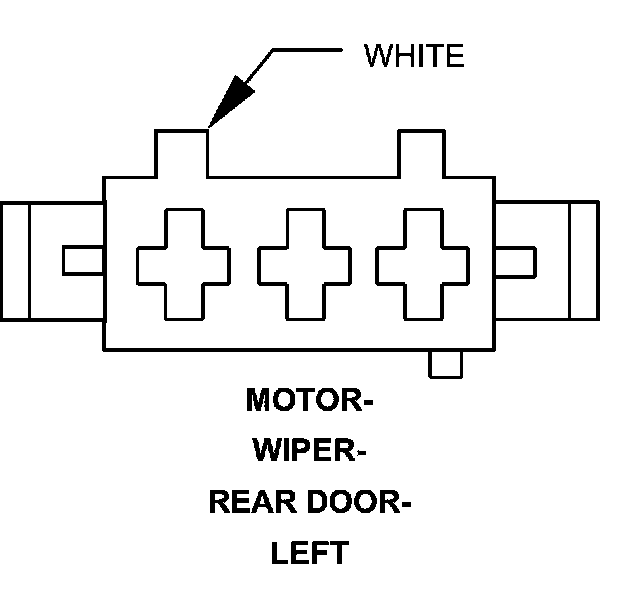

Connector - (HDT LI) 3 WAY

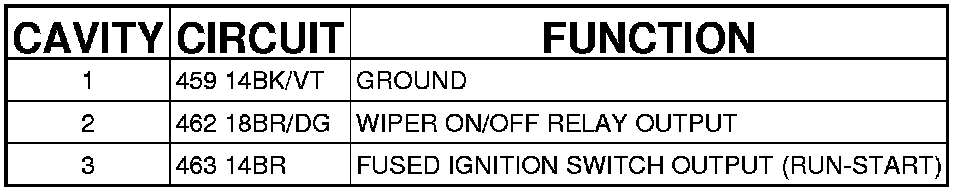

MOTOR-WIPER-REAR DOOR-LEFT - (HDT LI) 3 WAY
