Washer Check Valve - Removal
REMOVAL
1. Unlatch and open the hood panel.

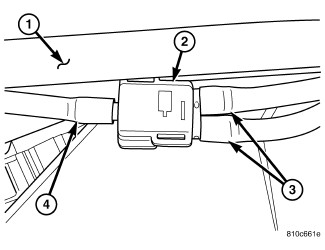

2. Disconnect the washer hoses (3 and 4) from the three barbed nipples of the front check valve unit (2) near the dash panel (1).
3. Remove the check valve from the vehicle.
REMOVAL
1. Unlatch and open the hood panel.
2. Disconnect the washer hoses (3 and 4) from the three barbed nipples of the front check valve unit (2) near the dash panel (1).
3. Remove the check valve from the vehicle.
