Windshield - Removal

REMOVAL










1. Remove wiper arms.
2. Remove headliner.
3. Remove rear view mirror.

CAUTION: Cover instrument panel and vents to protect against splinters and damage.

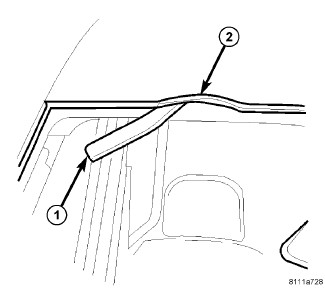

4. Using a trim stick C-4755 or equivalent, remove windshield seal.










CAUTION: Fabricate a protection guard from 2 mm sheet plastic or equivalent to protect rubber instrument panel from damage.

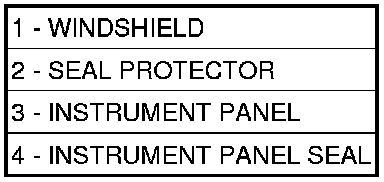

5. Place protection guard between windshield and instrument panel seal.

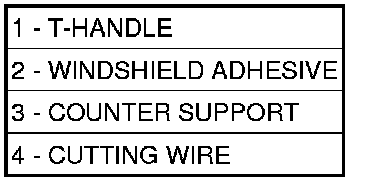

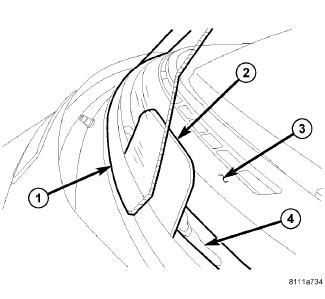

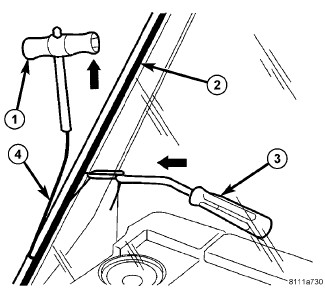

6. Using a windshield cut-out wire separate the adhesive.

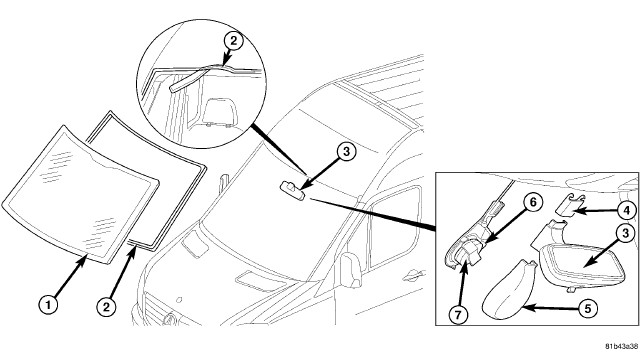

7. Carefully remove windshield (1).
