Left Rear Vent Window Motor (DLS) 2 Way
Left Rear Vent Window Motor (DLS) 2 Way

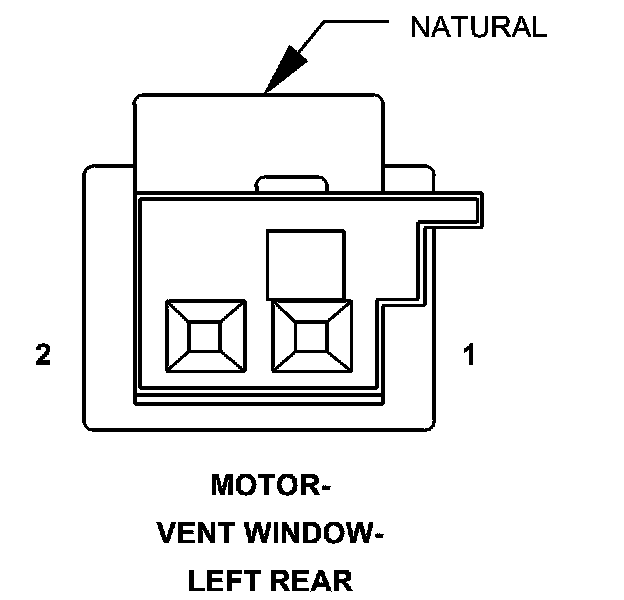

Connector - (DLS) 2 WAY

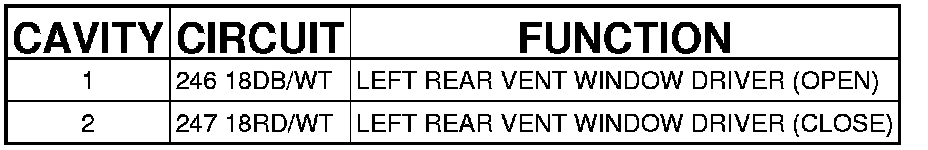

MOTOR-VENT WINDOW-LEFT REAR - (DLS) 2 WAY
