Electric Heated Windshield 1 C2 (HLS) 1 Way

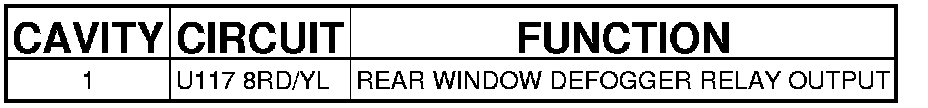

Connector C2 - (HLS) 1 WAY

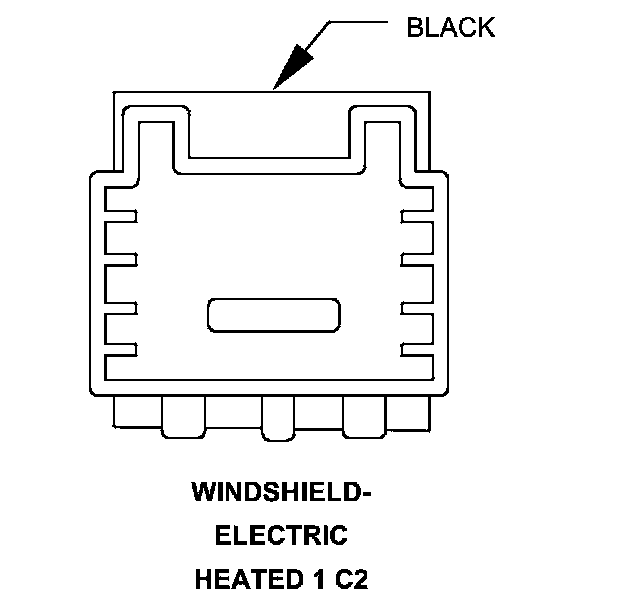

WINDSHIELD-ELECTRIC HEATED 1 - (HLS) 1 WAY
