Drive Shaft - Removal

REMOVAL

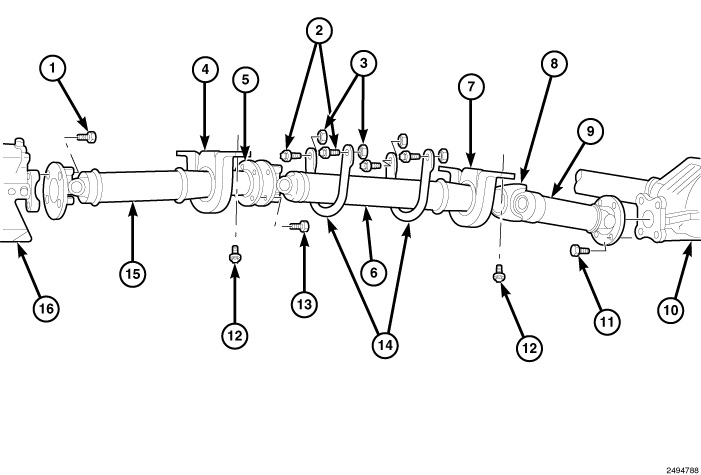

NOTE: 3 piece shaft shown, 2 piece shaft typical.

1. Secure vehicle to prevent it from rolling.

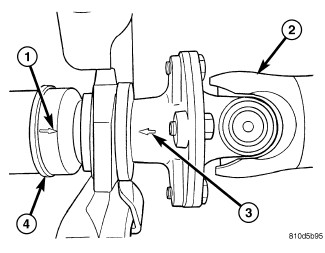

2. Make installing reference marks (1, 3) on front propeller shaft section.

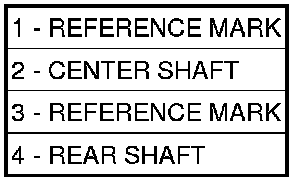

3. Make installing reference marks (1, 3) on rear propeller shaft section.










NOTE: 3 piece shaft shown, 2 piece shaft typical.

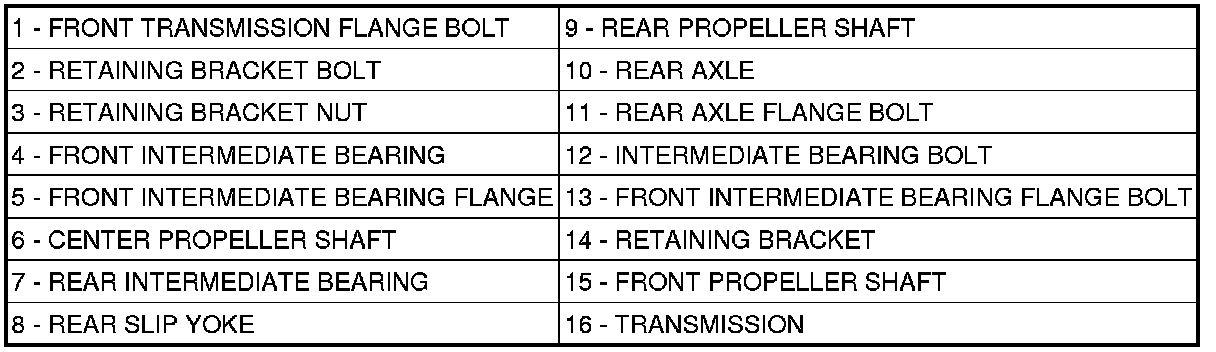

4. Remove front intermediate bearing flange bolts (13).
5. Remove rear axle flange bolts (11).
6. Remove rear intermediate bearing bolts (12).
7. Slide center and rear propeller shaft assembly rearward and remove.
8. Remove front transmission flange bolts (1).
9. Remove front intermediate bearing bolts (12).
10. Remove shaft from the vehicle.
