Shift Cable - Installation

INSTALLATION

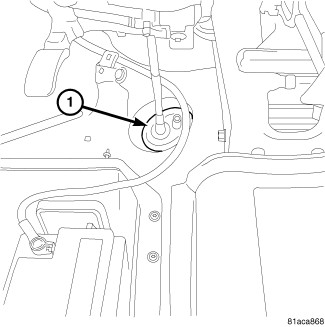

1. Install the shift cable into the floor pan and seat the grommet (1).










2. Raise and support the vehicle.
3. Install the shift cable (1) to the transmission.
a. Push shift cable onto the transmission shift lever (2) ball socket.
b. Latch ball socket latch of cable.
c. Clip shift cable retainer into retainer bracket.










4. Install the shift cable heat shield and screws. Tighten the screws to 4 Nm (35 in.lbs.)
5. Lower vehicle.










6. Install the transmission shift cable onto the ball knob (2) at the SLA.
7. Install the shift cable retaining clip (1).










8. Install the shift lever assemble mounting bolts (1). Tighten the bolts to 6 Nm (53 in.lbs.).
9. Install the bottom section of the center section of instrument panel.
10. Install the top section of the center section of instrument panel.
11. Verify repair.
