Diagnostic Junction Block 25 C1 (CLS) 2 Way
Diagnostic Junction Block 25 C1 (CLS) 2 Way

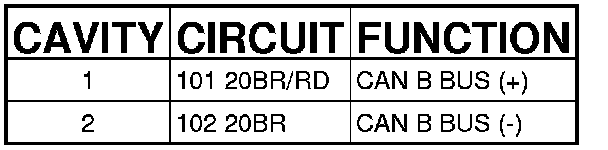

Connector C1 - (CLS) 2 WAY

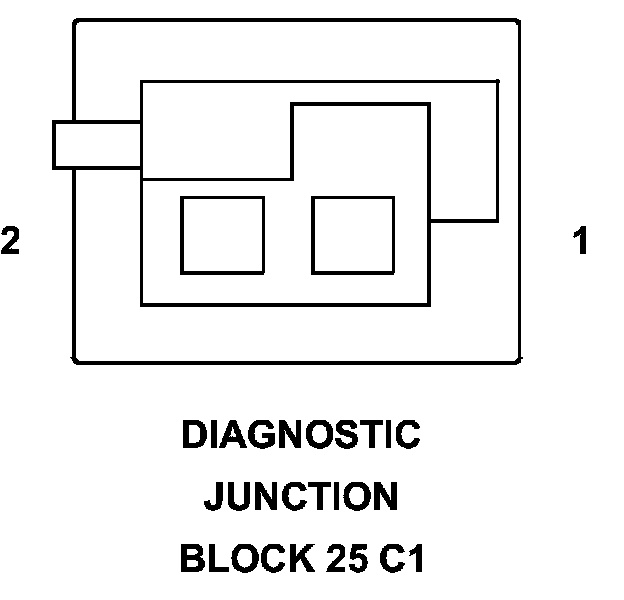

DIAGNOSTIC JUNCTION BLOCK 25 - (CLS) 2 WAY
