Engine - Specifications






ENGINE SPECIFICATIONS

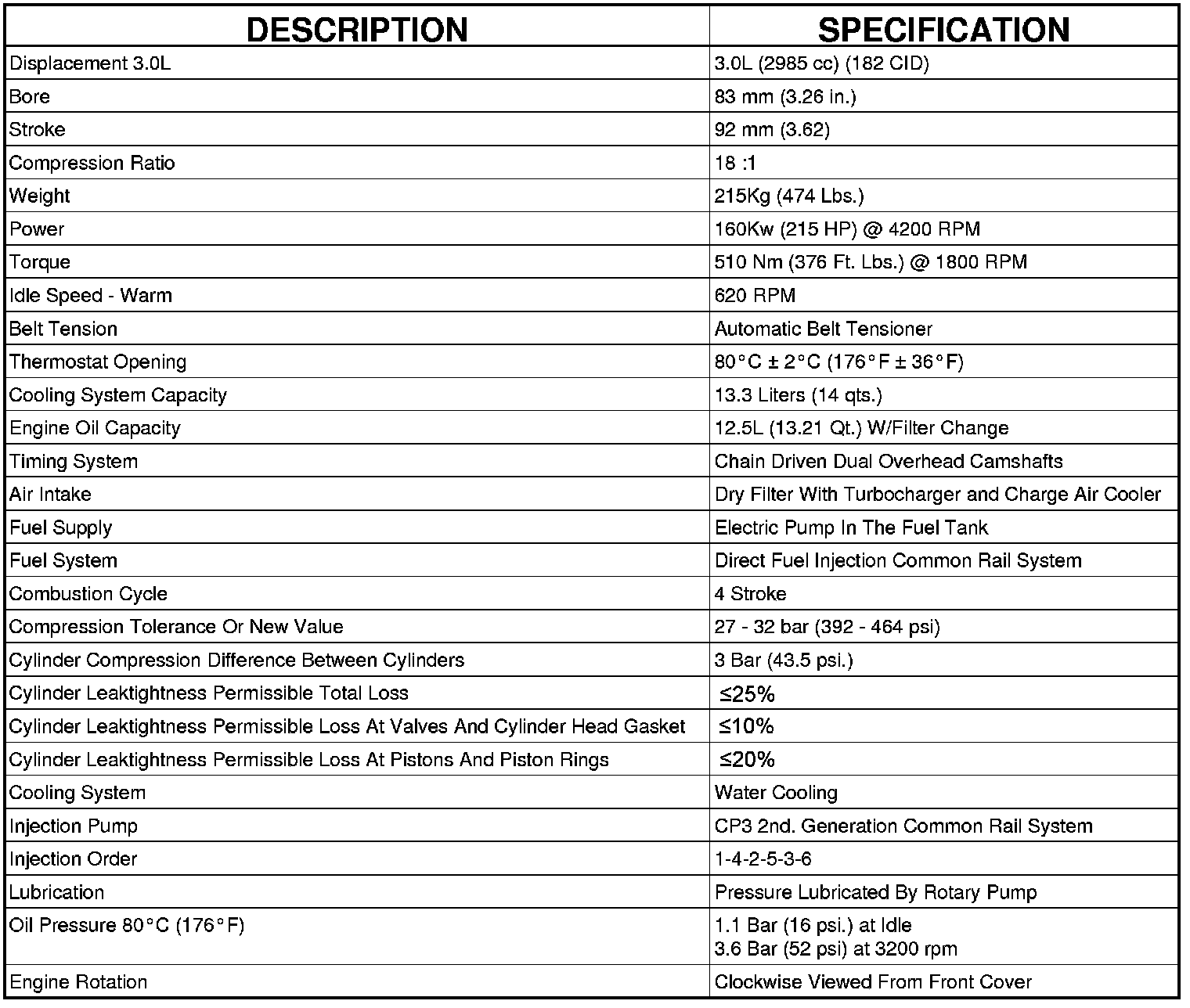

GENERAL DESCRIPTION

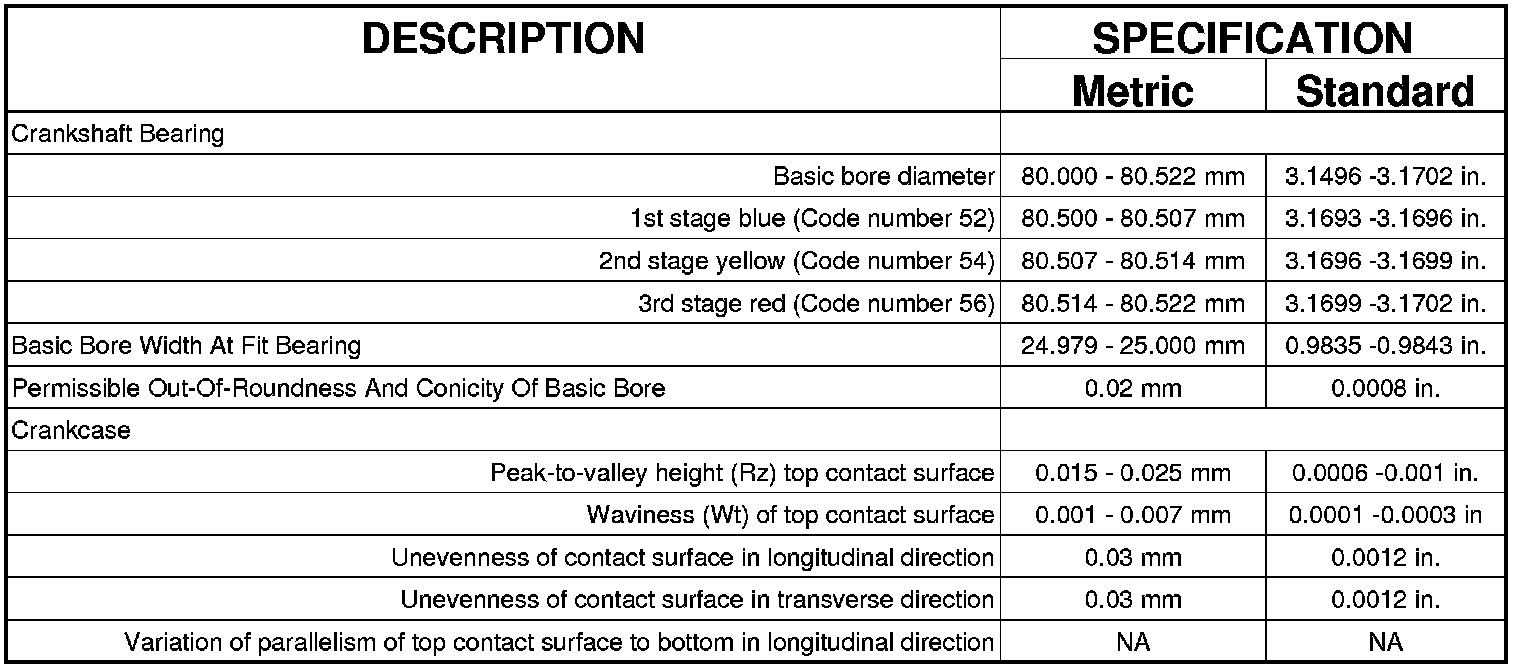

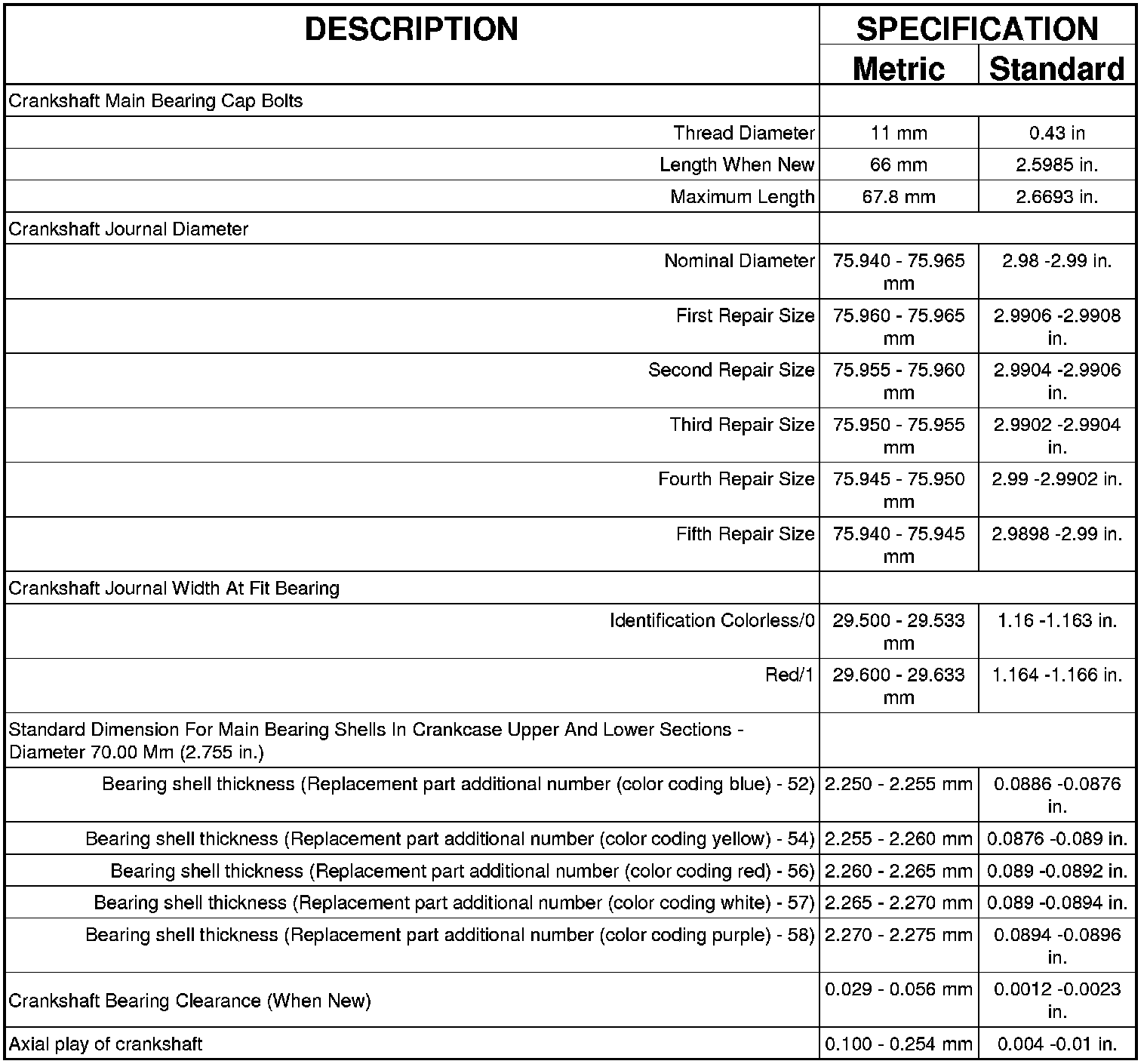

CRANKSHAFT

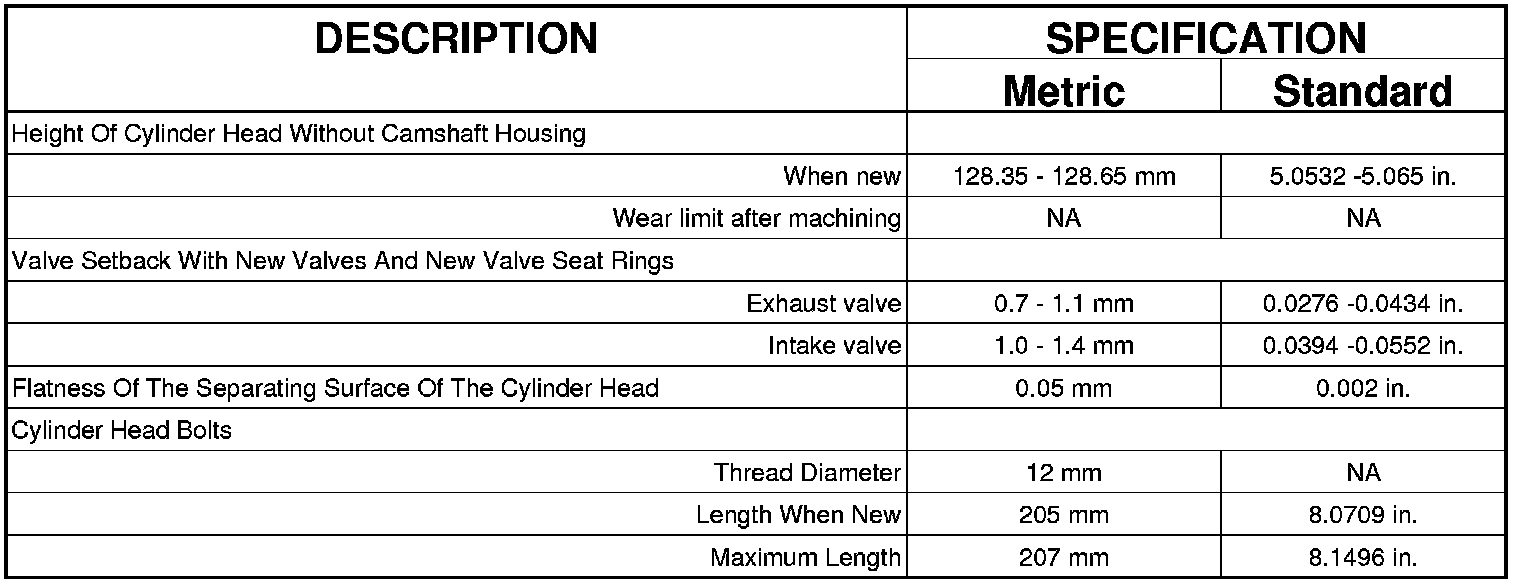

CYLINDER HEAD

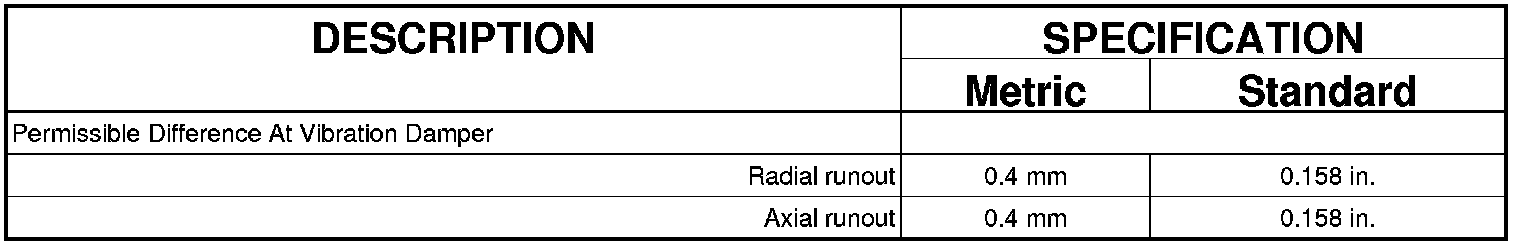

VIBRATION DAMPER

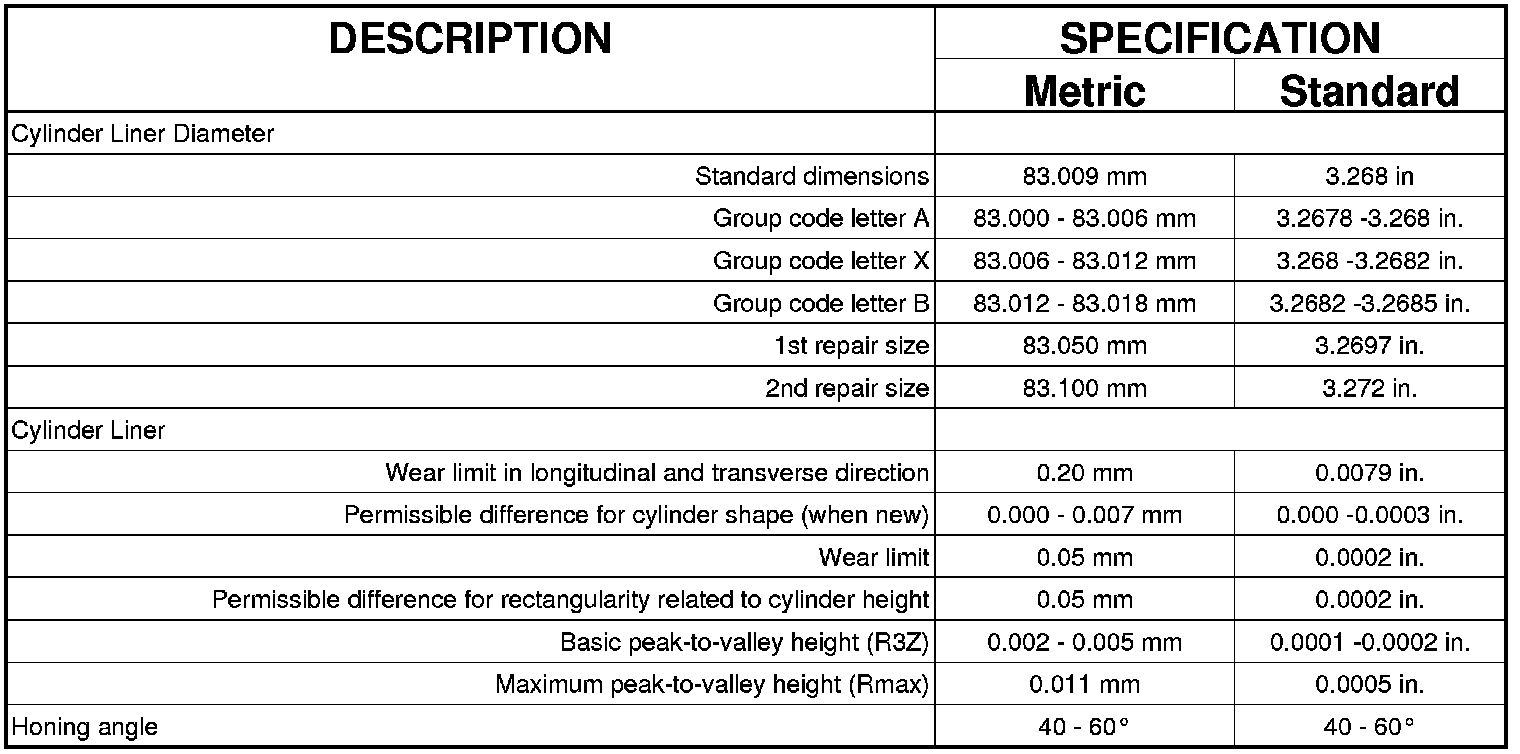

CYLINDER BORE






CRANKCASE

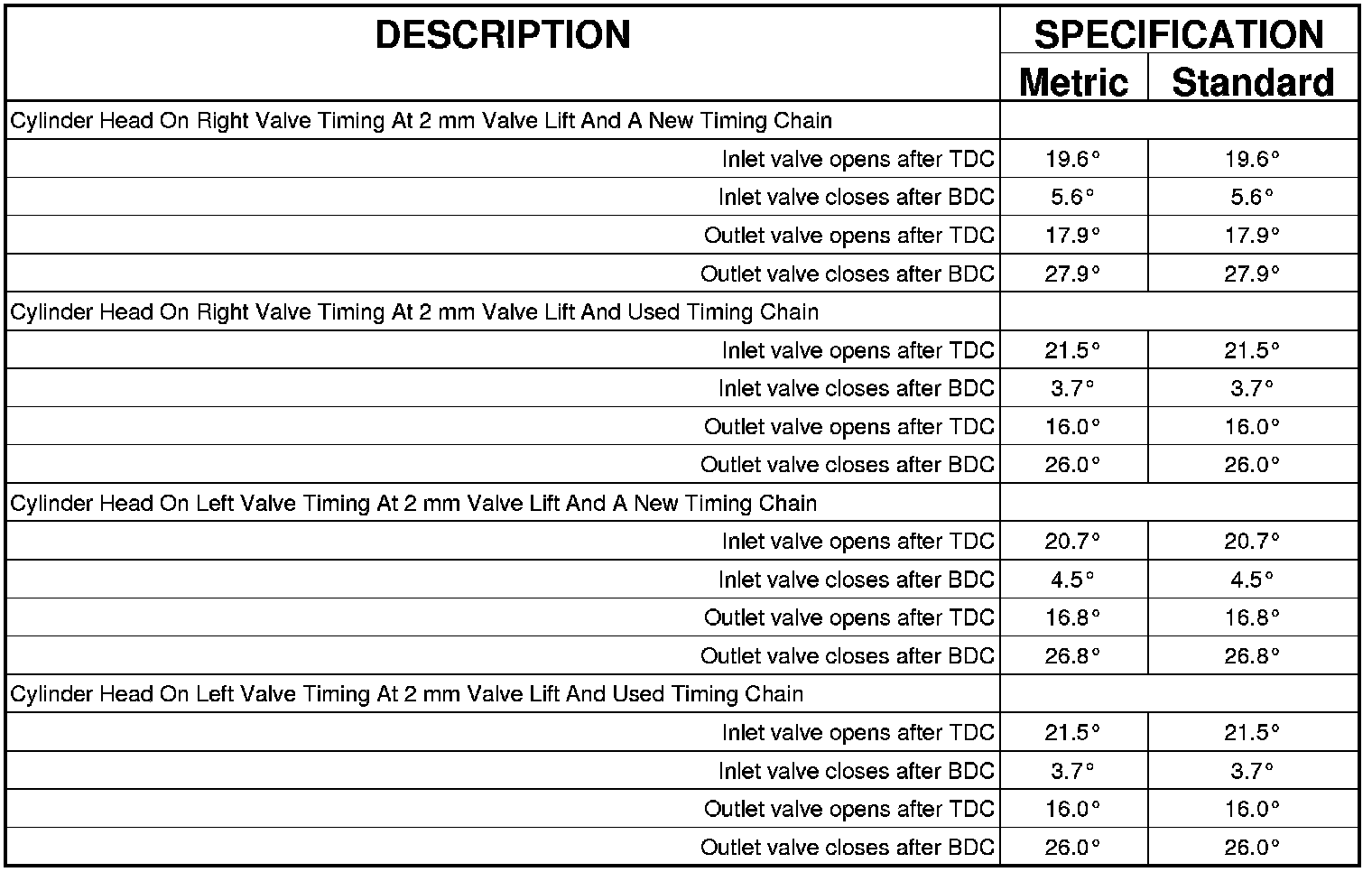

CAMSHAFT

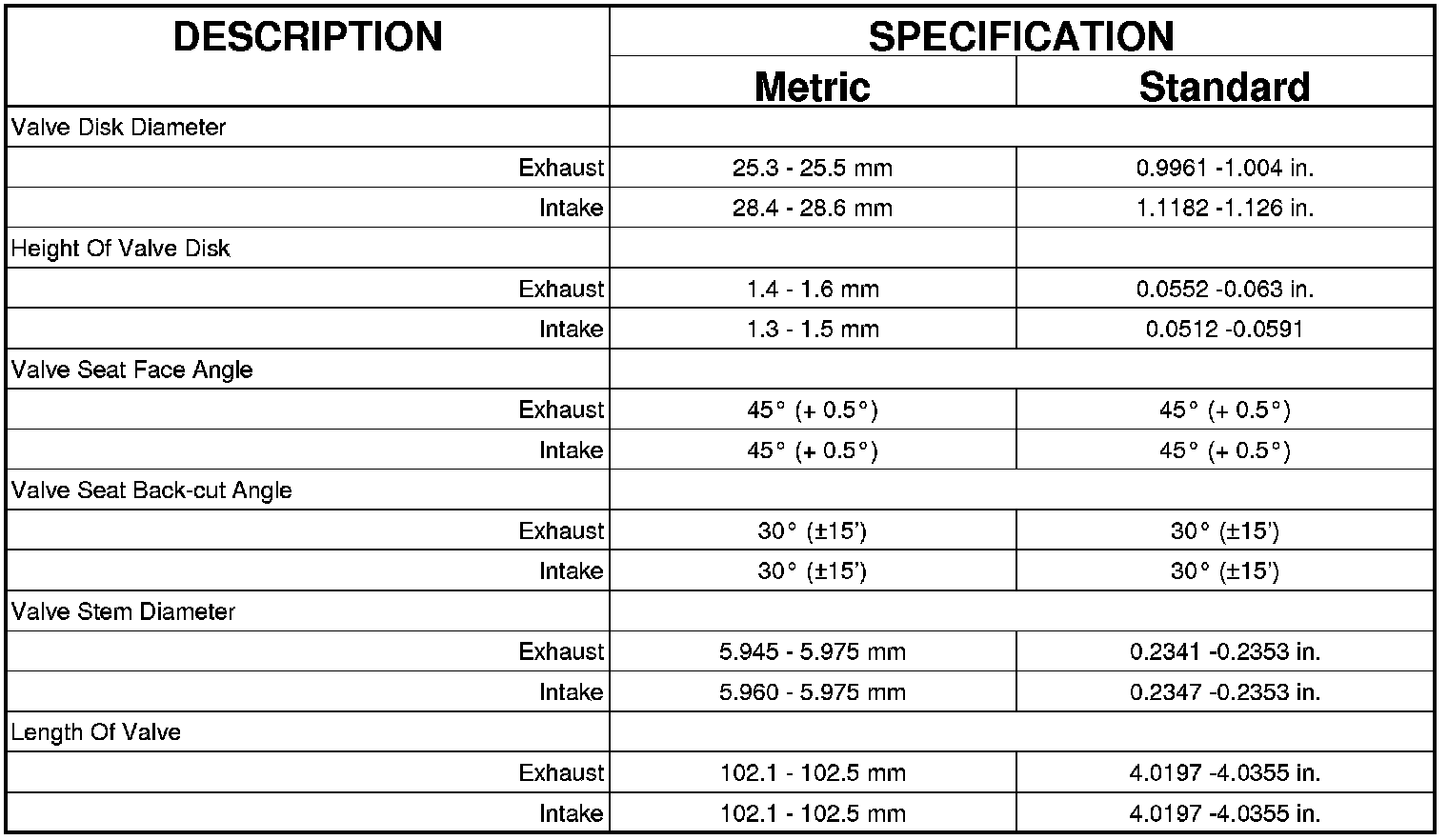

VALVES

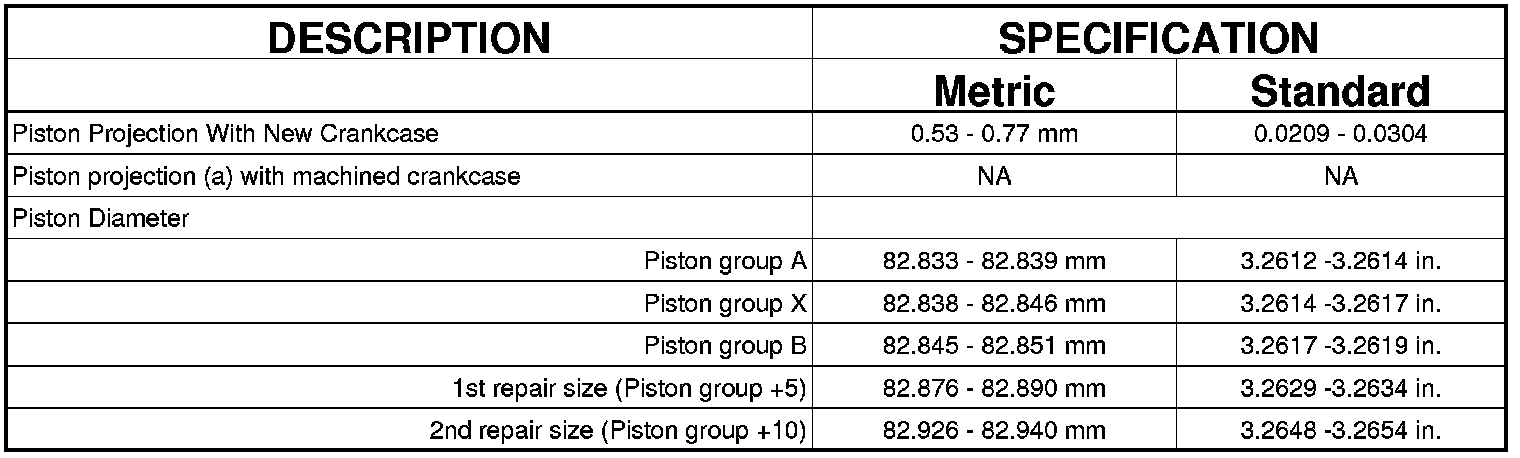

PISTONS

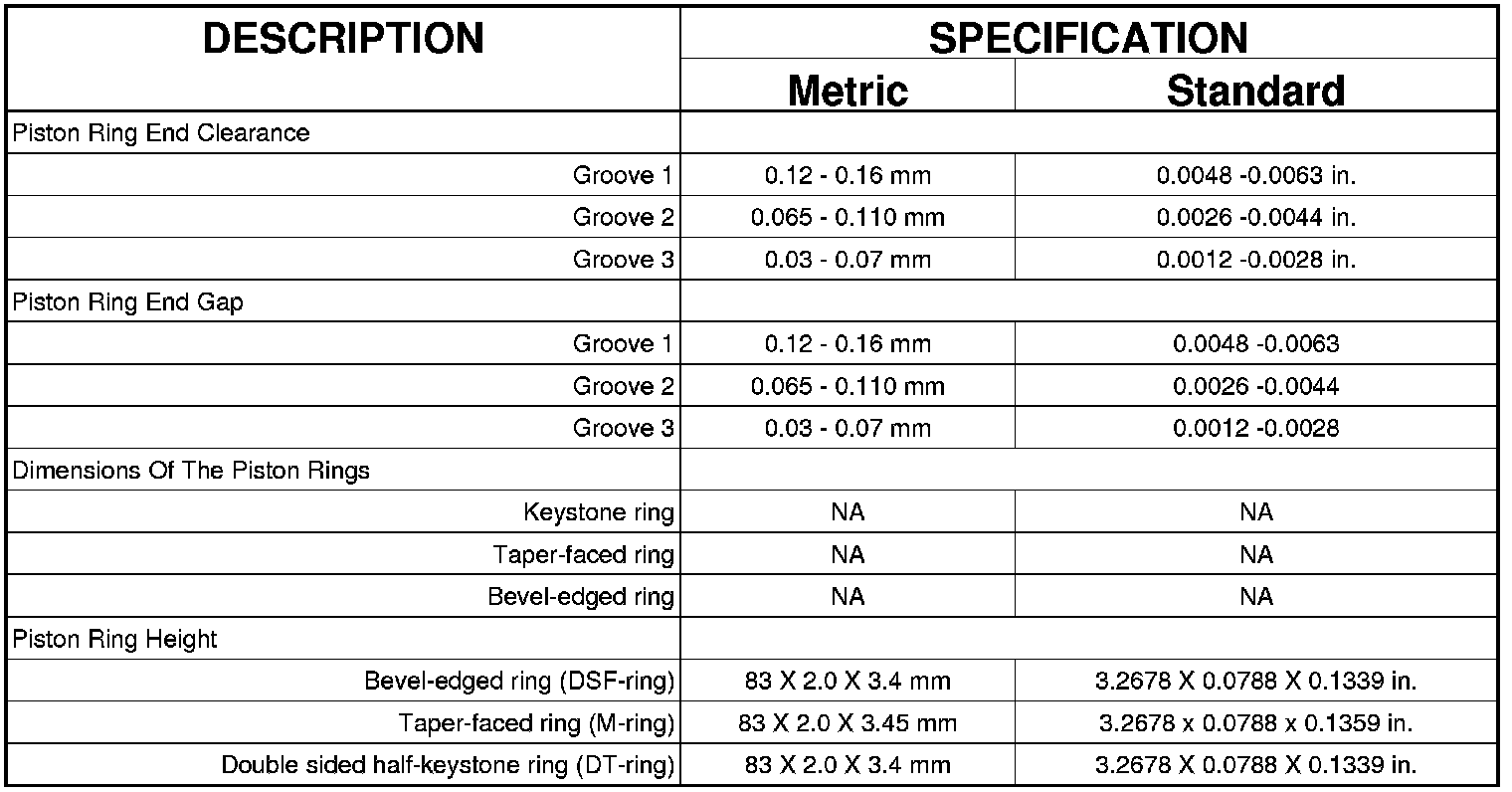

PISTON RINGS

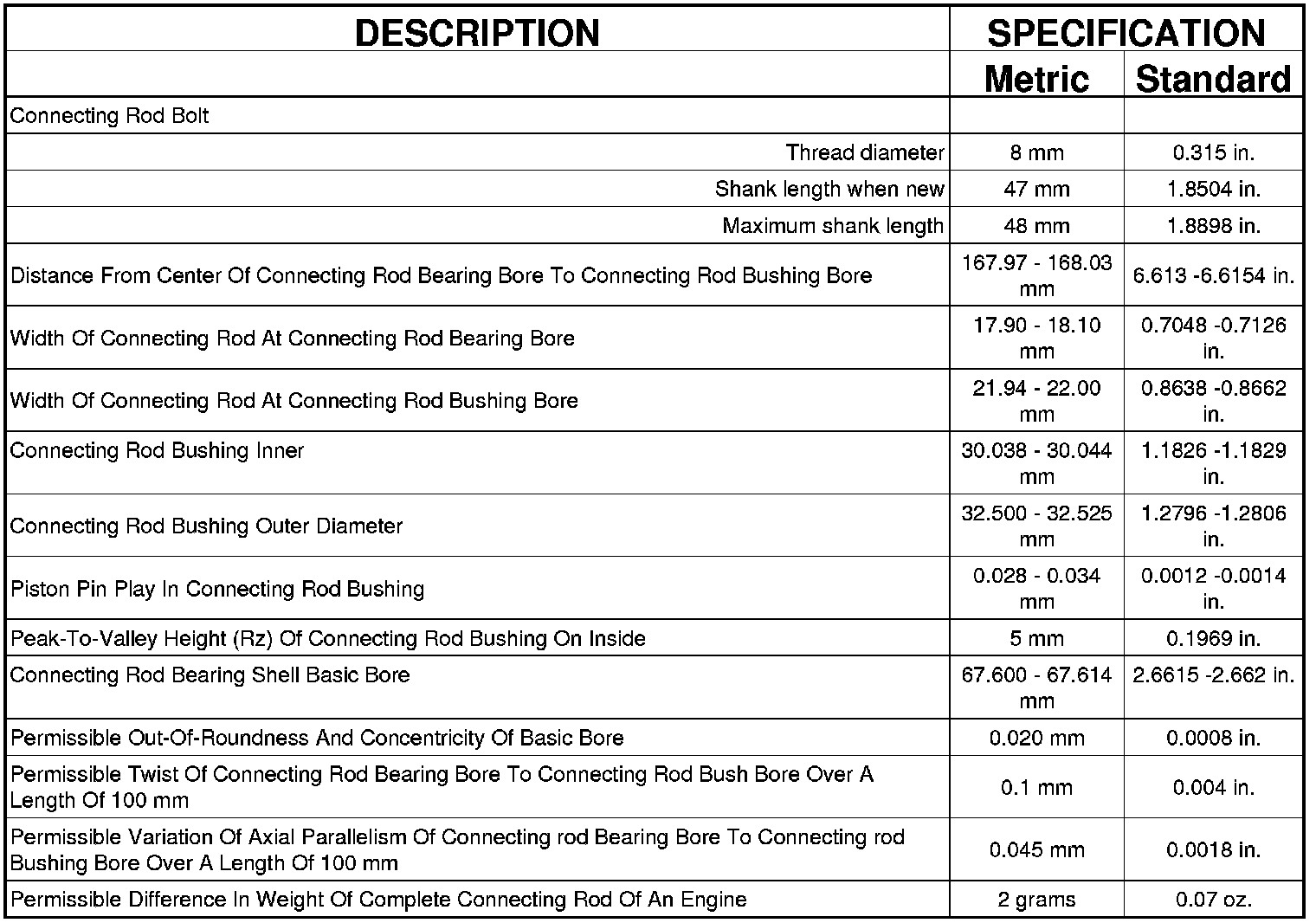

CONNECTING RODS
