Passenger Power Window Switch (BFT) 8 Way

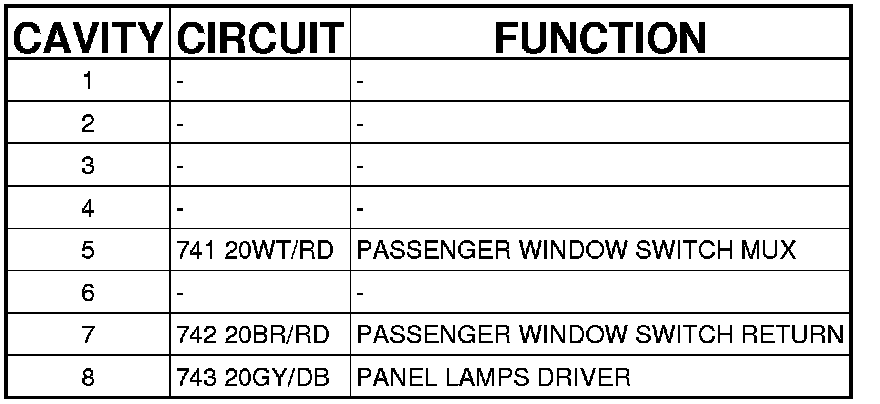

Connector - (BFT) 8 WAY

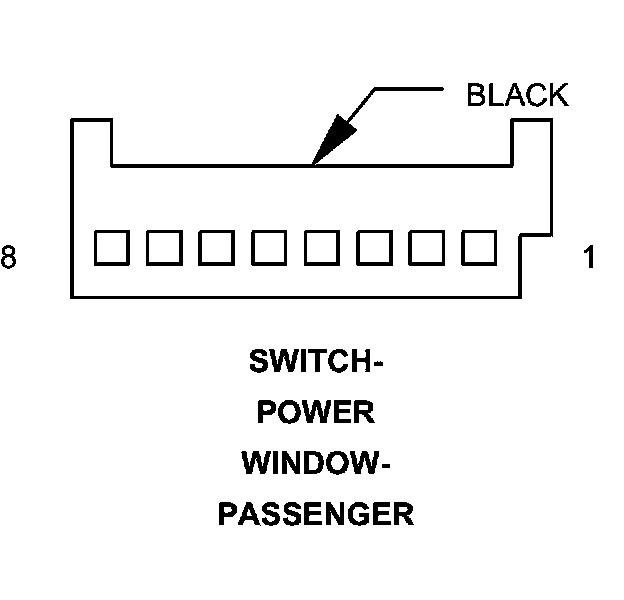

SWITCH-POWER WINDOW-PASSENGER - (BFT) 8 WAY
