Impact Sensor
>>
Diagrams
>>
Left Side Impact Sensor 2 (FT) 3 Way
Left Side Impact Sensor 2 (FT) 3 Way

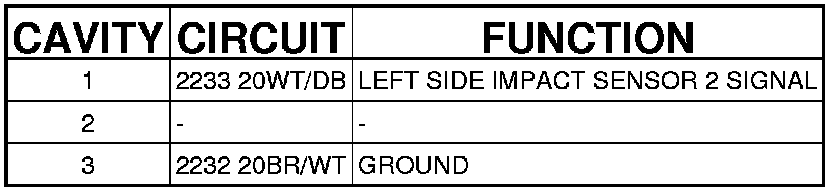

Connector - (FT) 3 WAY

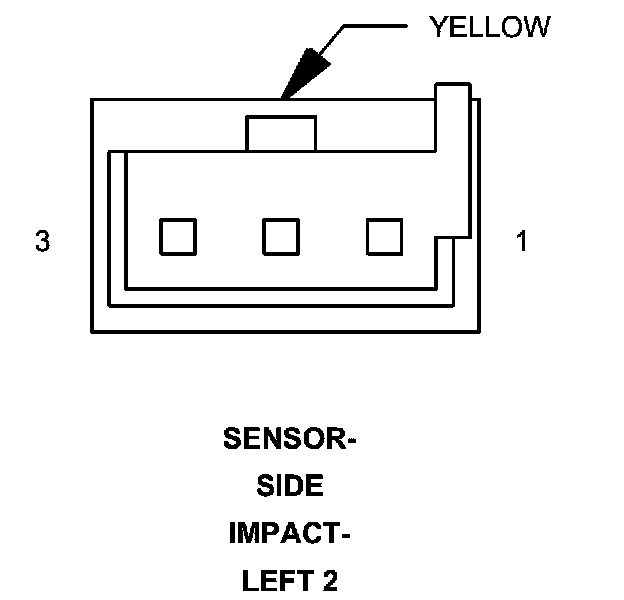

SENSOR-SIDE IMPACT-LEFT 2 - (FT) 3 WAY
