Fuel Temperature Sensor: Diagrams

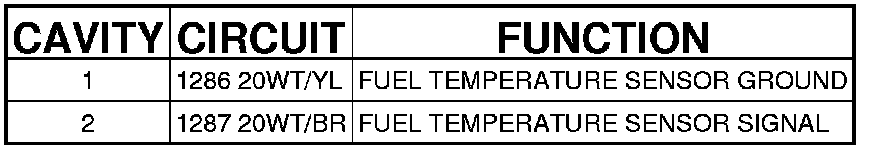

Connector (DIESEL) - (OM642) 2 WAY

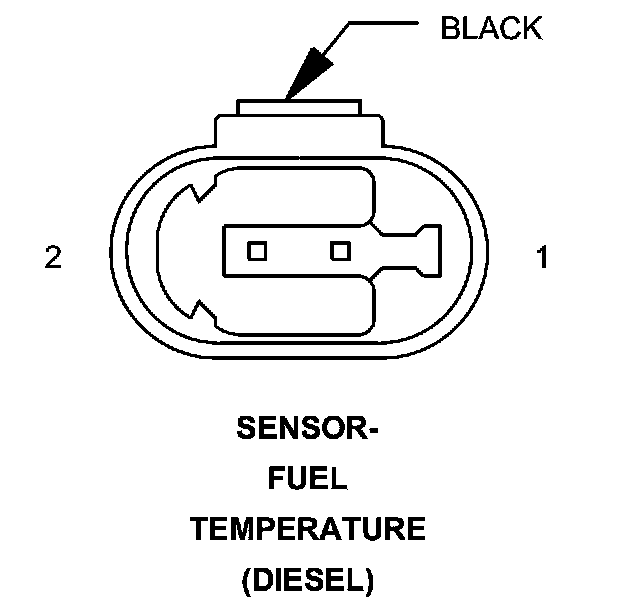

SENSOR-FUEL TEMPERATURE (DIESEL) - (OM642) 2 WAY
