Removal

REMOVAL

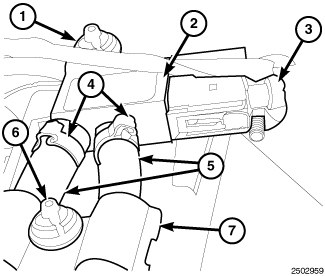

1. Disconnect the negative battery cable.
2. Disconnect the differential pressure harness connector (3).
3. Remove the nut (6) and bracket (7).
4. Remove the nut (1) securing the differential sensor (2).
5. Remove clamps (4), hoses (5) and the differential pressure sensor (2).
.
